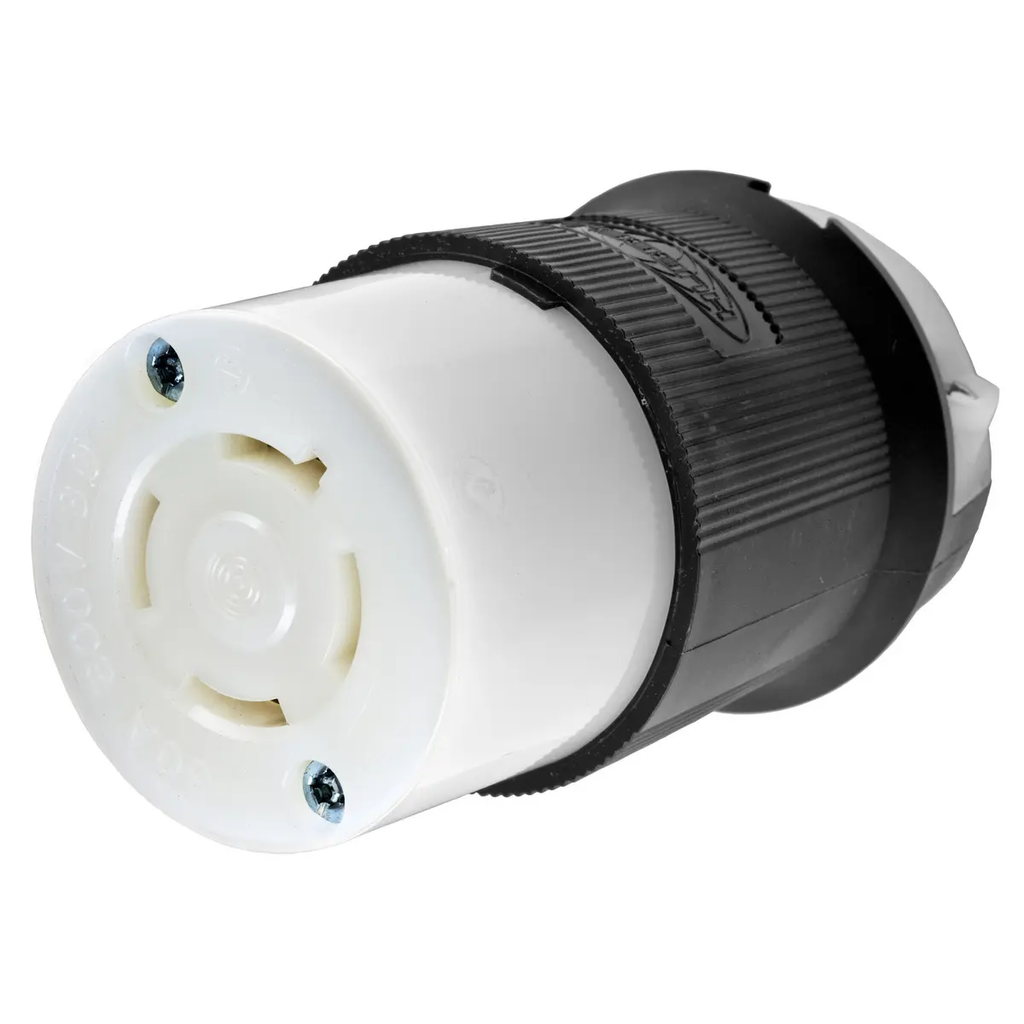

HBL2743 - Hubbell 30A 600VAC 3-Pole 4-Wire Twist-Lock® Insulgrip® Industrial Female Connector, Cord Mounted, L17-30R

HBL2743

HBL2743 is a 30 amp, 600 VAC, 3-pole, 4-wire grounding industrial female Twist-Lock® connector by Hubbell, designed for heavy-duty applications.This connector features a durable nylon Insulgrip® body, cord-mounted design, and pressure terminal screw connections. It supports wire sizes from #16 AWG to #8 AWG and cable diameters from 0.350 to 1.150 inches. Rated for three-phase 600 VAC service with a NEMA L17-30R configuration, it operates reliably in temperatures from -40°C to 85°C. Certified to UL 498 and compliant with NEMA WD-1 and WD-5 standards, it is suitable for indoor dry environments.

Key Specifications
• Amperage Rating: 30 A
• Voltage Rating: 600 VAC, 3 Phase
• Number of Poles: 3
• Number of Wires: 4 (including ground)
• Wire Size Range: #16 AWG to #8 AWG
• Cable Diameter Range: 0.350 - 1.150 inches
• Mounting Type: Cord Mounted
• Material: Nylon Insulgrip®
• Connection Type: Pressure Terminal Screws
• NEMA Configuration: L17-30R
• Operating Temperature: -40°C to 85°C
• Certifications: UL 498, NEMA WD-1, WD-5, RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HBL2743
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Twist-Lock
• Voltage : 600 600



Product Data

• UPC : 783585039398
• GTIN : 783585039398
• Dimensions : 2.33 x 2.33 x 3.86 in 3.84 in L x 2.22 in W
• Weight : 5.19
