Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Hubbell
- Sub-Category
- Twist-Lock
- Rated current
- 30
- Voltage
- 480 480V
- Poles
- 3
- UPC
- 783585039350
- GTIN
- 00783585039350
- Dimensions
- 2.23 in Dia x 2.27 in L 3.06 x 3.06 x 2.27 3.06 x 3.06 x 2.27 in
- Weight
- 0.3
Product description & additional details

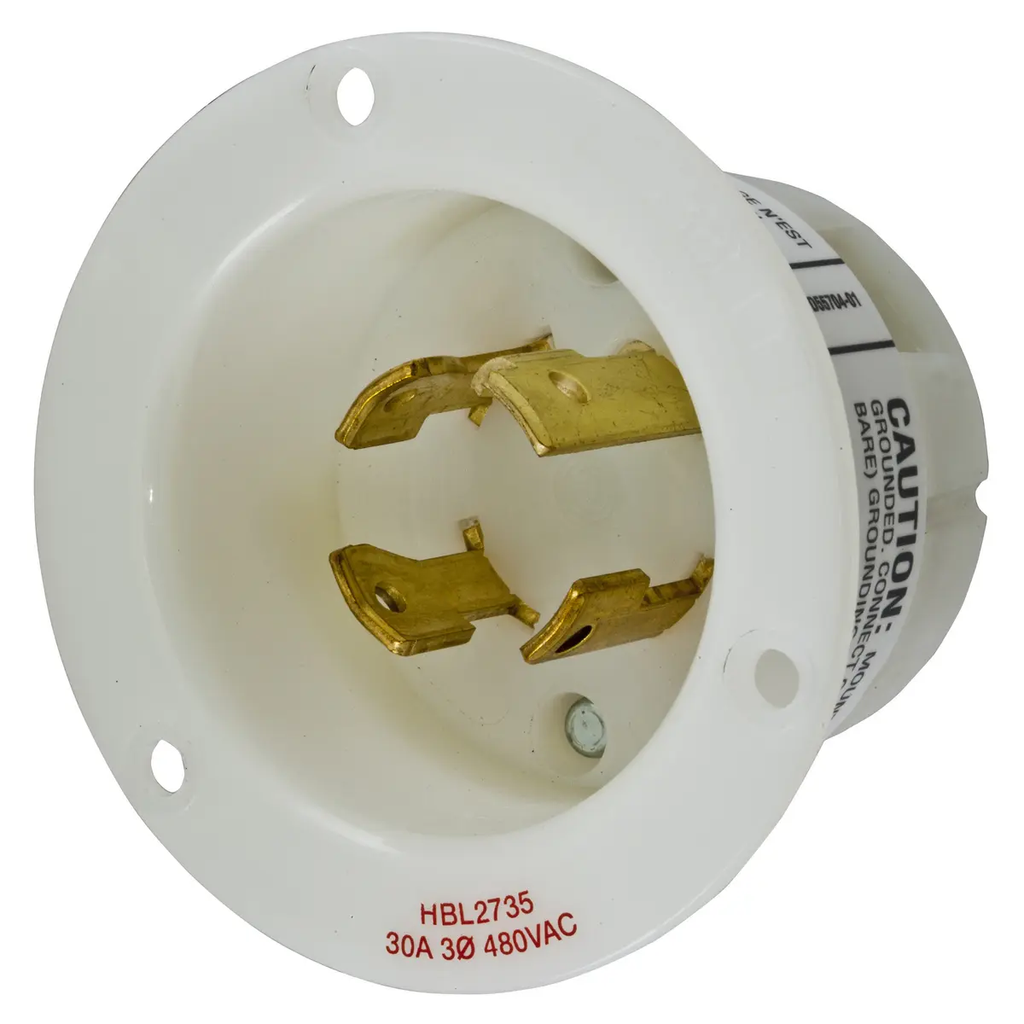

HBL2735
HBL2735 is a 30 amp, 3-pole, 4-wire grounding twist-lock flanged inlet designed for industrial power connections.This Hubbell flanged inlet features a 3-phase 480V AC voltage rating with a NEMA L16-30P configuration. It is constructed with a durable white nylon housing and brass blades, offering corrosion resistance and reliable electrical conductivity. The device includes back wired screw terminals with steel-nickel plated terminal clamps and supports wire sizes from #16 AWG to #8 AWG. It is rated for continuous operation up to 75°C and withstands dielectric strength of 2000V minimum. The mounting type is screw mount, ensuring secure installation.
- Key Specifications
- Amperage: 30 A
- Voltage: 3 Phase 480V AC
- Poles: 3-Pole
- Wiring: 4-Wire Grounding
- NEMA Configuration: L16-30P
- Material: White Nylon housing, Brass blades
- Terminal Type: Back wired screw terminals
- Terminal Clamp: 0.08 in steel-nickel plated
- Wire Size Range: #16 AWG to #8 AWG
- Mounting: Screw Mount
- Dielectric Strength: 2000V minimum
- Operating Temperature: -40°C to 75°C continuous
Specifications
- Part Number: HBL2735
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Voltage : 480 480
- Amperage : 30
- Poles : 3
Product Data
- UPC : 783585039350
- GTIN : 00783585039350
- Dimensions : 2.23 in Dia x 2.27 in L 3.06 x 3.06 x 2.27 3.06 x 3.06 x 2.27 in
- Weight : 0.3
