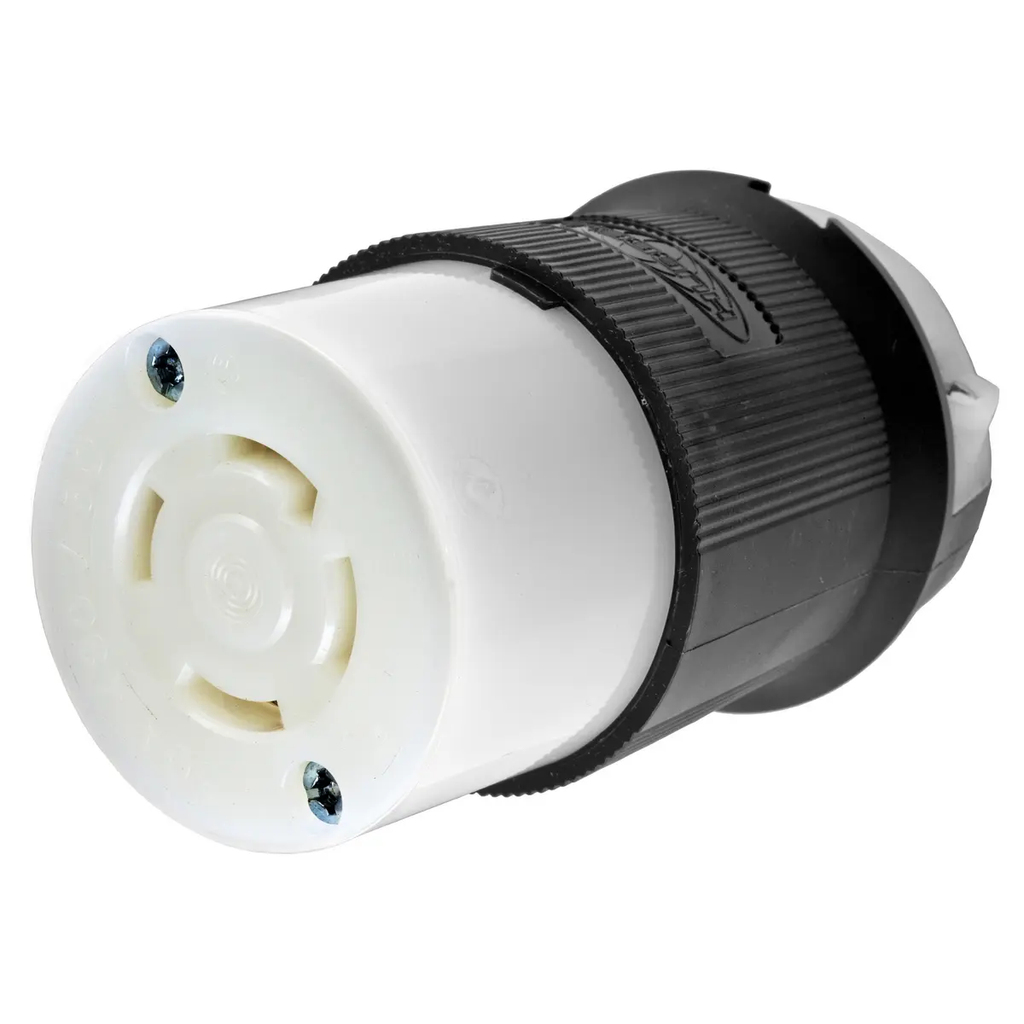

HBL2733 - Hubbell 30A 3-Pole 4-Wire Grounding Twist-Lock Connector Body L16-30R 480V AC Nylon Cord Mounted

HBL2733

HBL2733 is a 30 amp, 3-pole, 4-wire grounding twist-lock connector body designed for industrial power connections.This Hubbell Insulgrip® connector features a durable nylon body with screw pressure terminal connections, suitable for 3-phase 480V AC applications. It supports wire sizes from #16 AWG to #8 AWG stranded copper wire and is rated for indoor dry environments unless otherwise protected. The connector meets NEMA L16-30R standards and withstands a dielectric voltage of 2,000V minimum. Operating temperature ranges from -40°C to 75°C continuous without impact.

Key Specifications
• Amperage Rating: 30 A
• Voltage Rating: 3-Phase 480 VAC
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire Grounding
• Connector Type: Twist-Lock Connector Body
• Material: Nylon
• Mounting Type: Cord Mounted
• Terminal Type: Pressure Terminal Screws
• Wire Size Range: #16 AWG to #8 AWG stranded copper
• Standards: NEMA L16-30R, UL 498 Terminal Identification
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40°C to 75°C continuous

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL2733
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Twist-Lock
• Family : HBL
• Voltage : 480 480

Product Data

• UPC : 783585039336
• GTIN : 00783585039336
• Dimensions : 2.33 x 2.33 x 3.86 2.33 x 2.33 x 3.86 in 3.84 in L x 2.22 in W
• Weight : 0.5
