Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL2731

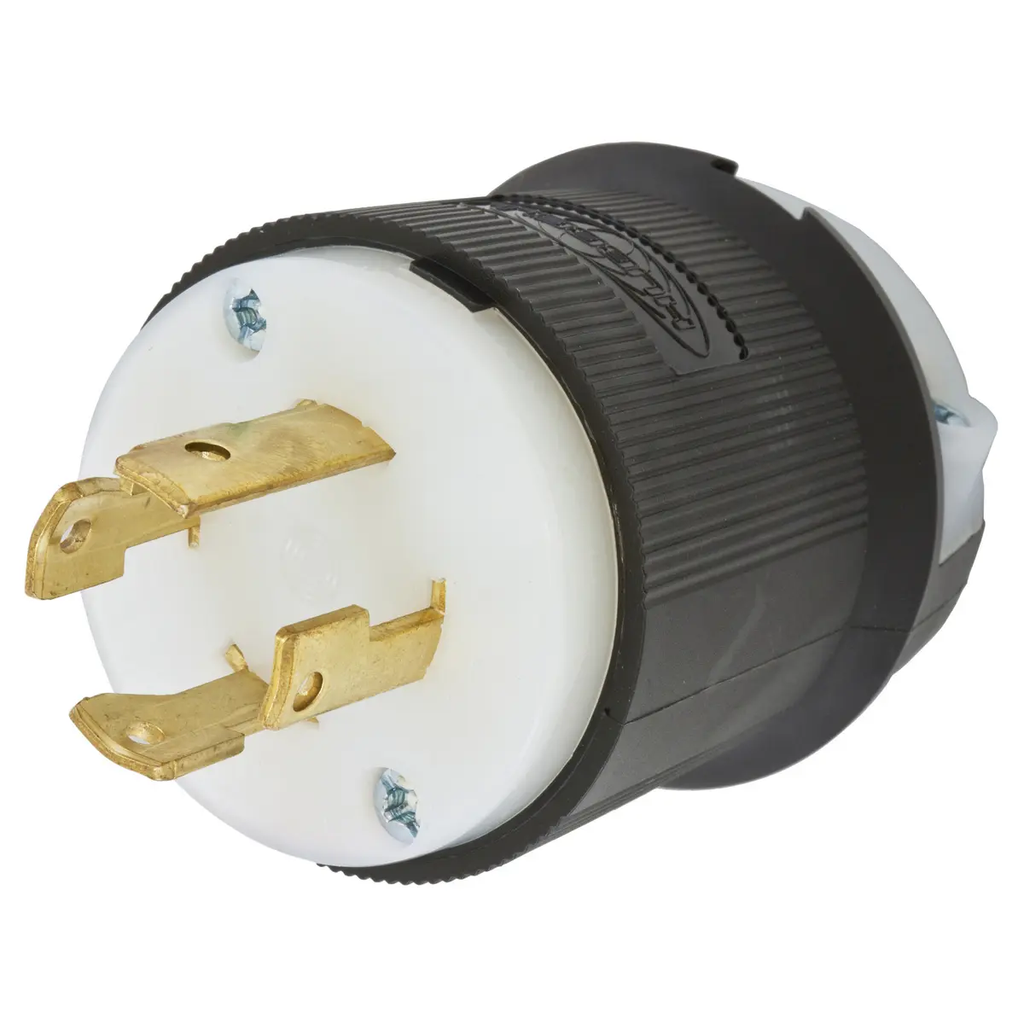

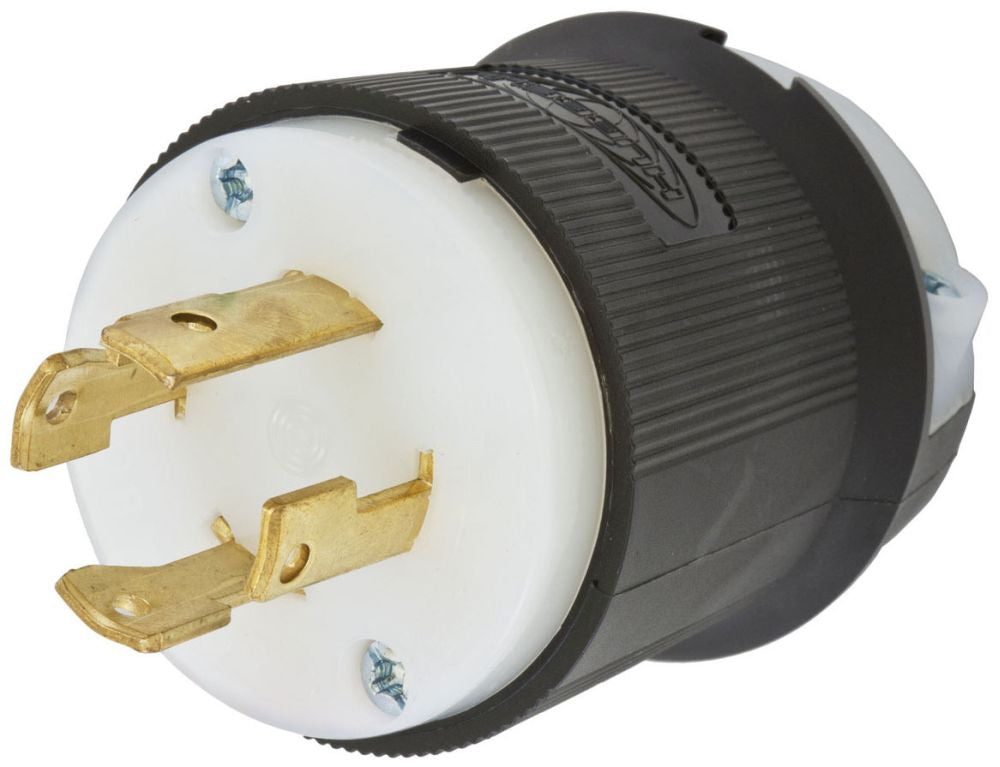

HBL2731 is a Hubbell Insulgrip locking plug designed for industrial applications requiring a secure, twist-lock connection. This plug features a 3-pole, 4-wire grounding configuration and is rated for 30A at 480V AC, making it ideal for three-phase power distribution systems. The HBL2731 is constructed with a ribbed nylon housing for impact and chemical resistance, and includes a superior cord grip design to protect terminations from strain. It is cord-mounted and features pressure terminal screws for easy installation. The plug is suitable for indoor dry environments unless protected by additional means and is listed to UL 498 and CSA C22.2 No. 42 standards.
- Amperage Rating: 30A
- Voltage Rating: 3 Phase 480V AC
- Poles: 3 Pole
- Wires: 4 Wire Grounding
- Mounting Type: Cord Mount
- NEMA Configuration: L16-30P
- Series: Insulgrip
- Terminal Accommodation: #16 AWG to #8 AWG stranded copper wire
- Dielectric Strength: 2,000V minimum
- Operating Temperature: -40°C to 75°C
- Standards: UL 498, CSA C22.2 No. 42
- Color: Black and White
Specifications
- Part Number: HBL2731
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Family : HBL
- Voltage : 480 480
Product Data
- UPC : 783585039312
- GTIN : 00783585039312
- Dimensions : 2.33 in Dia x 2.75 in L 2.33 x 2.33 x 2.75 2.33 x 2.33 x 2.75 in
- Weight : 5.19
