Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL2723SW

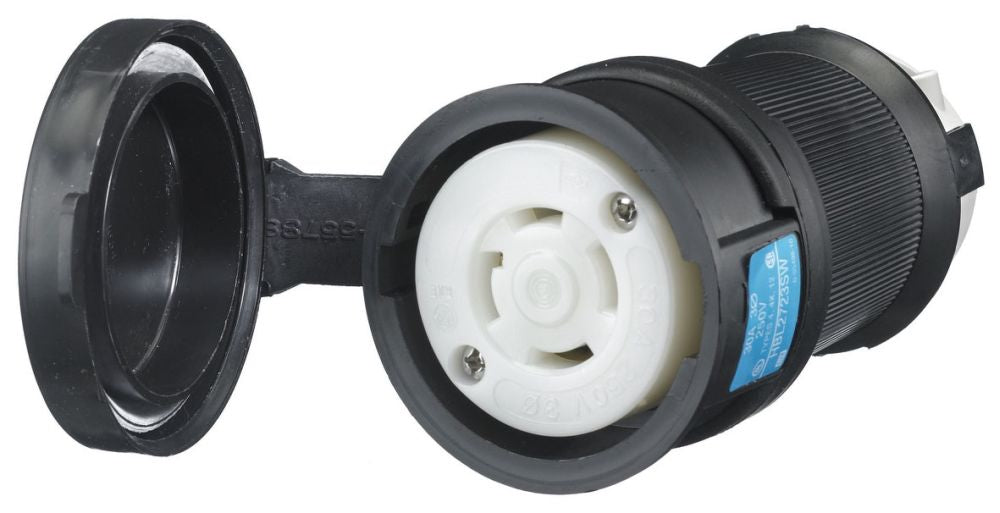

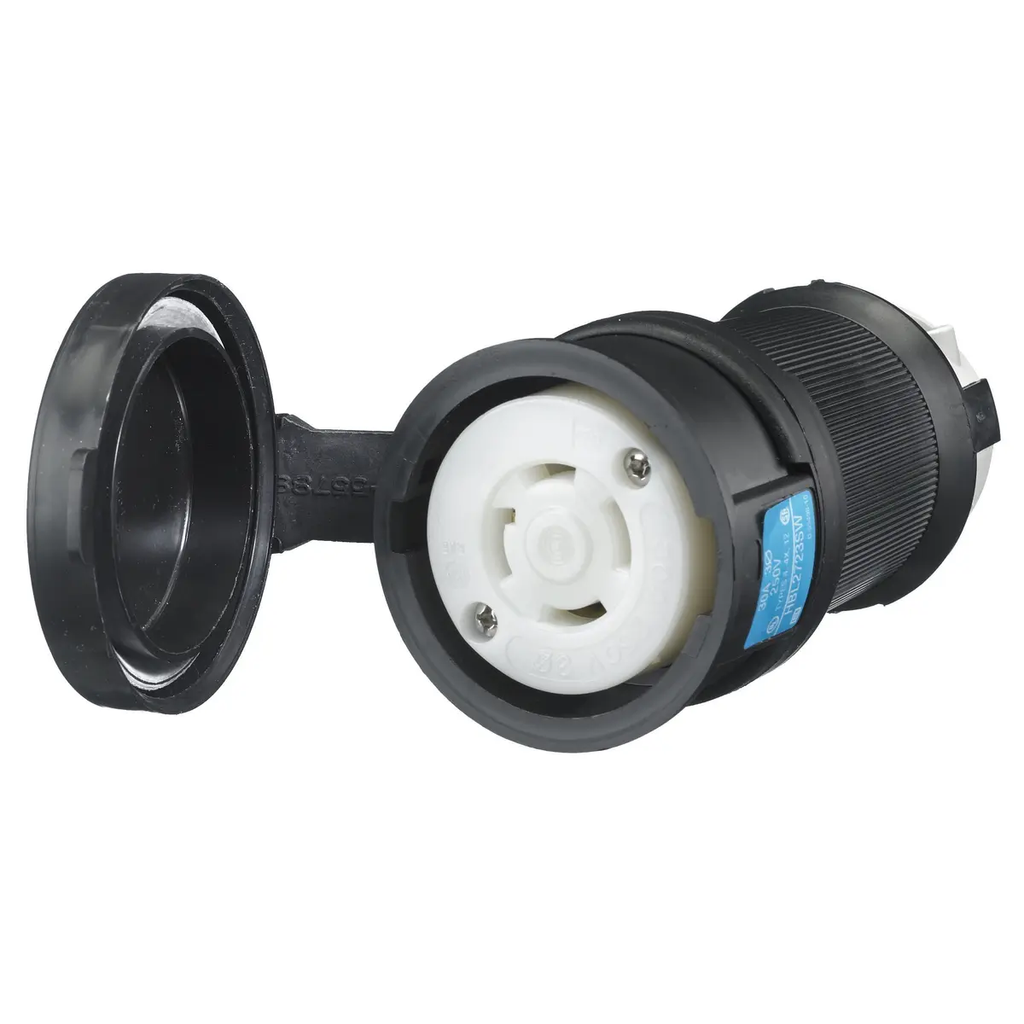

HBL2723SW is a 30 amp, 250 volt, 3-pole watertight safety-shroud twist-lock connector body by Hubbell.
This connector features a durable composite insulated body with a watertight design suitable for harsh environments. It supports 3-phase, 4-wire configurations with a cable range of 0.350 to 1.150 inches and wire sizes from #16 AWG to #8 AWG. Rated for 30 amps and 250 volts AC, it meets UL and CSA certifications for Type 4, 4X, and Type 12 enclosures and withstands dielectric voltage up to 2,000 volts. The connector is designed for cord mounting with pressure terminal screws and operates in temperatures from -40°C to 75°C continuous.
- Key Specifications
- Amperage: 30 A
- Voltage: 250 V AC
- Poles: 3
- Wires: 4 (including ground)
- Mounting Type: Cord Mounted
- Interrupt Rating: Certified for full rated current
- Series/Frame: L15-30R
- Material: Composite insulated body
- Environmental Rating: Watertight, UL Type 4, 4X, 12
- Wire Size Range: #16 AWG to #8 AWG
- Operating Temperature: -40°C to 75°C continuous
- Certifications: UL Listed, CSA Certified
- Part Number: HBL2723SW
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Voltage : 250 250
- UPC : 783585231860
- GTIN : 00783585231860
- Dimensions : 2.75 x 2.75 x 4.4 in 4.38 in L x 2.75 in W
- Weight : 0.5
