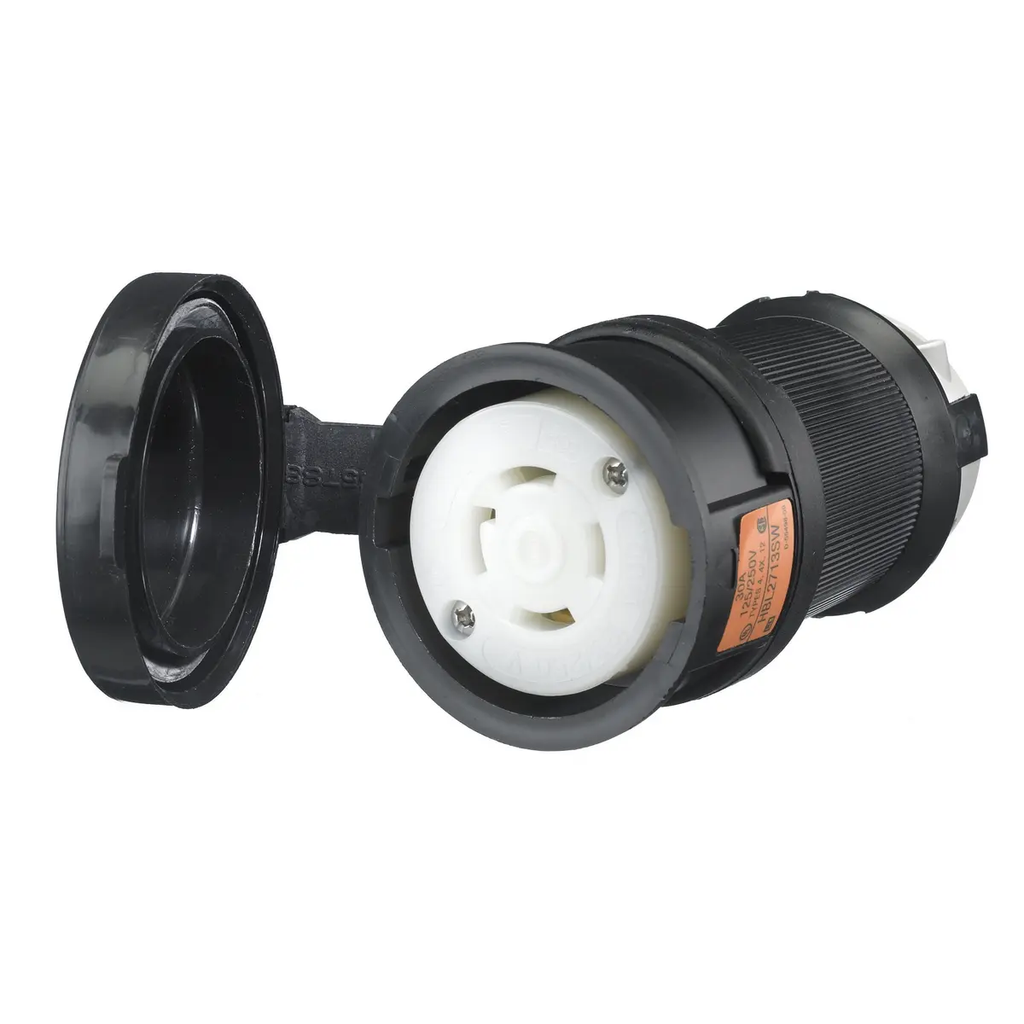

HBL2713SW - Hubbell 30A 125/250V 3-Pole 4-Wire Watertight Safety-Shroud® Twist-Lock® Female Connector

HBL2713SW

HBL2713SW is a 30 amp, 125/250 volt, 3-pole 4-wire grounding watertight safety-shroud female connector by Hubbell.This connector features a shrouded watertight design with an insulated composite body and pressure terminal screws for secure wiring. It is UL Listed and CSA Certified to Type 4, 4X, and Type 12 standards, suitable for heavy-duty industrial environments. The device supports a cable range of 0.350" to 1.150" and wire sizes from #16 AWG to #8 AWG. It includes a closure cap for environmental sealing when not in use and withstands a dielectric strength of 2,000 volts minimum. The connector is rated for continuous operation from -40°C to 75°C and is designed for cord mounting with a NEMA L14-30R configuration.

Key Specifications
• Amperage: 30 A
• Voltage: 125/250 V
• Poles: 3-Pole
• Wires: 4-Wire Grounding
• Mounting Type: Cord Mounted
• Interrupt Rating: Dielectric strength 2,000 V minimum
• Material: Composite insulated body
• Connection Type: Pressure terminal screws
• Standards: UL Listed, CSA Certified Type 4, 4X, Type 12
• Environmental: Watertight, UL Type 4X
• Cable Range: 0.350" - 1.150" (9-29 mm)
• Operating Temperature: -40°C to 75°C continuous

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL2713SW
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Twist-Lock
• Voltage : 125/250 125/250

Product Data

• UPC : 783585231785
• GTIN : 00783585231785
• Dimensions : 2.75 x 2.75 x 4.4 2.75 x 2.75 x 4.4 in 4.38 in L x 2.75 in W
• Weight : 5.19
