HBL26420 - Hubbell 60A 600V 3-Pole 4-Wire Twist-Lock Receptacle

HBL26420

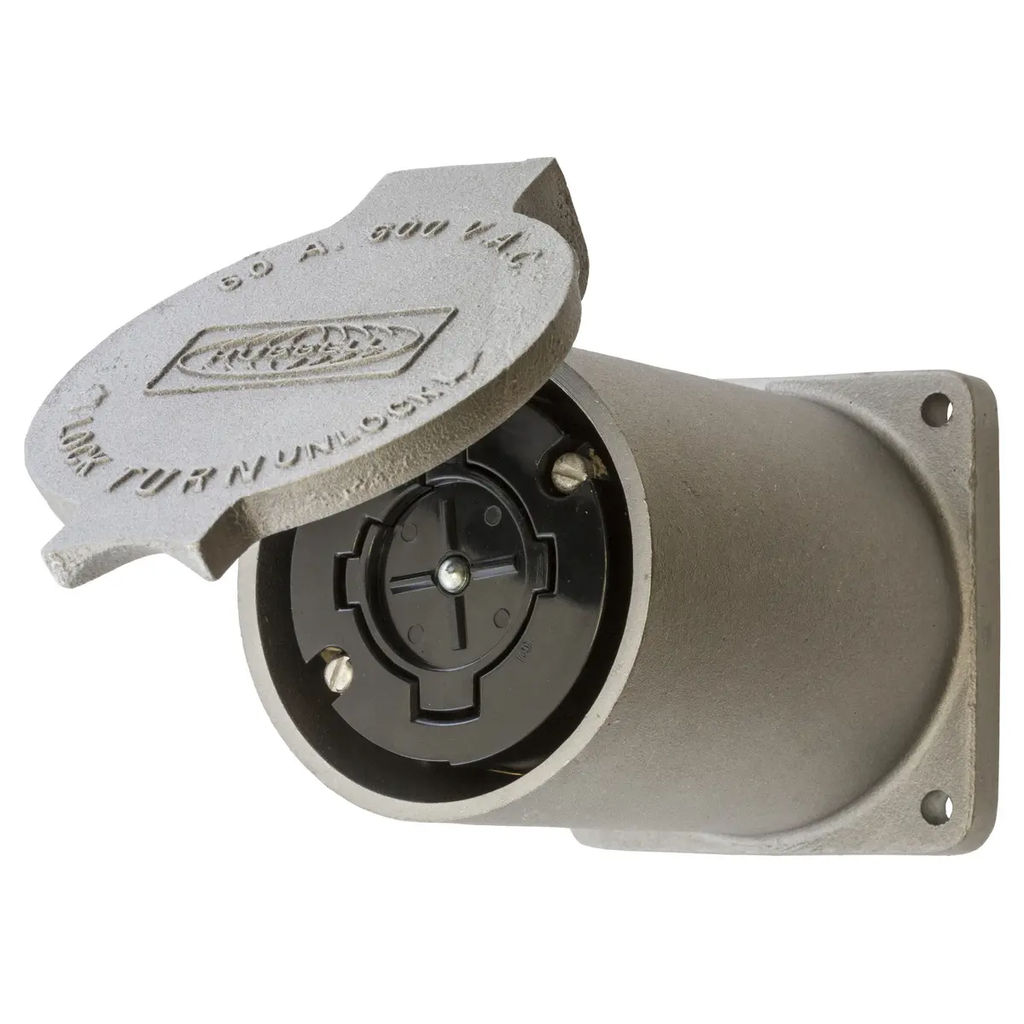

HBL26420 is a Hubbell Wiring Device-Kellems industrial twist-lock receptacle designed for heavy-duty power distribution applications requiring secure, reliable connections.

This single receptacle features a 60A, 600V AC rating with 3-pole, 4-wire grounding configuration. The unit is constructed from cast aluminum housing with copper alloy contacts and springs, ensuring durability and excellent electrical conductivity. A neoprene flange gasket provides environmental sealing, while zinc-plated steel mounting screws offer corrosion resistance. The receptacle is rated for 36,000 watts and accommodates wire sizes from 8 AWG to 4 AWG. Dielectric voltage withstand is rated at 2,000V minimum, and the ground contact material is .032 inch bronze.

• Amperage Rating: 60A
• Voltage Rating: 600V AC
• Configuration: 3-Pole, 4-Wire Grounding
• Housing Material: Cast Aluminum
• Contact Material: Copper Alloy
• Ground Contact: .032 inch Bronze
• Wire Size Range: 8 AWG to 4 AWG
• Wattage: 36,000 W
• Dielectric Voltage Withstand: 2,000V Minimum
• Flange Gasket: Neoprene
• Mounting Screws: Zinc Plated Steel
• Standard: UL 498

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL26420
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Twist-Lock

Product Data

• UPC : 783585017495
• GTIN : 00783585017327
• Dimensions : 3.5 in L x 3.63 in W x 4.88 in H 3.5 x 4.32 x 4.96 in
• Weight : 5.19
