Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL26418

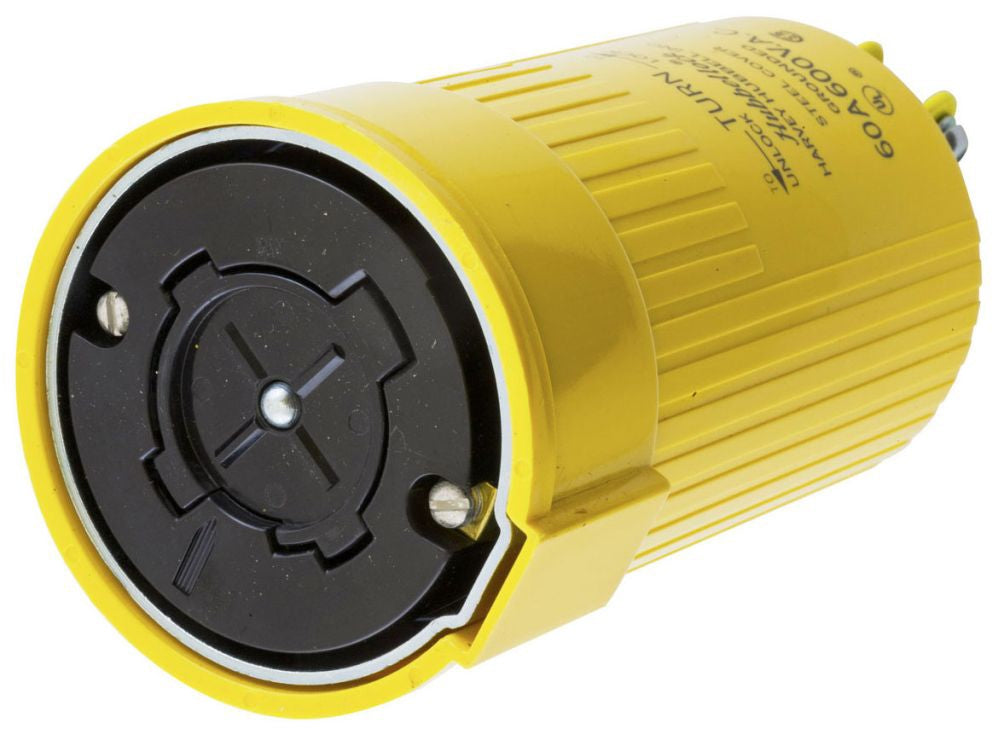

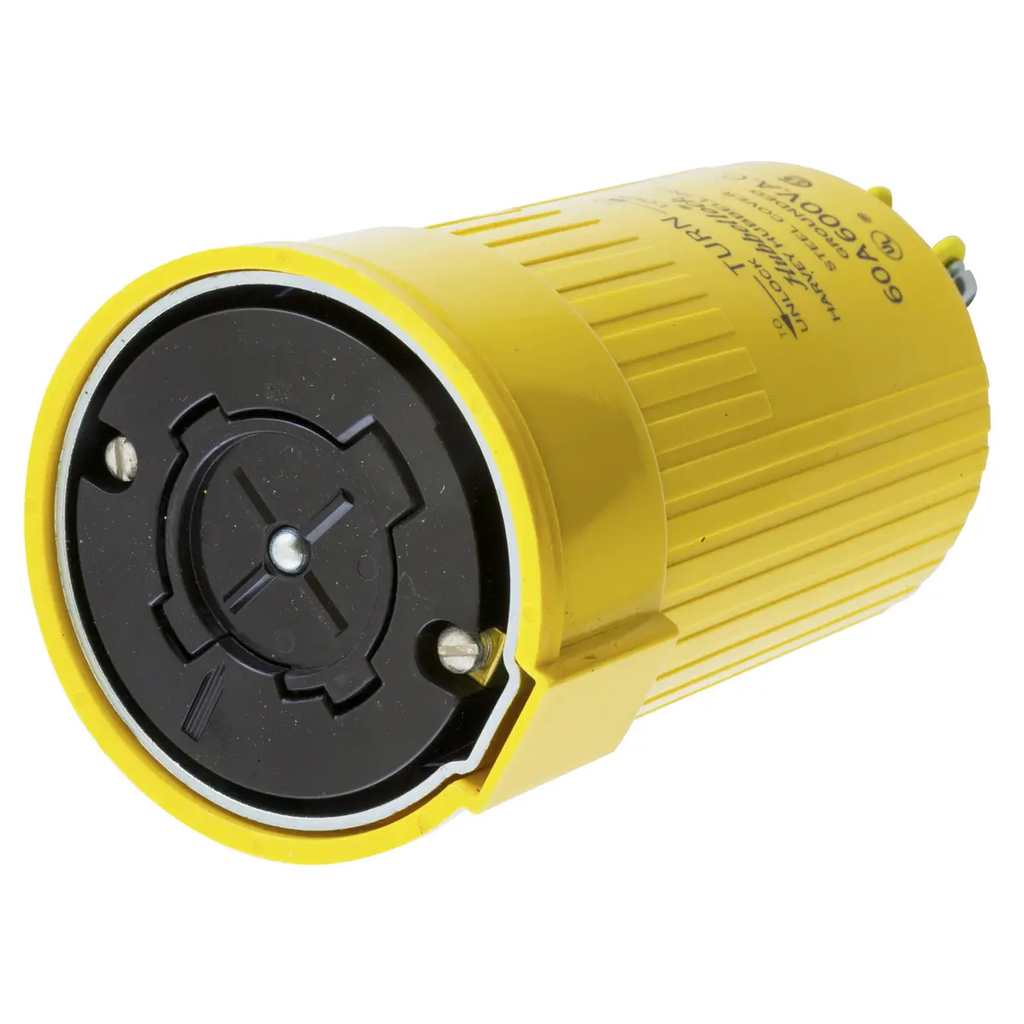

HBL26418 is a Hubbell Hubbellock 60A 600V 3-pole 4-wire yellow locking female connector body designed for heavy-duty industrial applications. This connector features a robust steel housing with a yellow thermoplastic sleeve and a black phenolic interior for maximum durability and safety. The HBL26418 connector is engineered for superior strain relief and secure cable termination, with a spring-loaded safety shutter for arc protection during mating and unmating under load. It is suitable for use with stranded copper wire from #8 AWG to #4 AWG and provides excellent impact and heat resistance for demanding environments.
- Amperage Rating: 60 A
- Voltage Rating: 600 V AC
- Poles: 3
- Wires: 4 (including grounding)
- Mounting Type: Non-NEMA locking configuration
- Interrupt Rating: Certified for current interrupting at full rated current
- Series/Frame: Hubbellock
- Terminal Type: Screw terminal
- Wire Size: #8 AWG to #4 AWG stranded copper
- Certifications: UL 498, CSA C22.2 No. 42
- Operating Temperature: -40°C to 75°C
- Flammability Rating: UL 94 VO
Specifications
- Part Number: HBL26418
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Voltage : 600 600
Product Data
- UPC : 783585017310
- GTIN : 00783585017310
- Dimensions : 3.19 x 1.09 x 5.44 in 5.44 in L x 3.19 in W
- Weight : 0.4
