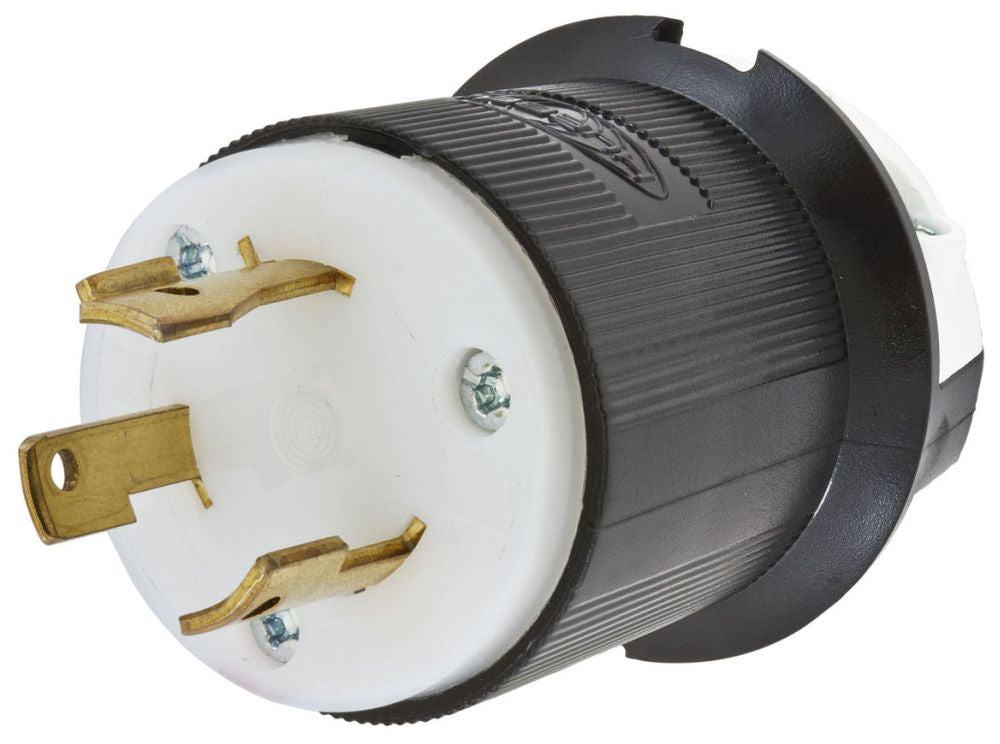

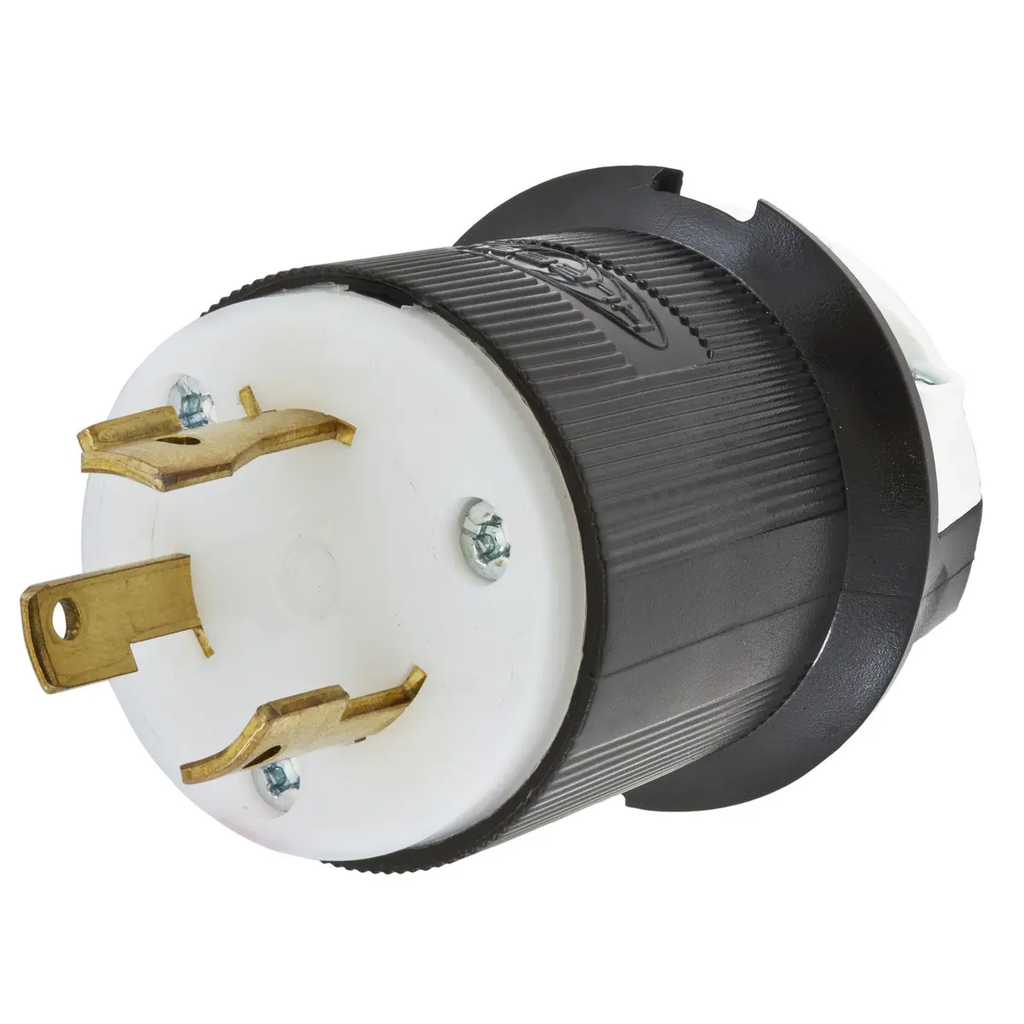

HBL2641 - Hubbell 30A 480V 2-Pole 3-Wire NEMA L8-30P Twist-Lock Male Plug, Insulgrip, Black/White, Pressure Terminal Screws, Indoor Dry Use, UL 498, CSA C22.2 No. 42

HBL2641

HBL2641 is a Hubbell 30A 480V 2-pole 3-wire NEMA L8-30P twist-lock male plug designed for industrial applications.

This heavy-duty plug features Insulgrip insulation, pressure terminal screw connections, and is rated for indoor dry locations unless protected by additional means. It is constructed from impact- and chemical-resistant nylon, supports cord diameters from 0.325" to 0.930", and is certified for current interrupting at full rated current. The plug meets UL 498 and CSA C22.2 No. 42 standards, ensuring reliable performance in demanding environments.

Key Specifications

• Amperage: 30A
• Voltage: 480V AC
• Poles: 2
• Mounting Type: Cord-mounted, surface
• Interrupt Rating: Certified for current interrupting at full rated current
• Series/Frame: Insulgrip
• Trip Unit: Not applicable (non-breaker device)
• Certifications: UL 498, CSA C22.2 No. 42, Federal Specification W-C-596
• Wire Size: #16 AWG to #8 AWG
• Cord Range: 0.325"–0.930"
• Material: Nylon
• Environmental: Indoor dry, unless protected
• Color: Black and white

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL2641
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Twist-Lock
• Voltage : 480 480

Product Data

• UPC : 783585039008
• GTIN : 783585039008
• Dimensions : 2.26 in Dia x 2.75 in L 2.26 x 2.26 x 2.75 in
• Weight : 5.19
