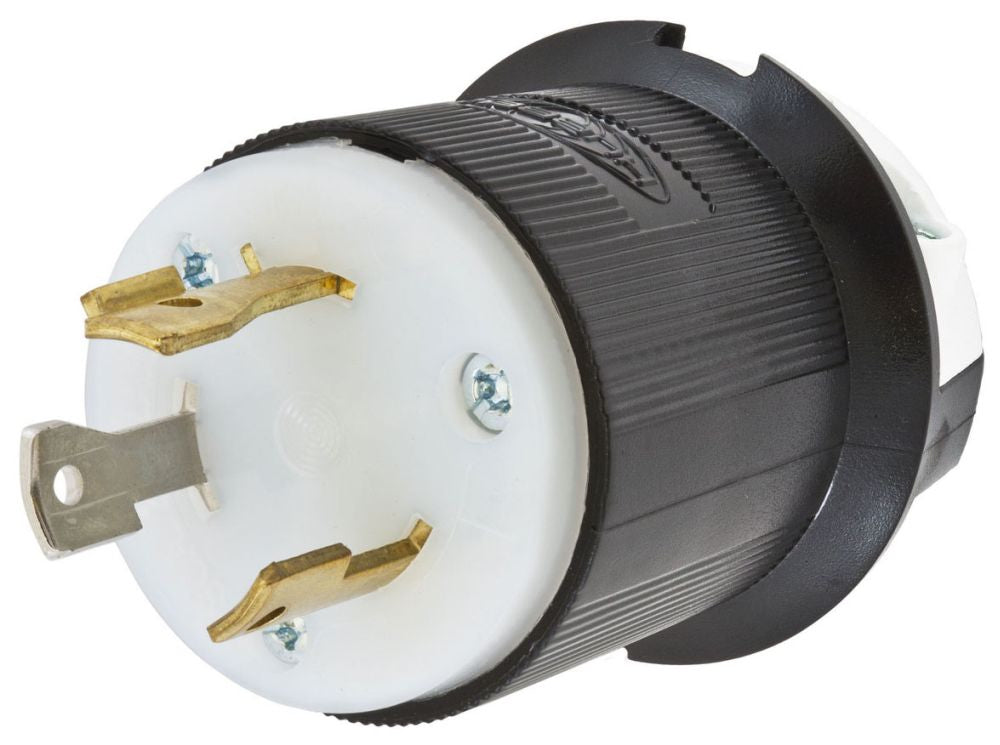

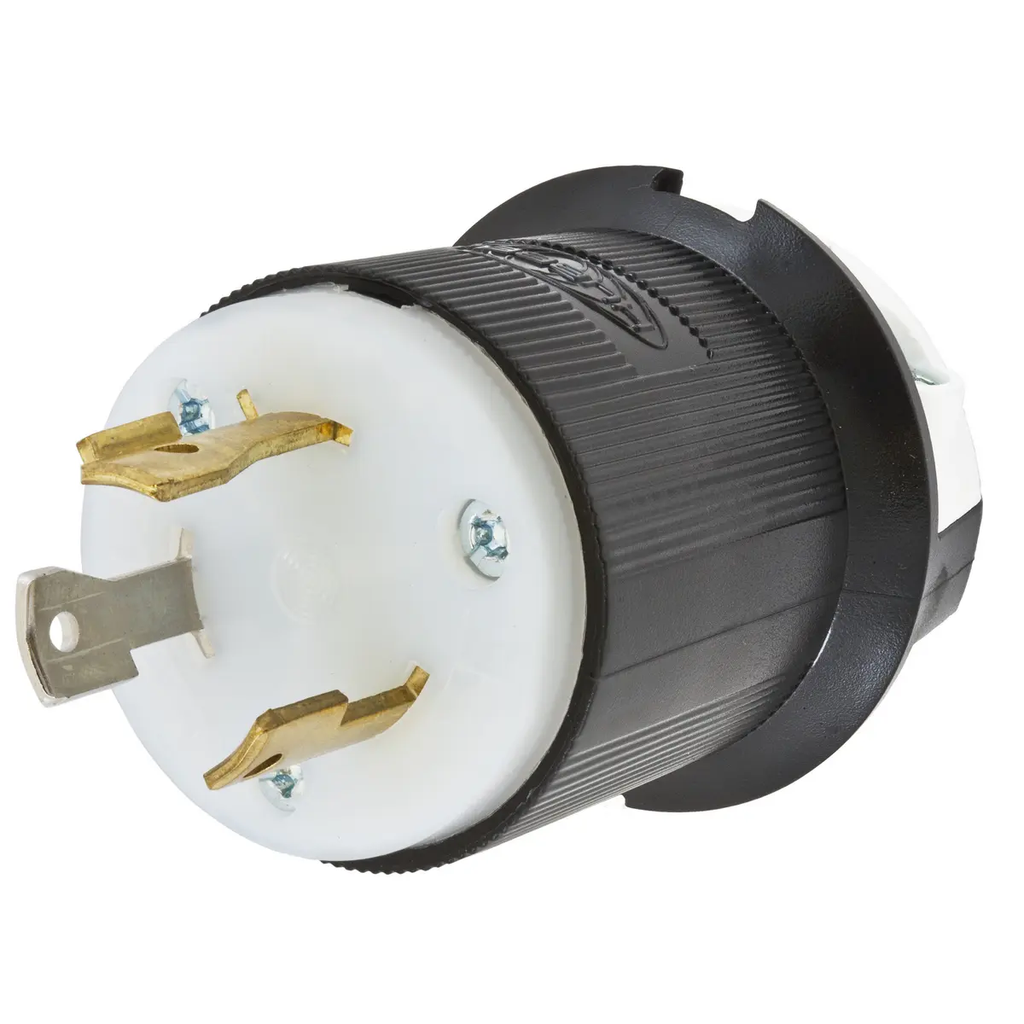

HBL2631 - Hubbell 30A 277VAC 2-Pole 3-Wire Grounding Twist-Lock Industrial Male Plug L7-30P Screw Terminal

HBL2631

HBL2631 is a Hubbell Twist-Lock industrial male plug designed for secure, reliable connections in demanding environments. This plug features a 2-pole, 3-wire grounding configuration with a 30A, 277VAC rating and L7-30P configuration for compatibility with matching receptacles. Constructed from durable nylon, it offers a cord range of 0.360" to 0.930" and is rated for continuous operation from -40°C to 75°C. The screw terminal design ensures a secure connection for wire sizes #16 AWG to #8 AWG. This industrial-grade plug is ideal for applications requiring a robust, locking connection with superior cord grip and dielectric strength (withstands 2,000V minimum). The HBL2631 is certified for current interrupting at full rated current and is suitable for use in industrial and commercial power distribution systems.

• Part Number: HBL2631
• Manufacturer: Hubbell
• Amperage Rating: 30A
• Voltage Rating: 277VAC
• Poles: 2-Pole
• Wires: 3-Wire Grounding
• Configuration: L7-30P
• Mounting Type: Cord Mounted
• Interrupt Rating: Full Rated Current
• Series/Frame: Twist-Lock Insulgrip
• Terminal Type: Screw Terminal
• Wire Size: #16 AWG to #8 AWG
• Cord Range: 0.360" to 0.930"
• Material: Nylon
• Operating Temperature: -40°C to 75°C
• Dielectric Strength: 2,000V minimum
• Standards: NEMA L7-30P, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL2631
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Twist-Lock
• Voltage : 277 277

Product Data

• UPC : 783585038964
• GTIN : 00783585038964
• Country of Origin : United States
• Dimensions : 2.26 in L x 2.26 in W x 2.75 in H 2.26 x 2.26 x 2.75 in
• Weight : 5.19
• Certification : Terminals identified in accordance with UL 498, FED SPEC UL/CSA
