2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL2630

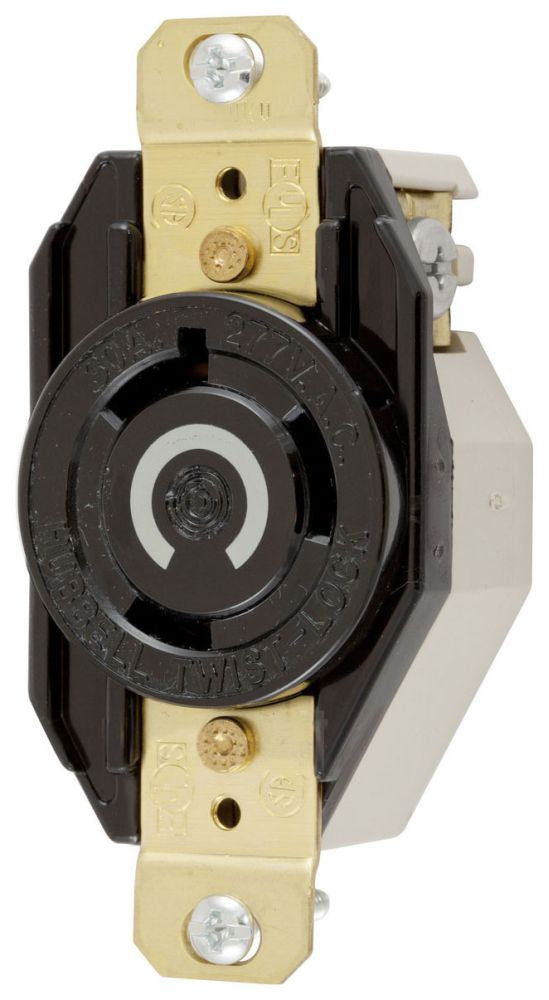

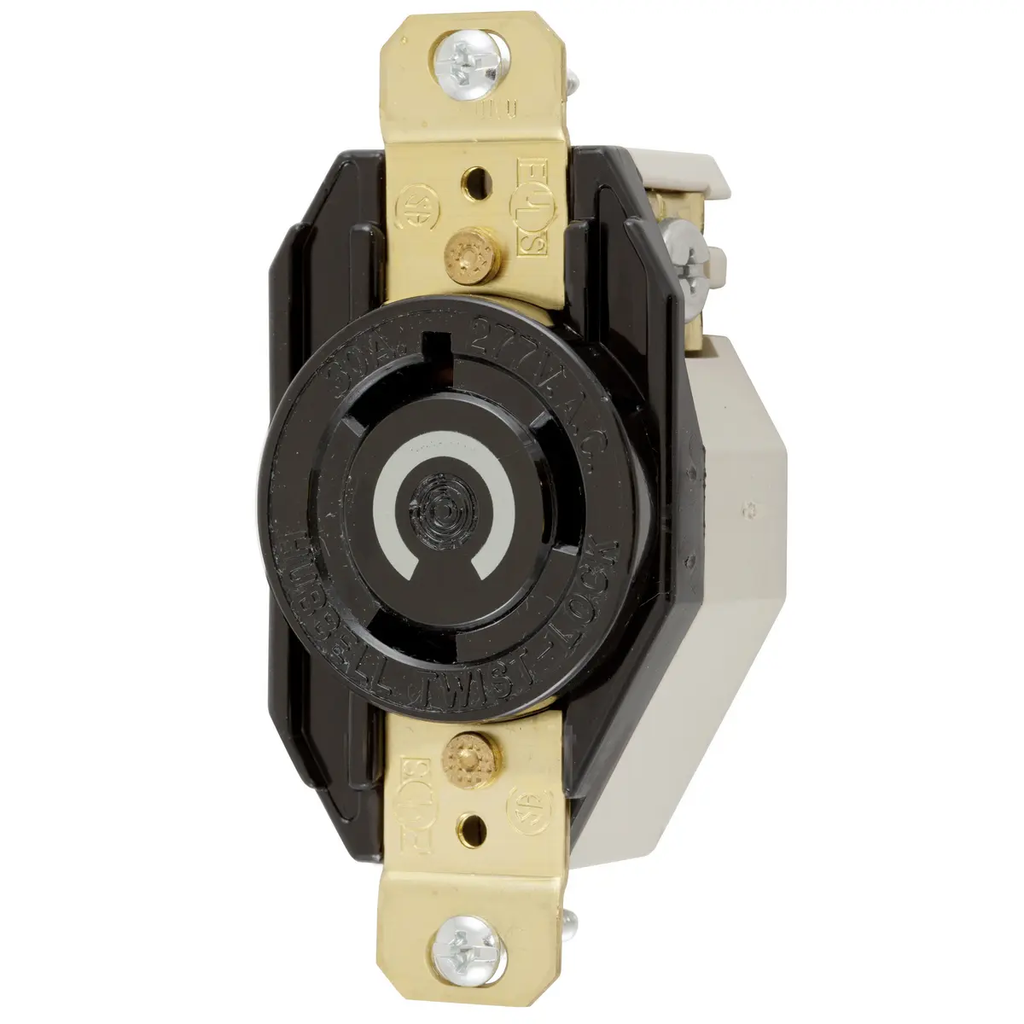

HBL2630 is a Hubbell 30 Amp, 277 Volt, 2-Pole, 3-Wire grounding twist-lock industrial flush receptacle designed for secure electrical connections.This locking receptacle features a durable nylon construction with screw terminal mounting hardware. It supports wire sizes from #16 AWG to #8 AWG and is rated for single-phase applications. The device is designed for indoor dry environments unless protected by additional means and operates reliably within a temperature range of -40°C to 75°C. It meets the NEMA L7-30R configuration and is RoHS compliant.
- Amperage Rating: 30 A
- Voltage Rating: 277 VAC
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire Grounding
- Wire Size Range: #16 AWG to #8 AWG
- Material: Nylon
- Mounting Type: Screw Mounting
- Configuration: NEMA L7-30R
- Operating Temperature: -40°C to 75°C
- Environmental Conditions: Indoor Dry Unless Protected
- Connectivity: Back and Side Wired Screw Terminals
- RoHS Compliant
Specifications
- Part Number: HBL2630
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Voltage : 277 277
Product Data
- UPC : 783585236056
- GTIN : 783585236056
- Dimensions : 3.28 in H x 1.7 in W x 1.23 in D 3.28 x 1.7 x 1.31 in
- Weight : 5.19
