Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL2626

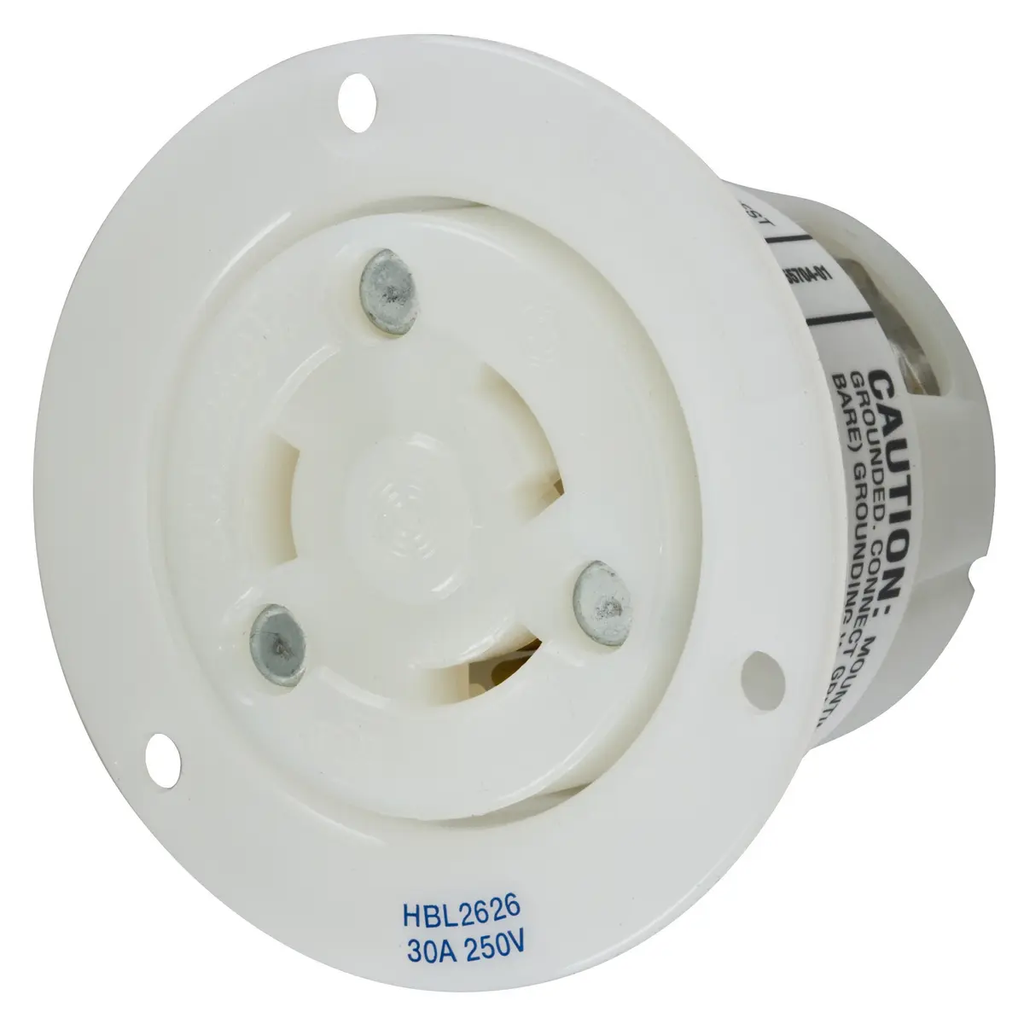

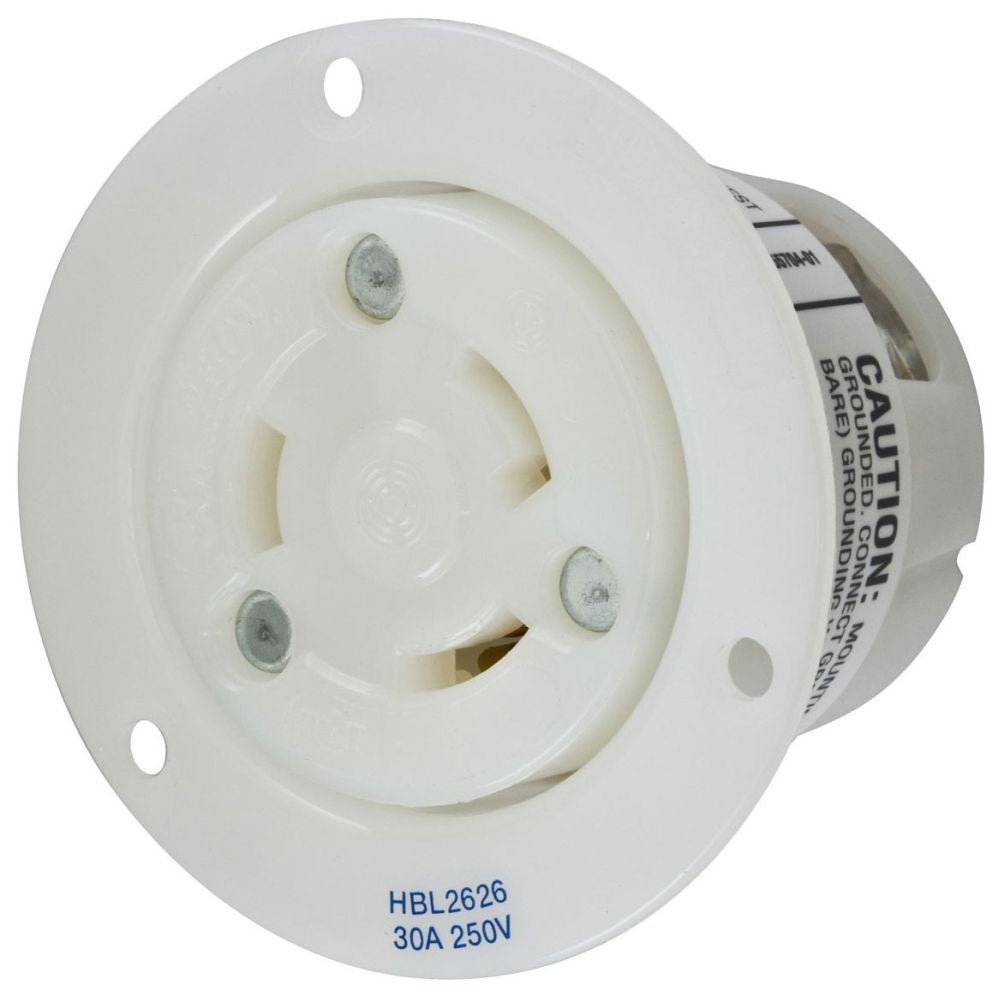

HBL2626 is a Hubbell Twist-Lock industrial flanged receptacle designed for secure, reliable power connections in demanding environments. This receptacle features a 250V voltage rating, 30A amperage, and a NEMA L6-30R configuration for single-phase applications. Constructed with a durable nylon body and screw mounting hardware, it provides a robust solution for industrial and commercial installations. The HBL2626 offers back-wired screw terminals for easy installation and accepts wire sizes from #16 AWG to #8 AWG. Its clear polycarbonate terminal retainer and nickel-plated steel terminal clamp ensure long-lasting performance and safety. The receptacle is rated for continuous operation from -40°C to 75°C and is compliant with RoHS standards.
- Part Number: HBL2626
- Manufacturer: Hubbell
- Amperage Rating: 30 A
- Voltage Rating: 250 VAC
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Mounting Type: Screw Mounting
- Terminal Type: Screw Terminal
- Material: Nylon
- Dielectric Strength: 2,000V minimum
- Operating Temperature: -40°C to 75°C
- Industry Standards: NEMA L6-30R, UL 498, CSA C22.2 No.42, Fed.Spec. W-C-596
Specifications
- Part Number: HBL2626
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Voltage : 250 250
Product Data
- UPC : 783585038933
- GTIN : 00783585038834
- Dimensions : 2.88 in Dia x 2.09 in L 2.88 x 2.88 x 2.09 in
- Weight : 5.19
