Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL2623SW

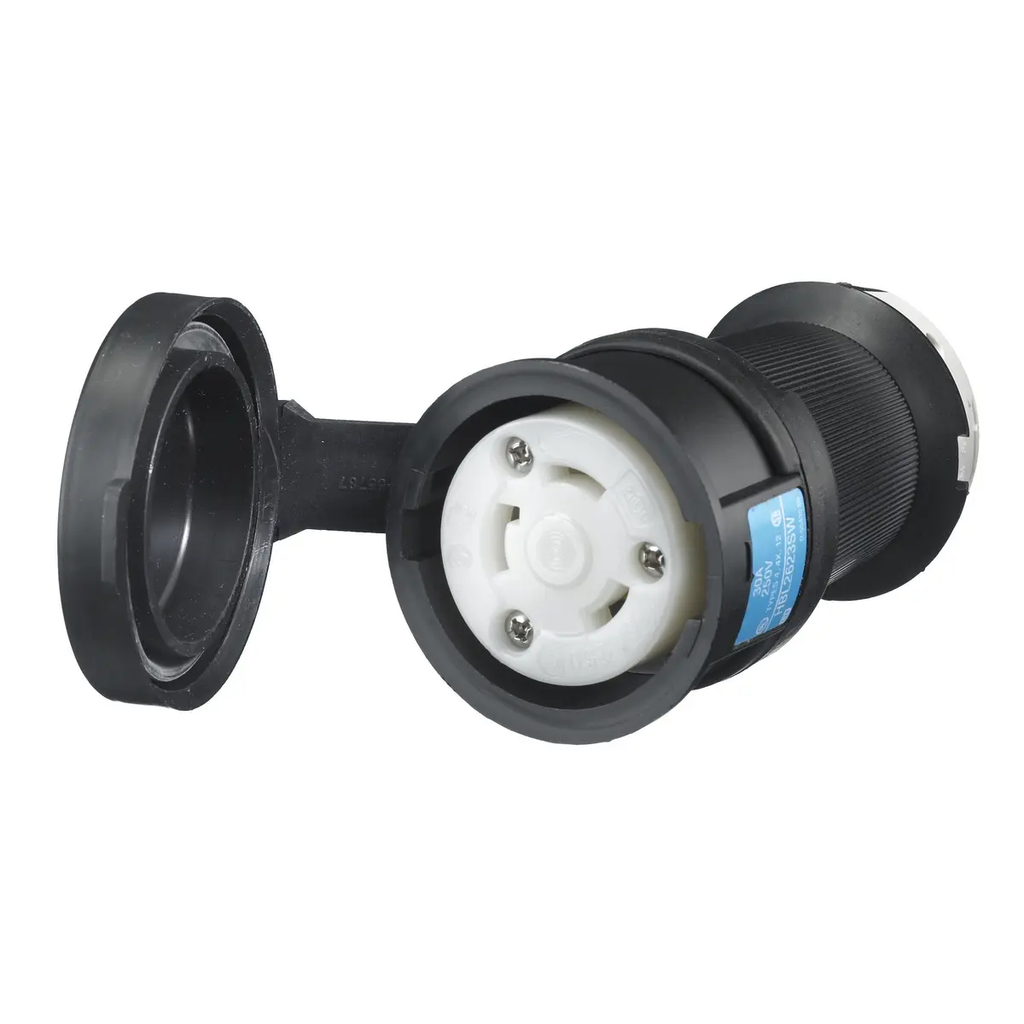

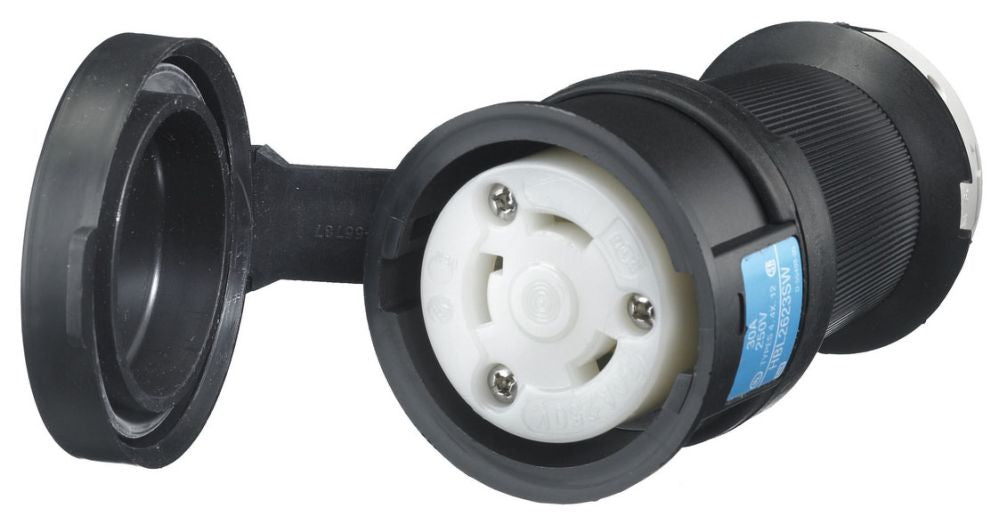

HBL2623SW is a 30 Amp, 250 Volt, 2-Pole, 3-Wire grounding watertight Twist-Lock Safety-Shroud Connector from Hubbell. It features a durable black PBT housing with white PBT clamps for secure cord mounting.This connector is UL Listed and CSA Certified, designed for industrial and commercial use with a NEMA L6-30R configuration. It withstands 2,000V dielectric strength and operates in temperatures from -40°C to 75°C continuous. The insulated body and watertight Type 4X, 4, and 12 ratings ensure reliable performance in harsh environments.
- Key Specifications
- Amperage: 30 A
- Voltage: 250 V AC
- Poles: 2-Pole, 3-Wire grounding
- Mounting Type: Cord Mounted
- Interrupt Rating: 2,000 V minimum dielectric strength
- Series/Frame: Insulgrip® Safety-Shroud
- Housing Material: Black PBT composite
- Clamps: White PBT
- Certifications: UL Listed, CSA Certified
- Environmental Rating: Watertight, UL Type 4X, 4, 12
- Operating Temperature: -40°C to 75°C continuous
- Wire Size Accommodation: #16 AWG to #8 AWG stranded copper
Specifications
- Part Number: HBL2623SW
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Voltage : 250 250
Product Data
- UPC : 783585231709
- GTIN : 00783585231709
- Dimensions : 2.75 in Dia x 4.4 in L 4.4 in L x 2.75 in W x 2.75 in H
- Weight : 5.19
