Product Info
- Manufacturer:Hubbell
Description
HBL2621VY

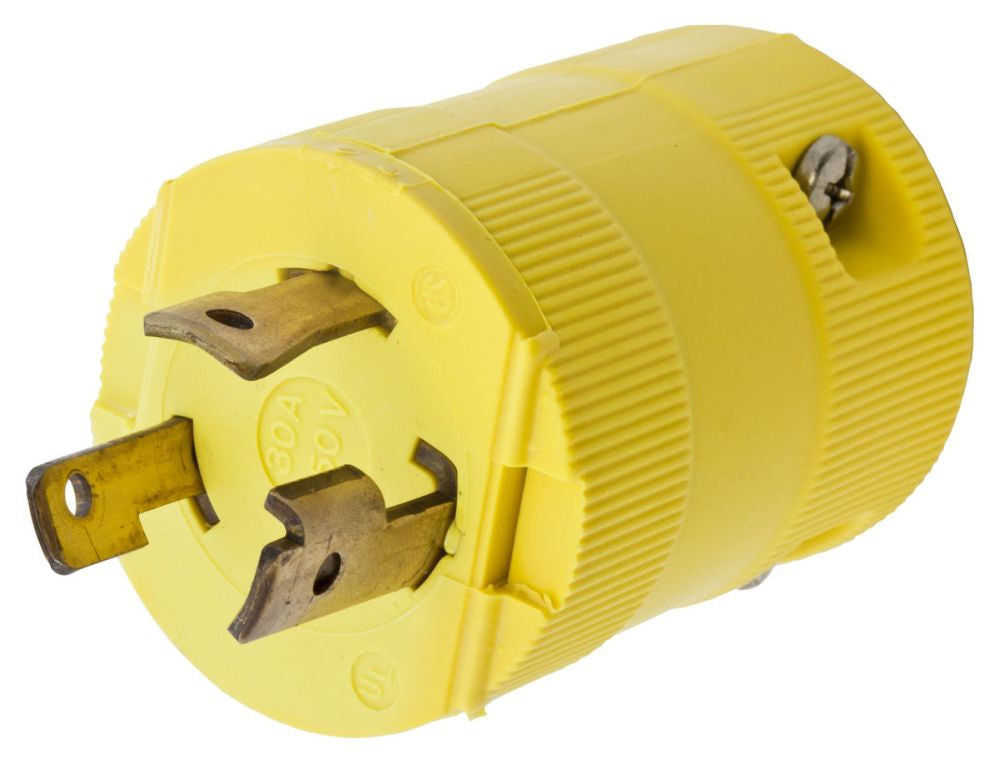

HBL2621VY is a 30 amp, 250 volt, 2-pole, 3-wire grounding twist-lock Valise plug by Hubbell, designed for heavy-duty industrial use.This plug features a durable yellow nylon body that is impact and crush resistant, with a powerful cord grip to prevent conductor slippage and strain on wiring terminals. It is cord mounted and rated for single-phase applications with a NEMA L6-30P configuration. The device withstands a dielectric voltage of 2,000V minimum and supports wire sizes from #14 AWG to #8 AWG. It is UL and CSA certified, suitable for indoor dry environments, and rated for a maximum continuous operating temperature of 75°C.
- Key Specifications
- Amperage: 30 A
- Voltage: 250 VAC
- Poles: 2
- Wires: 3 (Grounding)
- Mounting Type: Cord Mounted
- Material: Yellow Nylon
- NEMA Rating: L6-30P
- Interrupt Rating: Certified for full rated current
- Dielectric Strength: Withstands 2,000V minimum
- Wire Size Range: #14 AWG to #8 AWG
- Phase: Single Phase
- Operating Temperature: -40°C to 75°C continuous
Specifications
- Part Number: HBL2621VY
- Manufacturer : Hubbell
- Brand : Hubbell
Product Data
- UPC : 783585236025
- GTIN : 00783585038834
- Country of Origin : United States
- Dimensions : 1.78 in x 2.5 in x 1.78 in
- Weight : 0.4
- Certification : Terminals identified in accordance with UL 498 (X, Y, Z, White, Green),UL/CSA
