HBL2621F - Hubbell Twist-Lock Insulgrip Plug 30A 250V 2-Pole 3-Wire Grounding NEMA L6-30P Heat Stabilized Gray Nylon

HBL2621F

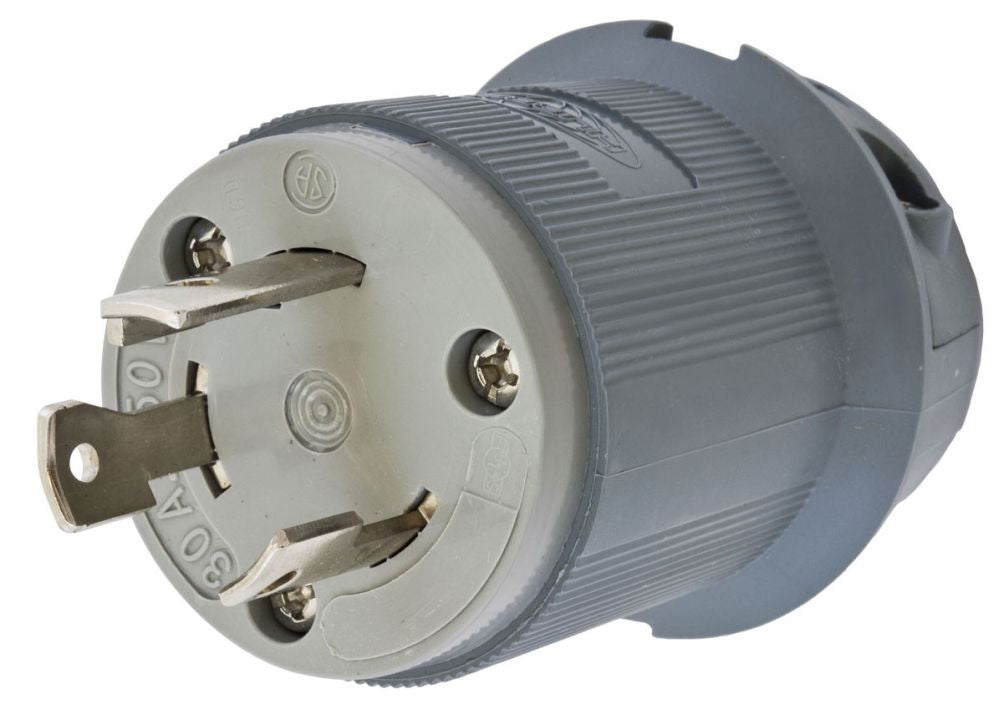

HBL2621F is a Hubbell Twist-Lock Insulgrip locking plug designed for reliable, secure electrical connections in demanding environments. This plug features a heat-stabilized gray nylon body and is rated for 30A and 250V AC, making it suitable for industrial and commercial applications requiring a durable, high-performance connector.Engineered for safety and ease of use, the HBL2621F offers pressure terminal screws for secure wire attachment and is certified for current interrupting at full rated current. The plug is cord-mounted and supports conductor sizes from #16 AWG to #8 AWG, with a cord range of 0.360 to 0.930 inches. Its robust construction ensures reliable performance in indoor dry environments, with a maximum continuous operating temperature of 75°C and a minimum of -40°C without impact.

• Amperage Rating: 30 A
• Voltage Rating: 250 VAC
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• Mounting Type: Cord Mounted
• Terminal Type: Pressure Terminal Screws
• Conductor Size: #16 AWG to #8 AWG
• Cord Range: 0.360 in to 0.930 in
• NEMA Configuration: L6-30P
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40°C to 75°C
• Material: Heat Stabilized Gray Nylon

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL2621F
• Manufacturer : Hubbell
• Brand : Hubbell
• Voltage : 250 AC

Product Data

• UPC : 783585038858
• GTIN : 00783585000000
• Country of Origin : United States
• Dimensions : 2.26 in x 2.75 in x 2.26 in
• Weight : 5.19
• Certification : Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; FED SPEC UL/CSA
