Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL2620SW

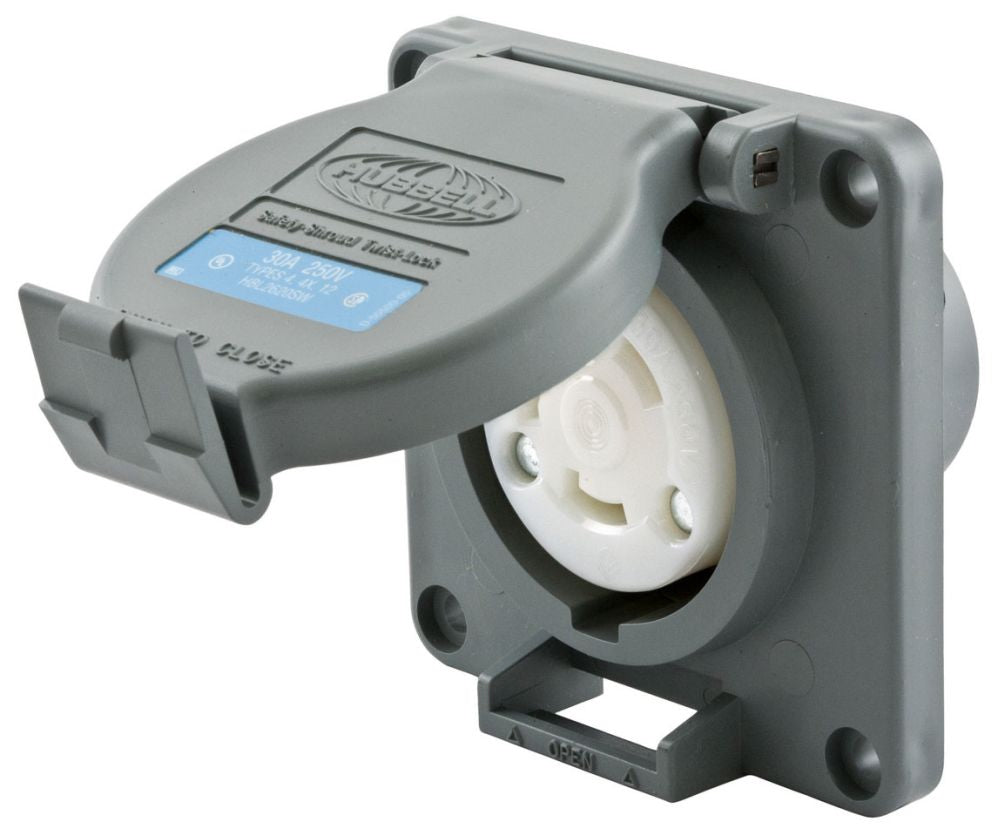

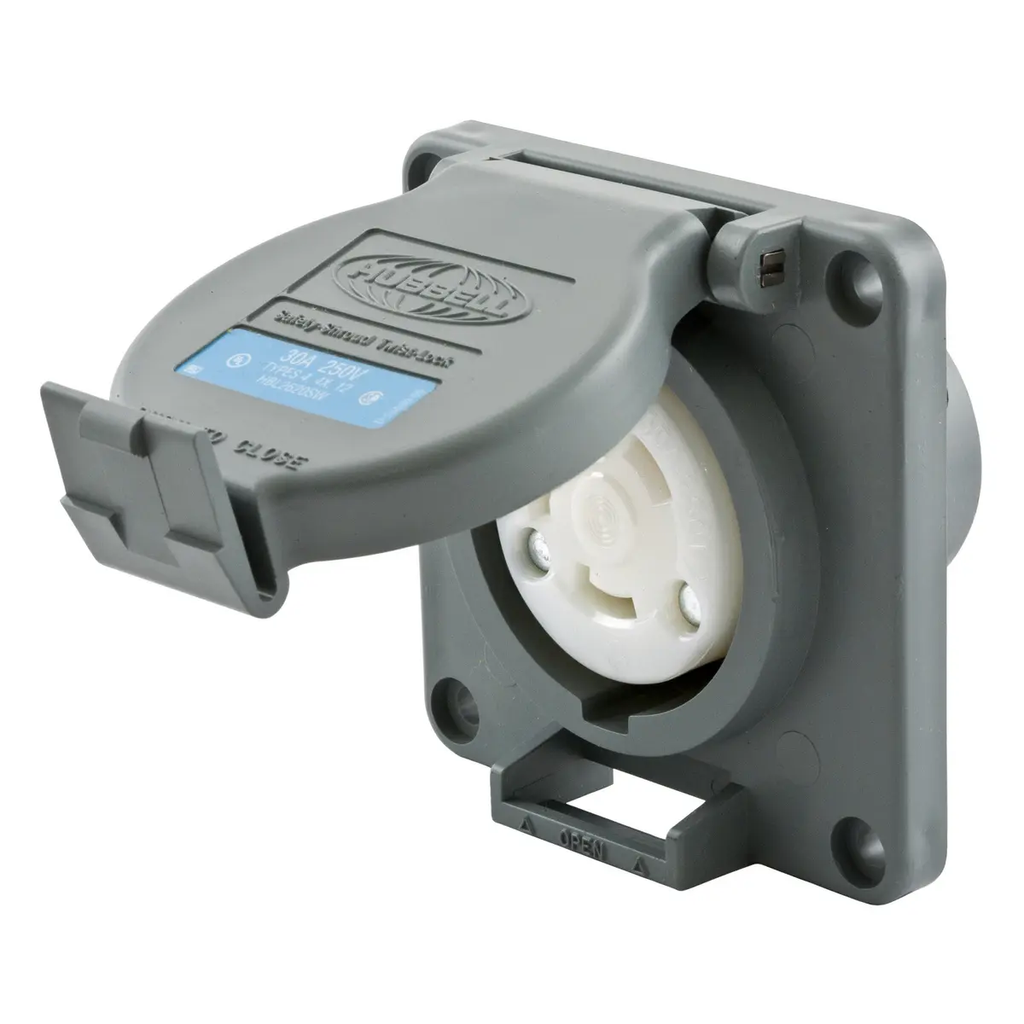

HBL2620SW is a Hubbell 30 Amp, 250 Volt, 2-Pole 3-Wire grounding watertight safety shroud Twist-Lock receptacle designed for heavy-duty industrial use.This receptacle features a durable PBT housing and flange in gray, screw terminal wiring for #16 to #8 AWG solid or stranded copper wire, and is rated for 30A and 250V AC. It is NEMA L6-30R configured with a watertight safety shroud for protection in harsh environments. The device withstands a dielectric voltage of 2,000V minimum and is certified for current interrupting at full rated current. It operates continuously up to 75°C and is suitable for industrial applications requiring secure locking and moisture resistance.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 250 Volts AC
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- NEMA Configuration: L6-30R
- Mounting Type: Screw Mount
- Terminal Type: Screw Terminal (#16-#8 AWG)
- Housing Material: PBT Thermoplastic
- Safety Feature: Watertight Safety Shroud
- Dielectric Voltage Withstand: 2,000V minimum
- Operating Temperature: -40°C to 75°C continuous
- Certifications: UL Listed, CSA Certified
- Part Number: HBL2620SW
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Voltage : 250 250
- UPC : 783585231662
- GTIN : 00783585231662
- Dimensions : 3.75 in L x 3.75 in W x 2.69 in D 3.75 x 3.75 x 2.69 in
- Weight : 0.3
