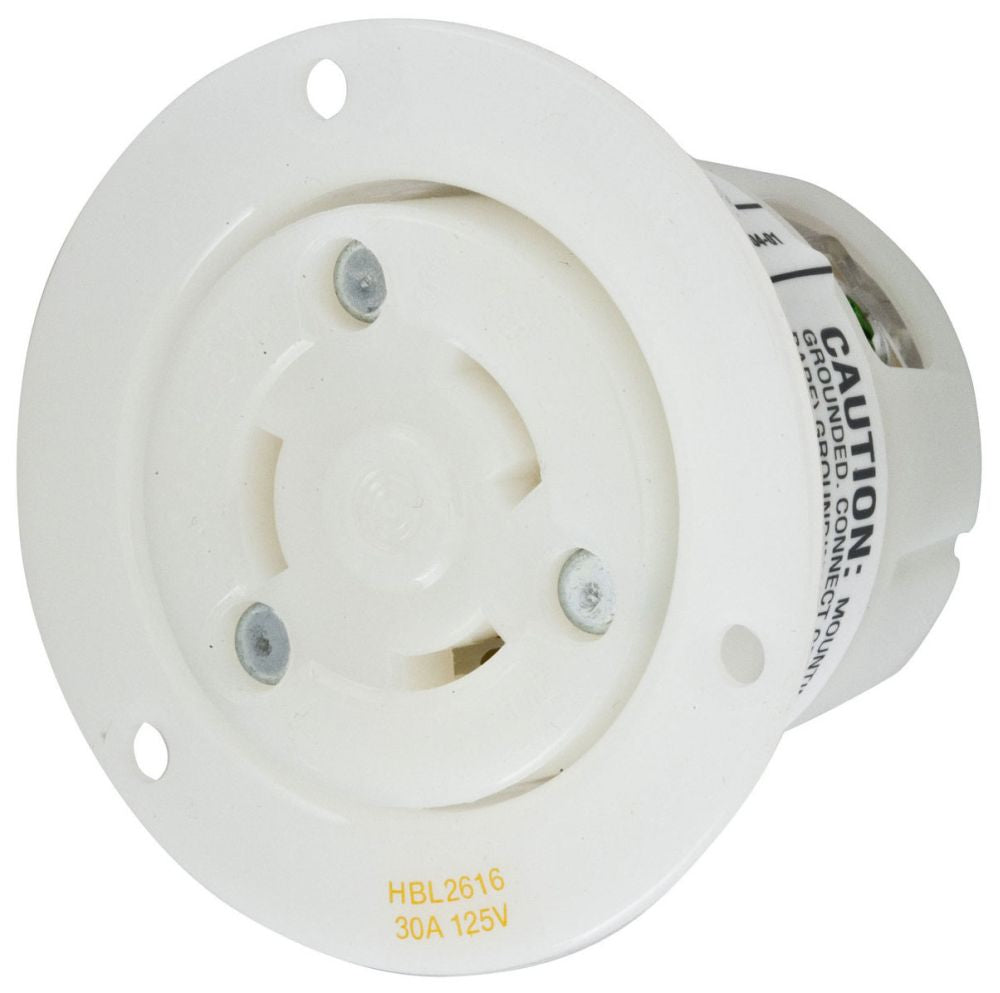

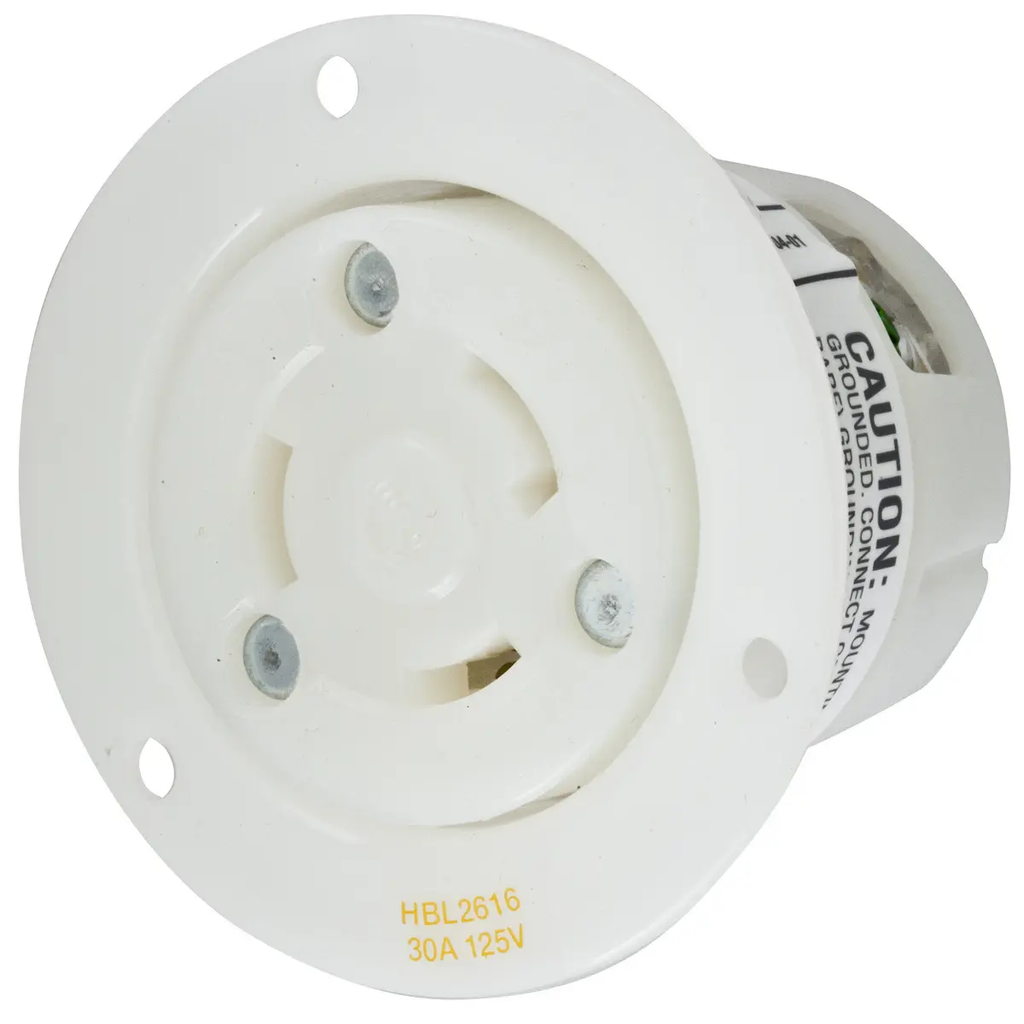

HBL2616 - Hubbell 30A 125V 2-Pole 3-Wire Twist-Lock Flanged Receptacle L5-30R Screw Mount

HBL2616

HBL2616 is a Hubbell 30 Amp, 125 Volt, 2-Pole 3-Wire grounding Twist-Lock flanged receptacle with screw terminal mounting.This industrial-grade flanged receptacle features a nylon housing and brass contacts designed for reliable electrical connections. It supports a NEMA L5-30R configuration, suitable for single-phase applications with a maximum continuous operating temperature of 75°C and a minimum of -40°C. The device is UL 94/498 and CSA C22.2 certified and complies with RoHS standards. It is ideal for indoor dry environments and supports wire sizes from 16 AWG to 8 AWG.

Key Specifications
• Amperage Rating: 30 A
• Voltage Rating: 125 VAC
• Poles: 2-Pole
• Wires: 3-Wire Grounding
• Mounting Type: Screw Mount
• Material: Nylon housing with brass contacts
• Configuration: NEMA L5-30R
• Operating Temperature: -40°C to 75°C
• Certifications: UL 94/498, CSA C22.2, RoHS Compliant
• Wire Size Range: #16 AWG to #8 AWG
• Dielectric Strength: Withstands 2000V minimum
• Application: Indoor dry locations
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HBL2616
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Twist-Lock
• Family : HBL
• Voltage : 125 125



Product Data

• UPC : 783585038810
• GTIN : 00783585038810
• Dimensions : 2.22 in L x 2.88 in W x 2.88 in H 2.88 x 2.88 x 2.09 2.88 x 2.88 x 2.09 in
• Weight : 0.3
