Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL2615

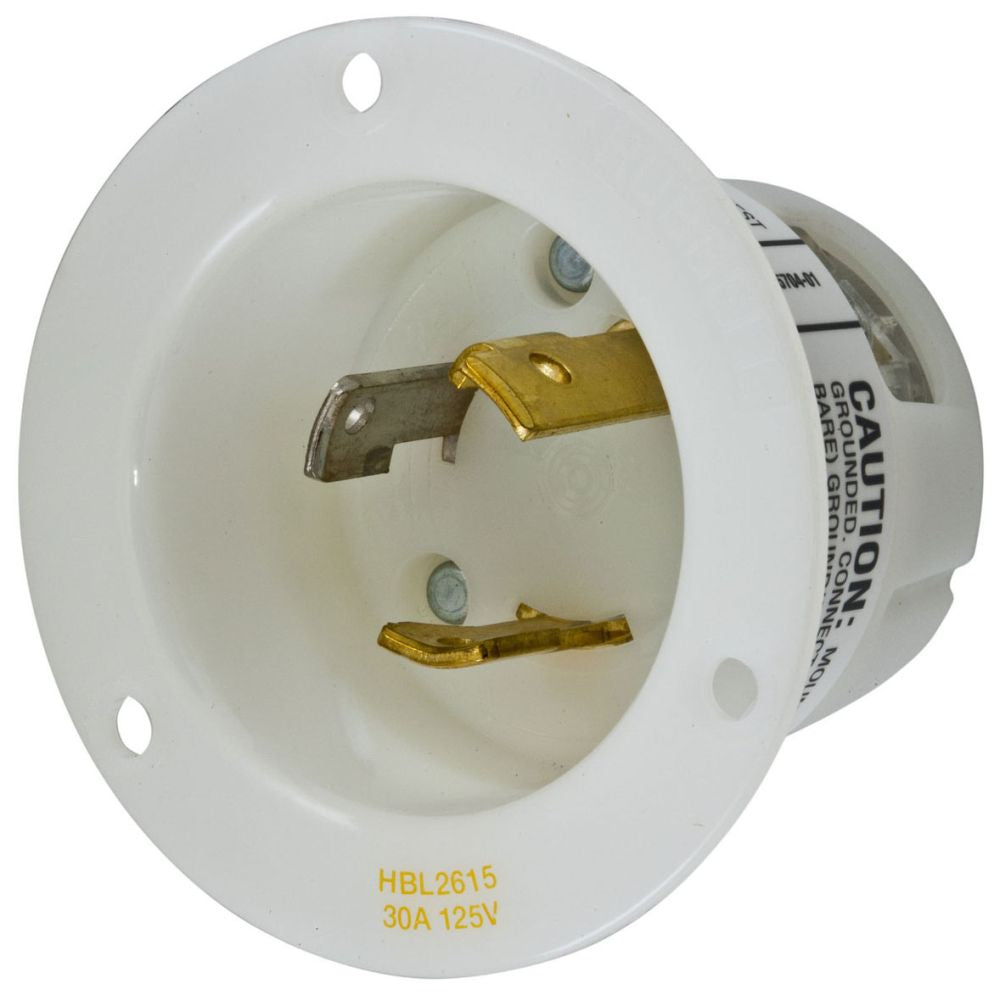

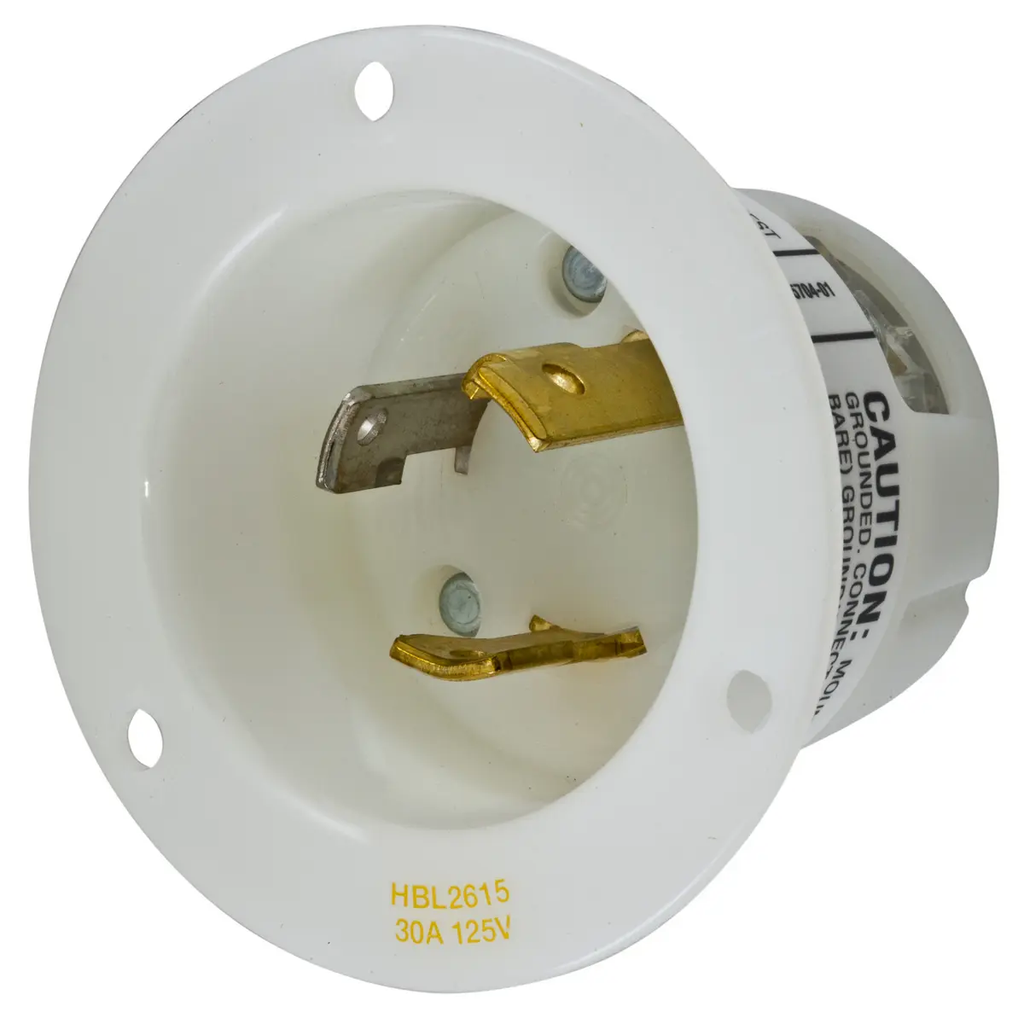

HBL2615 is a Hubbell Twist-Lock flanged inlet designed for secure, industrial-grade power connections in commercial and industrial environments. This locking inlet features a robust nylon housing, brass blades, and a screw terminal for reliable wiring. The HBL2615 is rated for 30A and 125V, with a 2-pole, 3-wire grounding configuration (L5-30P). It is suitable for single-phase applications and offers a dielectric strength of 2,000V minimum. The flanged design allows for easy surface mounting, and the device is certified for current interrupting at full rated current. It meets UL 498, NEMA WD-1, and WD-5 standards, and is RoHS compliant.
- Part Number: HBL2615
- Manufacturer: Hubbell
- Amperage Rating: 30A
- Voltage Rating: 125V
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Screw, Surface
- Interrupt Rating: Full rated current
- Series/Frame: Twist-Lock
- Terminal Type: Screw Terminal
- Material: Nylon Housing, Brass Blades
- Certifications: UL 498, NEMA WD-1, WD-5, RoHS
Specifications
- Part Number: HBL2615
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Family : HBL
- Voltage : 125 125
Product Data
- UPC : 783585038797
- GTIN : 0783585038797
- Dimensions : 2.88 in Dia x 2 in L 2.88 x 2.88 x 2.09 2.88 x 2.88 x 2.09 in
- Weight : 5.19
