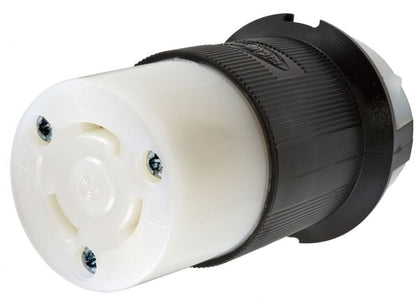

HBL2613 - Hubbell 30A 125V 2-Pole 3-Wire Grounding Cord Mount Locking Connector L5-30R Industrial Grade

HBL2613

HBL2613 is a heavy-duty industrial locking connector designed for reliable power distribution in demanding environments. This Hubbell connector features a 2-pole, 3-wire grounding configuration with a 30A, 125VAC rating and L5-30R NEMA configuration for secure, twist-lock connections. The cord mount design provides superior strain relief and protection for terminations, while the nylon housing offers durability and resistance to environmental factors. Ideal for industrial applications requiring robust and safe power connections. Engineered for industrial use, the HBL2613 connector features pressure screw terminals for secure wire attachment, accepts wire sizes from #16 AWG to #8 AWG stranded copper, and operates within a temperature range of -40°C to 75°C. The connector is certified for current interrupting at full rated current and meets RoHS compliance standards. Its IP20 enclosure rating provides protection against dust and contaminants, and the clear, funnel-shaped wire entry simplifies installation and maintenance.

• Amperage Rating: 30 A
• Voltage Rating: 125 VAC
• Poles: 2
• Wires: 3 (Grounding)
• Mounting Type: Cord Mount
• Interrupt Rating: Full rated current
• Series/Frame: HBL®
• Terminal Type: Pressure Screw
• Wire Size: #16 AWG to #8 AWG (Stranded Copper)
• Operating Temperature: -40°C to 75°C
• Enclosure Rating: IP20
• Certifications: RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL2613
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Twist-Lock
• Family : HBL
• Voltage : 125 125

Product Data

• UPC : 783585038766
• GTIN : 00783585038735
• Dimensions : 2.26 x 2.26 x 3.86 in 3.86 in L x 2.26 in W
• Weight : 0.4
