Product Info
- Manufacturer:Hubbell
Description
HBL25CM11

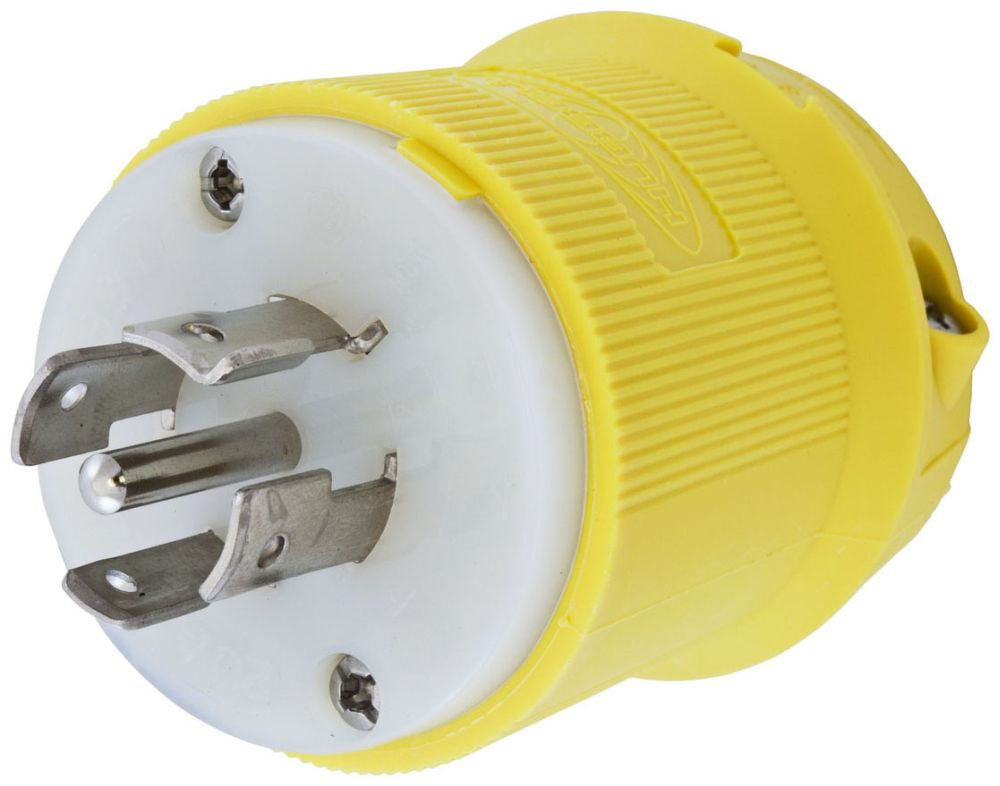

HBL25CM11 is a corrosion resistant Insulgrip® twist-lock plug designed for 20 amp, 3 phase Y 120/208V AC applications with 4 poles and 5 wires grounding in a NEMA L21-20P configuration.HBL25CM11 features a ribbed yellow nylon housing for secure grip, impact and chemical resistance, and a superior cord grip design that protects terminations from excess strain. It includes an integral dust shield to protect the wiring chamber from contaminants. The plug accommodates #16 AWG to #8 AWG stranded copper wire and is rated for continuous operation up to 75°C and down to -40°C without impact. It is UL 498 and CSA C22.2 No.42 certified, with a dielectric strength of 2000V minimum and is suitable for all listed portable cords.
- Key Specifications
- Amperage: 20 A
- Voltage: 120/208 V AC, 3 Phase WYE
- Poles: 4
- Wires: 5 (Grounding)
- NEMA Configuration: L21-20P
- Housing Material: Yellow Nylon
- Cord Diameter Range: 0.350" - 1.150" (9-29 mm)
- Wire Size: #16 AWG to #8 AWG stranded copper
- Operating Temperature: -40°C to 75°C continuous
- Certifications: UL 498, CSA C22.2 No.42
- Dielectric Voltage Withstand: 2000 V minimum
- Current Interrupting Certified at full rated current
Specifications
- Part Number: HBL25CM11
- Manufacturer : Hubbell
- Brand : Hubbell
Product Data
- UPC : 783585038711
- GTIN : 783585172262
- Weight : 0.4
