Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL2520

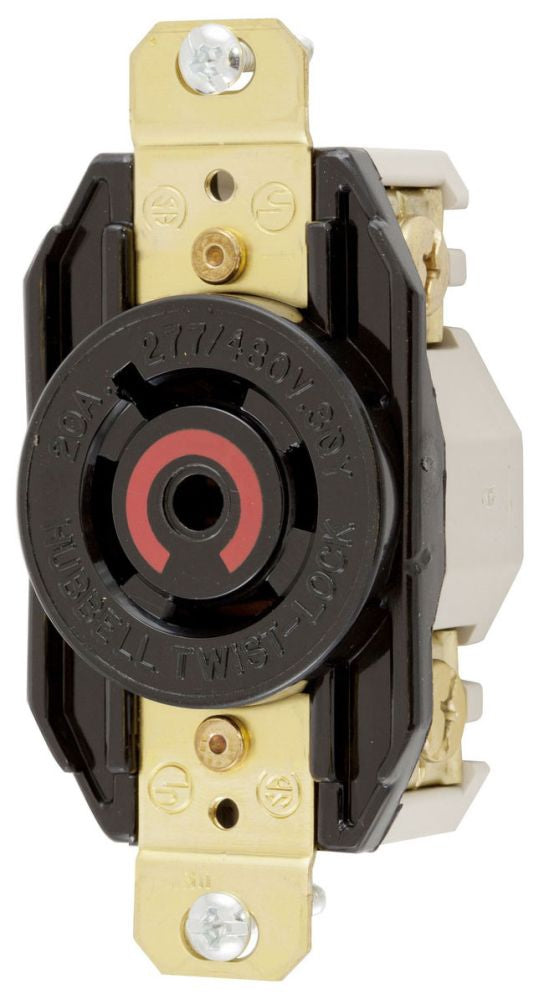

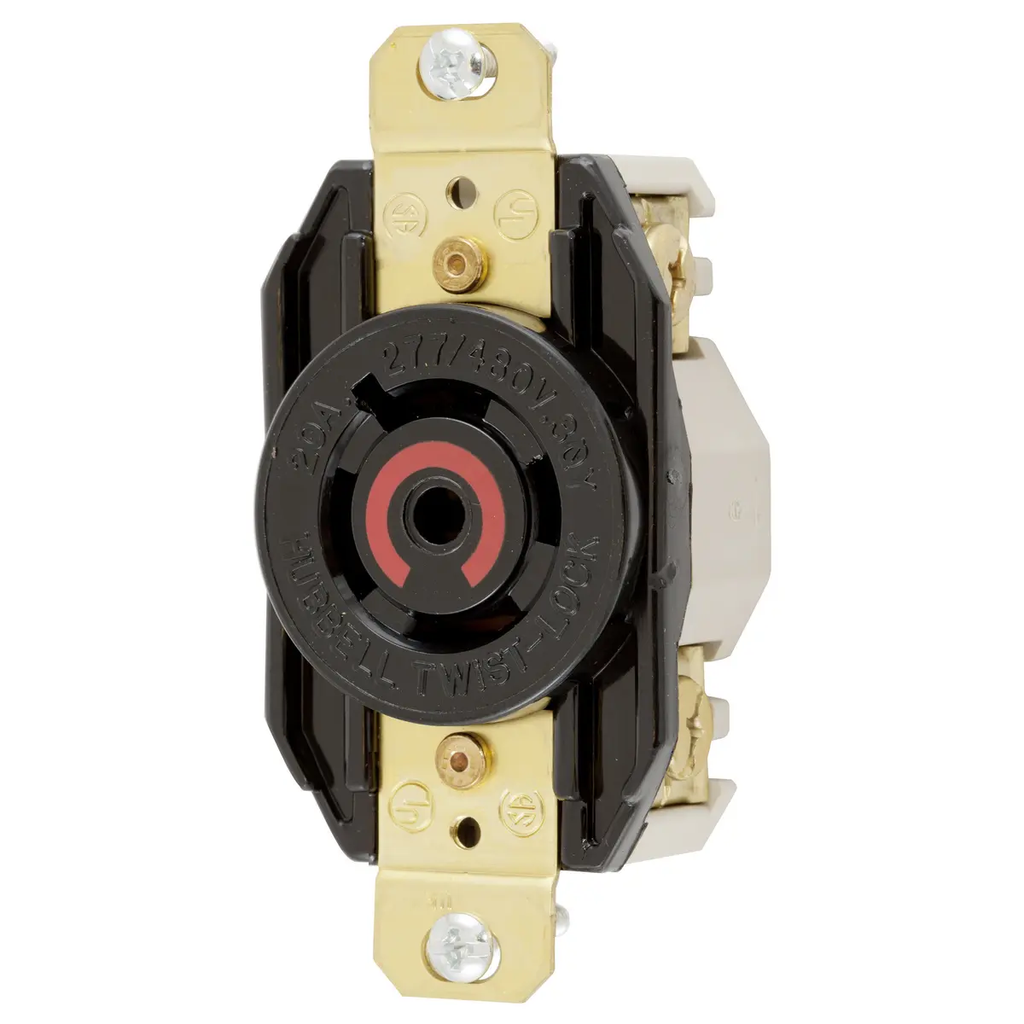

HBL2520 is a Hubbell industrial-grade 20 amp, 277/480 volt, 4-pole, 5-wire grounding twist-lock single flush receptacle designed for heavy-duty applications.This receptacle features a nylon body with screw mounting hardware and back and side wired screw terminals. It is rated for 20 amps and 3-phase WYE 277/480 VAC operation with a NEMA L22-20R configuration. The device withstands 2000 volts dielectric strength and operates in temperatures from -40°C to 75°C continuous. It meets UL 498, CSA C22.2 No. 42, Federal Specification W-C-596, and is RoHS compliant.
- Key Specifications
- Amperage: 20 A
- Voltage: 277/480 VAC 3-Phase WYE
- Poles: 4-Pole
- Wires: 5-Wire Grounding
- Mounting Type: Screw Mount
- Material: Nylon
- Terminal Type: Back and Side Wired Screw Terminals
- Dielectric Strength: 2000 V minimum
- Temperature Rating: -40°C to 75°C continuous
- NEMA Configuration: L22-20R
- Certifications: UL 498, CSA C22.2 No. 42, Federal Spec W-C-596, RoHS Compliant
Specifications
- Part Number: HBL2520
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Family : HBL
- Voltage : 277/480 277/480
Product Data
- UPC : 783585235875
- GTIN : 00783585235851
- Dimensions : 3.28 in H x 1.7 in W x 1.23 in D 3.28 x 1.7 x 1.23 3.28 x 1.7 x 1.23 in
- Weight : 0.3
