Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL2513

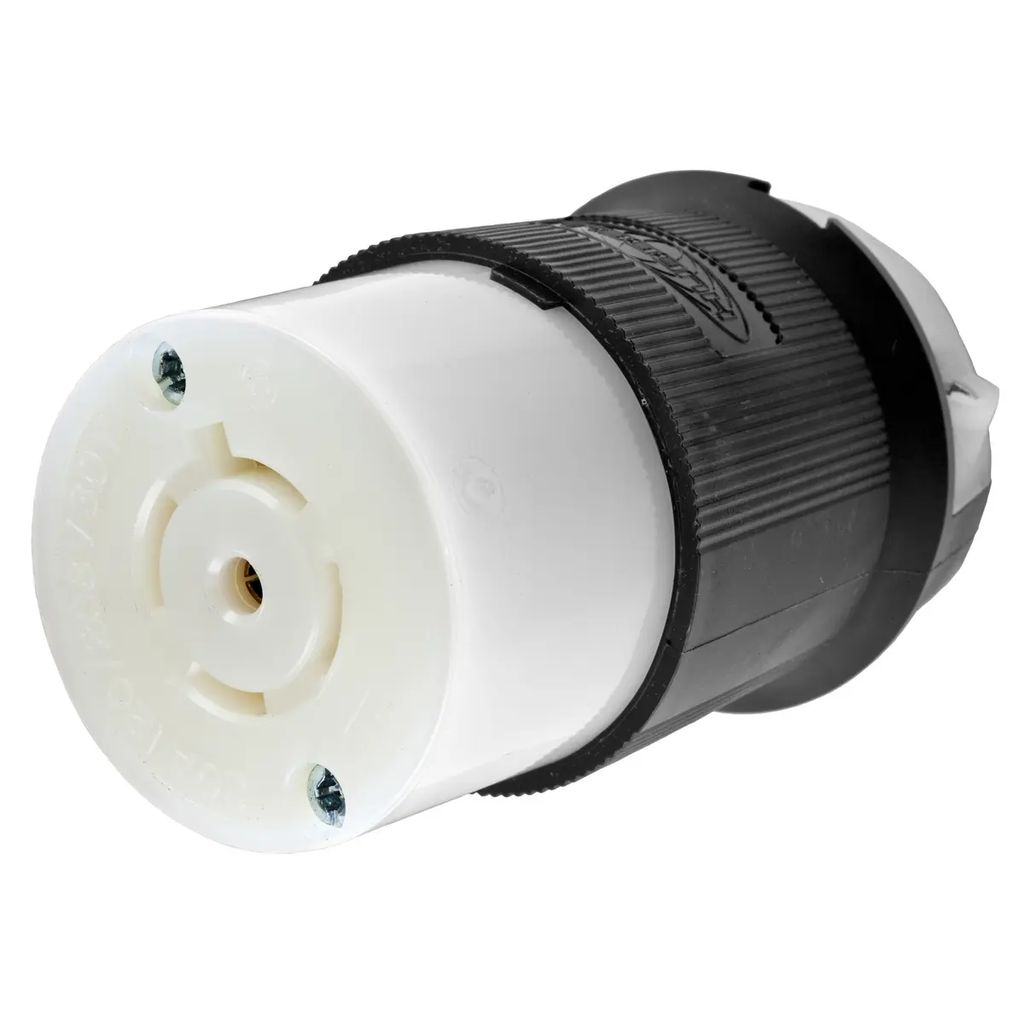

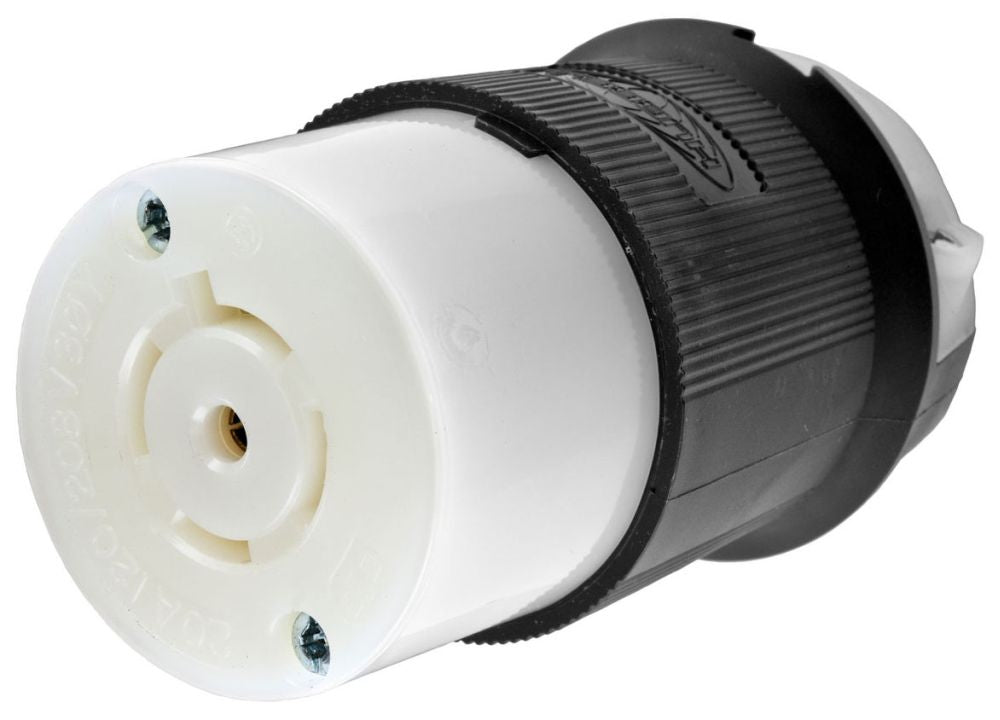

HBL2513 is a Hubbell 20 Amp, 120/208 Volt, 4-Pole, 5-Wire Twist-Lock female connector designed for industrial applications.This connector features a durable nylon insulated body with screw terminals, suitable for 3-Phase WYE systems. It supports wire sizes from #16 to #8 AWG and cord diameters from 0.350 to 1.150 inches. Rated for 20 amps and 120/208 VAC, it meets NEMA L21-20R standards and withstands dielectric voltage of 2000V minimum. The design includes a superior cord grip to protect terminations and an integral dust shield for wiring chamber protection. Operating temperature ranges from -40°C to 75°C.
- Key Specifications
- Amperage: 20 A
- Voltage: 120/208 VAC 3-Phase WYE
- Poles: 4
- Wires: 5 (including ground)
- Mounting Type: Cord Mounted
- Terminal Type: Screw Terminals
- NEMA Rating: L21-20R
- Material: Nylon Insulated Body
- Cord Range: 0.350" to 1.150" diameter
- Wire Size: #16 to #8 AWG
- Dielectric Strength: 2000V minimum
- Operating Temperature: -40°C to 75°C
Specifications
- Part Number: HBL2513
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Voltage : 120/208 120/208
Product Data
- UPC : 783585038551
- GTIN : 00783585038551
- Dimensions : 2.33 x 2.33 x 3.86 in 3.84 in L x 2.22 in W
- Weight : 5.19
