Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL2510SW

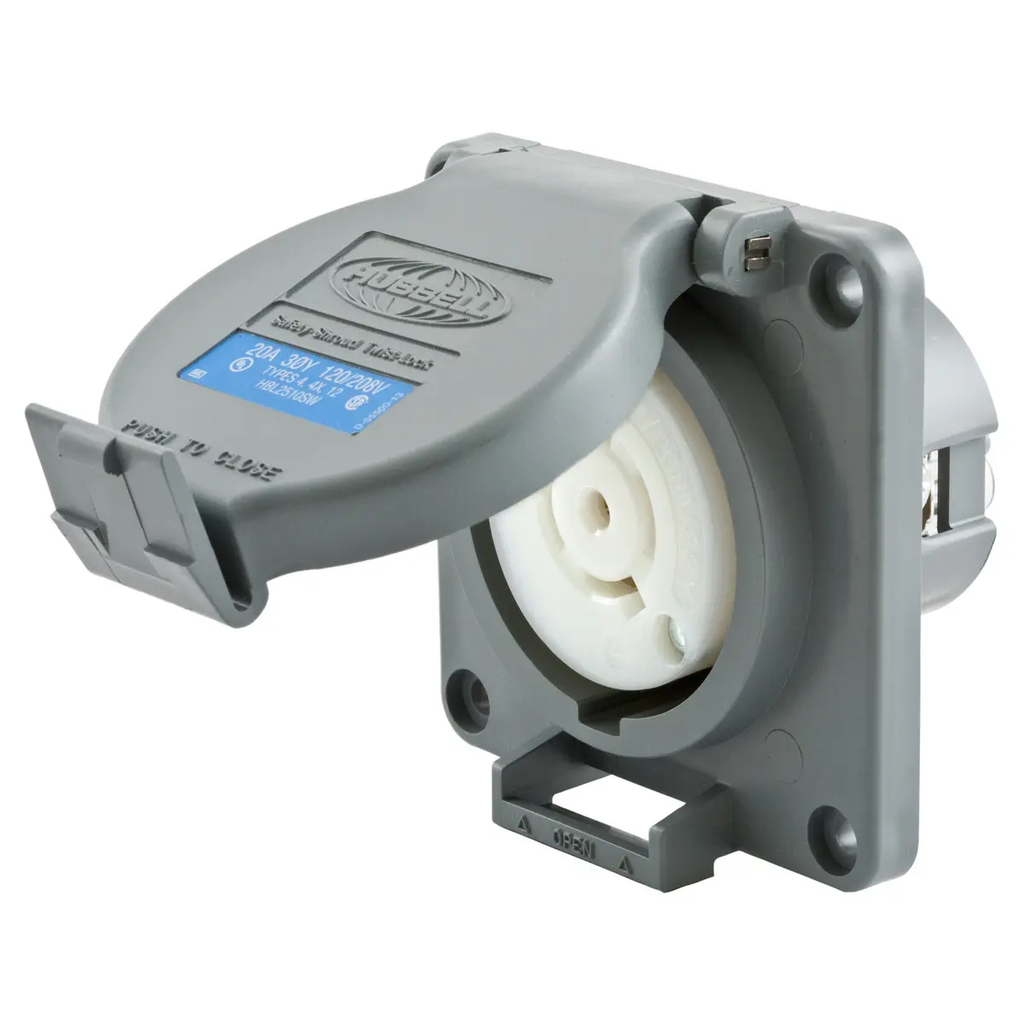

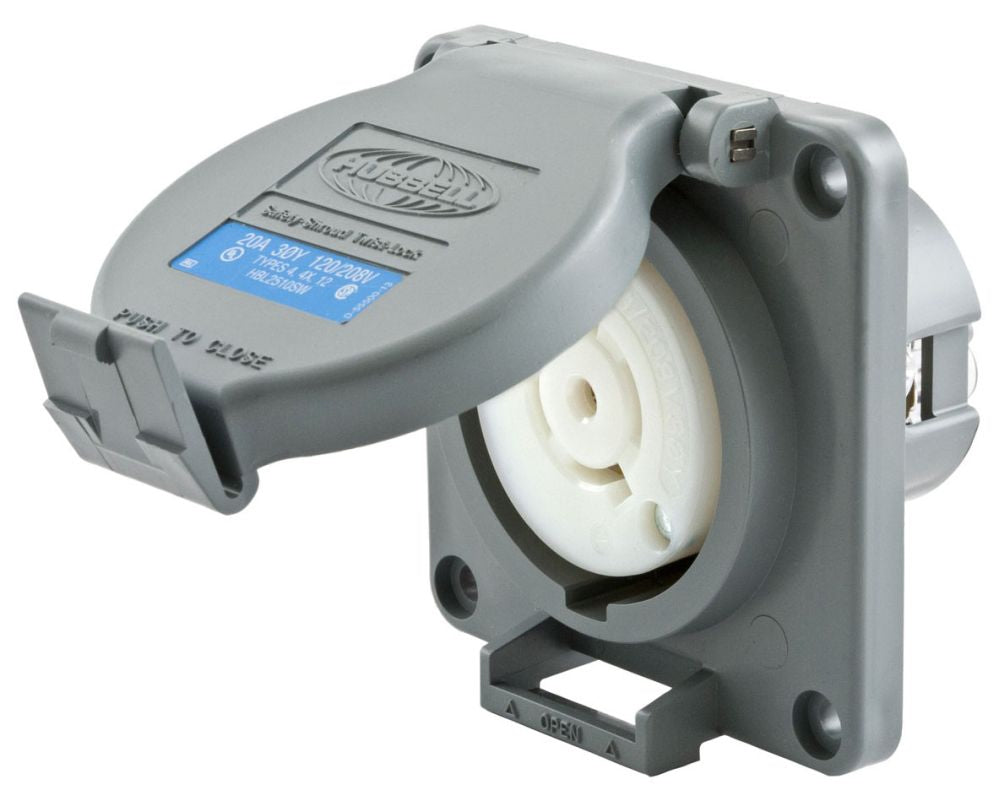

HBL2510SW is a 20 Amp, 120/208 VAC, 4-pole, 5-wire watertight safety-shroud receptacle from Hubbell designed for heavy-duty industrial applications.This receptacle features a shrouded watertight construction with back wired screw terminals, suitable for 3-phase WYE systems. It is UL listed and CSA certified to Type 4, 4X, and Type 12 standards, with a dielectric strength rating of 2,000V minimum. The device supports wire sizes from #16 AWG to #8 AWG and operates reliably in temperatures from -40°C to 75°C continuous.
- Key Specifications
- Amperage: 20 A
- Voltage: 120/208 VAC, 3-Phase WYE
- Poles: 4
- Wires: 5 (including ground)
- Mounting Type: Screw Mount
- Interrupt Rating: Dielectric strength 2,000V minimum
- Material: Valox™ thermoplastic
- Certifications: UL Listed, CSA Certified Type 4, 4X, 12
- NEMA Rating: L21-20R
- Connectivity: Back Wired Screw Terminals
- Operating Temperature: -40°C to 75°C continuous
- Dimensions: 3.75" x 3.75" x 2.9"
Specifications
- Part Number: HBL2510SW
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Family : HBL
- Voltage : 120/208 120/208
Product Data
- UPC : 783585231501
- GTIN : 00783585176802
- Dimensions : 3.75 in H x 3.75 in W x 2.9 in D 3.75 x 3.75 x 2.9 in
- Weight : 5.19
