Product Info
- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
HBL24CM23

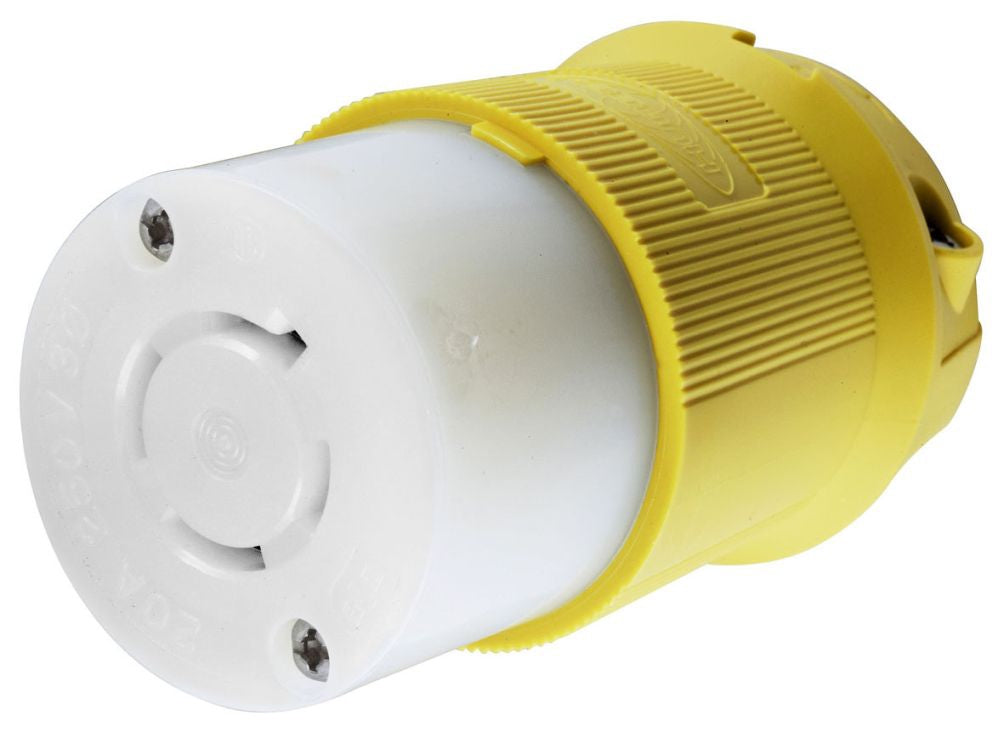

HBL24CM23 is a Hubbell Twist-Lock marine grade female connector designed for heavy-duty industrial and marine applications. This locking connector features a 3-pole, 4-wire grounding configuration with a NEMA L15-20R rating, providing secure and reliable power connections in demanding environments.Constructed with a corrosion-resistant composite housing and pressure screw terminals, the HBL24CM23 offers superior cord grip and impact protection. The connector is rated for 20A at 250VAC, suitable for three-phase delta systems, and supports conductor sizes from #16 AWG to #8 AWG. Its yellow color and insulated design ensure easy identification and safe operation.
- 20A Amperage Rating
- 250VAC Voltage Rating
- 3-Pole, 4-Wire Grounding
- NEMA L15-20R Configuration
- Twist-Lock Marine Grade
- Composite Housing
- Pressure Screw Terminal
- Conductor Size: #16 AWG to #8 AWG
- Operating Temperature: -40°C to 75°C
- UL 498, CSA C22.2 Certified
- RoHS Compliant
- Yellow Color
Specifications
- Part Number: HBL24CM23
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 250 Delta 250 Delta
Product Data
- UPC : 783585038506
- GTIN : 00783585235752
- Country of Origin : United States
- Dimensions : 2.33 x 2.33 x 3.86 in 3.86 in L x 2.21 in W x 2.33 in H
- Weight : 5.19
- Certification : Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting a full rated current; FED SPEC UL/CSA
