Product Info
- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
HBL24CM21

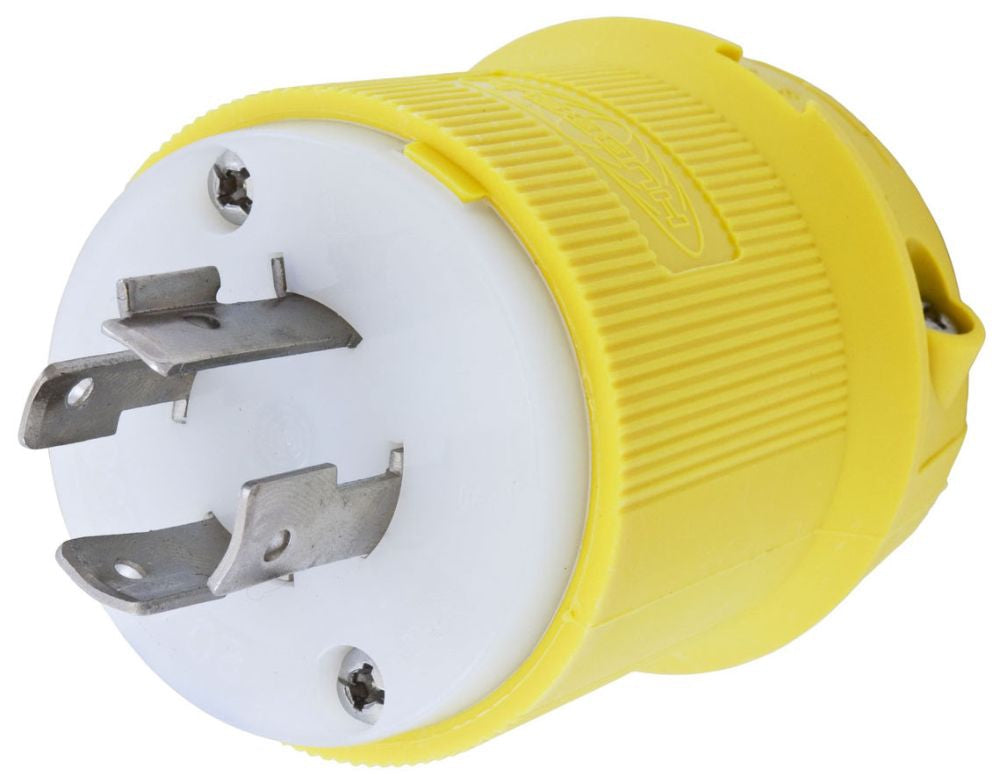

HBL24CM21 is a Hubbell 20A 250V 3-pole 4-wire NEMA L15-20P twist-lock locking plug designed for reliable and secure power connections in demanding environments. This marine-grade locking plug features a corrosion-resistant nylon housing and screw terminal connections for easy installation and long-lasting performance. The HBL24CM21 locking plug is engineered for three-phase power applications, offering a robust solution for industrial, commercial, and marine settings. Its ribbed nylon housing provides a secure grip and resistance to impact and chemicals, while the superior cord grip design protects terminations from excess strain. The plug is rated for use with cord diameters from 0.35 to 1.15 inches and operates within a wide temperature range.
- Amperage Rating: 20 A
- Voltage Rating: 250 V AC
- Number of Poles: 3
- Number of Wires: 4
- NEMA Configuration: L15-20P
- Mounting Type: Cord Mount
- Terminal Type: Screw
- Enclosure Rating: IP20
- Operating Temperature: -40 to 75 deg C
- Wire Size: #16 AWG to #8 AWG
- Housing Material: Nylon
- Housing Color: Yellow
- Certifications: UL 498, CSA C22.2 No.42, Fed.Spec. W-C-596
Specifications
- Part Number: HBL24CM21
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 250 250
Product Data
- UPC : 783585038490
- GTIN : 00783585038193
- Country of Origin : United States
- Dimensions : 2.33 in Dia x 2.75 in L 2.33 x 2.33 x 2.75 in
- Weight : 5.19
- Certification : Terminals identified in accordance with UL 498, FED SPEC UL/CSA
