Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL2446

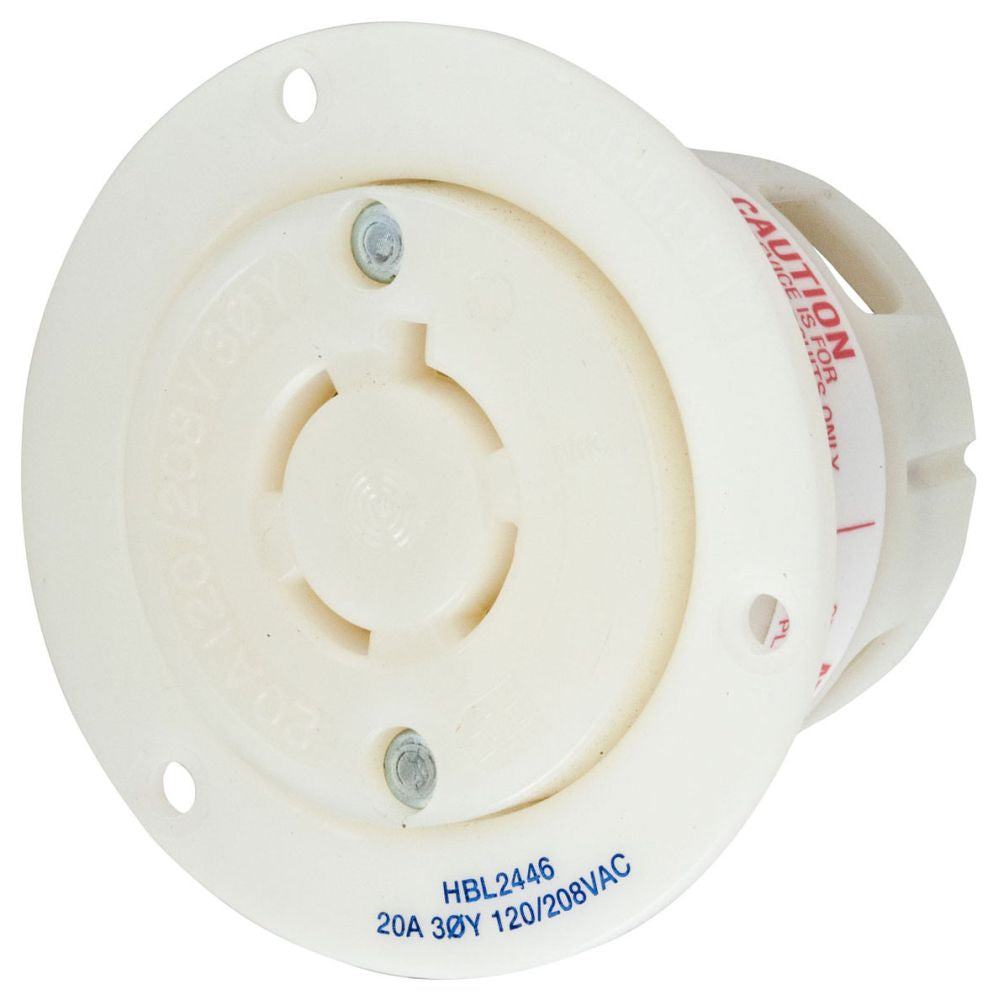

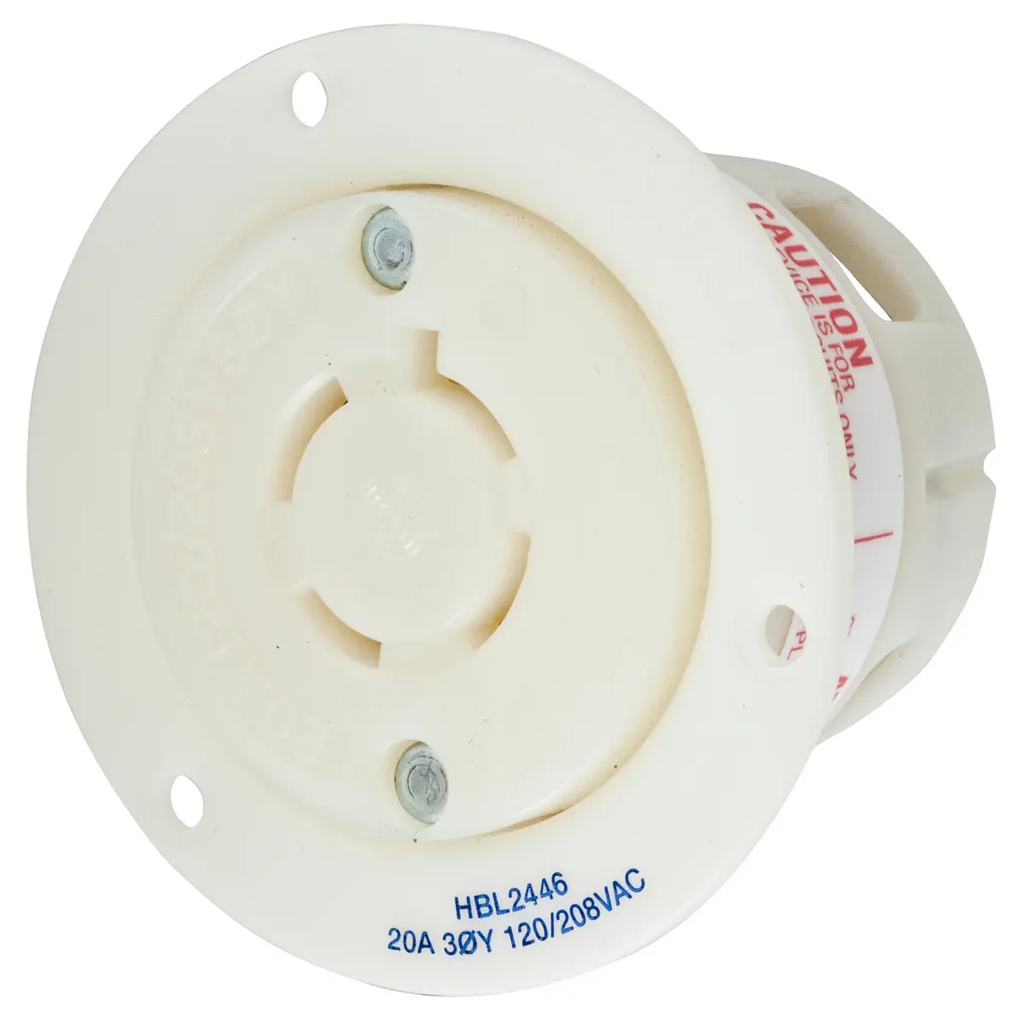

HBL2446 is a Hubbell 20 Amp, 120/208 Volt, 4-Pole 4-Wire Twist-Lock® flanged outlet receptacle designed for industrial power distribution.This flanged receptacle features a durable white nylon casing with back wired screw terminals for ease of installation. It is rated for 20 amps and 120/208 VAC in a 3-phase WYE configuration, with a NEMA L18-20R rating. The device supports conductor sizes from 16 AWG to 8 AWG and withstands a dielectric strength of 2,000 volts minimum. It is UL listed and CSA certified, suitable for indoor dry environments unless additional protection is provided. The mounting type is screw mount, and the product meets NEMA WD-1 and WD-5 standards.
- Amperage: 20 A
- Voltage: 120/208 VAC
- Poles: 4
- Wires: 4
- NEMA Configuration: L18-20R
- Mounting Type: Screw Mount
- Material: White Nylon
- Terminal Connection: Back Wired Screw Terminals
- Phase: 3-Phase WYE
- Dielectric Strength: 2,000 V minimum
- Certifications: UL Listed, CSA Certified
- Application: Industrial Power Distribution
Specifications
- Part Number: HBL2446
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 120/208 120/208
Product Data
- UPC : 783585038384
- GTIN : 00783585038384
- Dimensions : 2.23 in Dia x 2.27 in L 3.06 x 3.06 x 2.27 in
- Weight : 0.3
