Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL2443

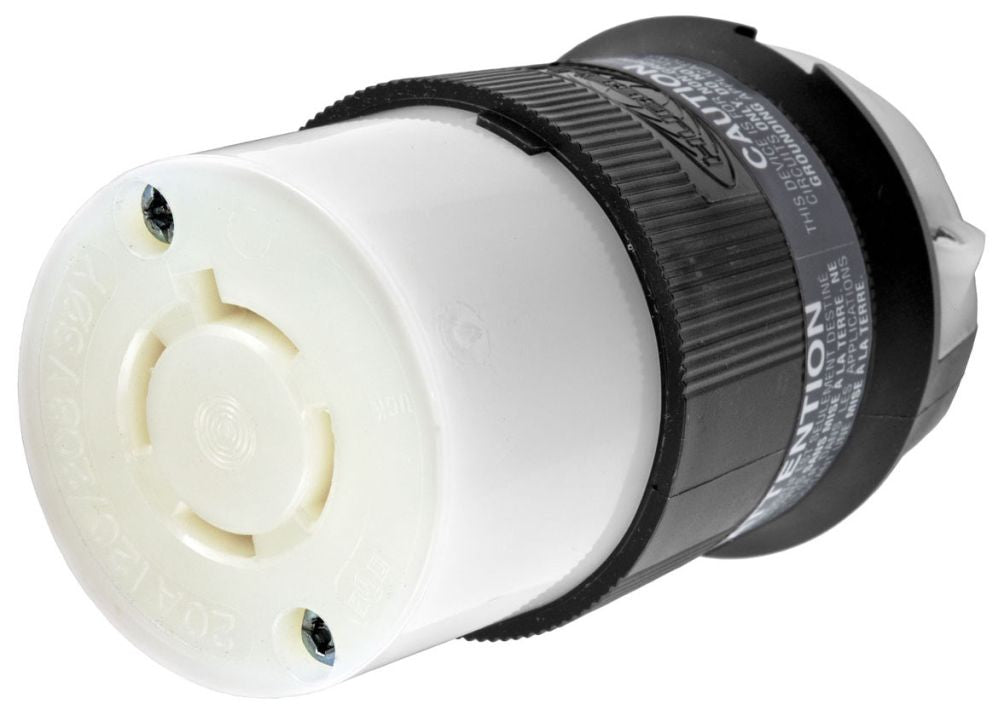

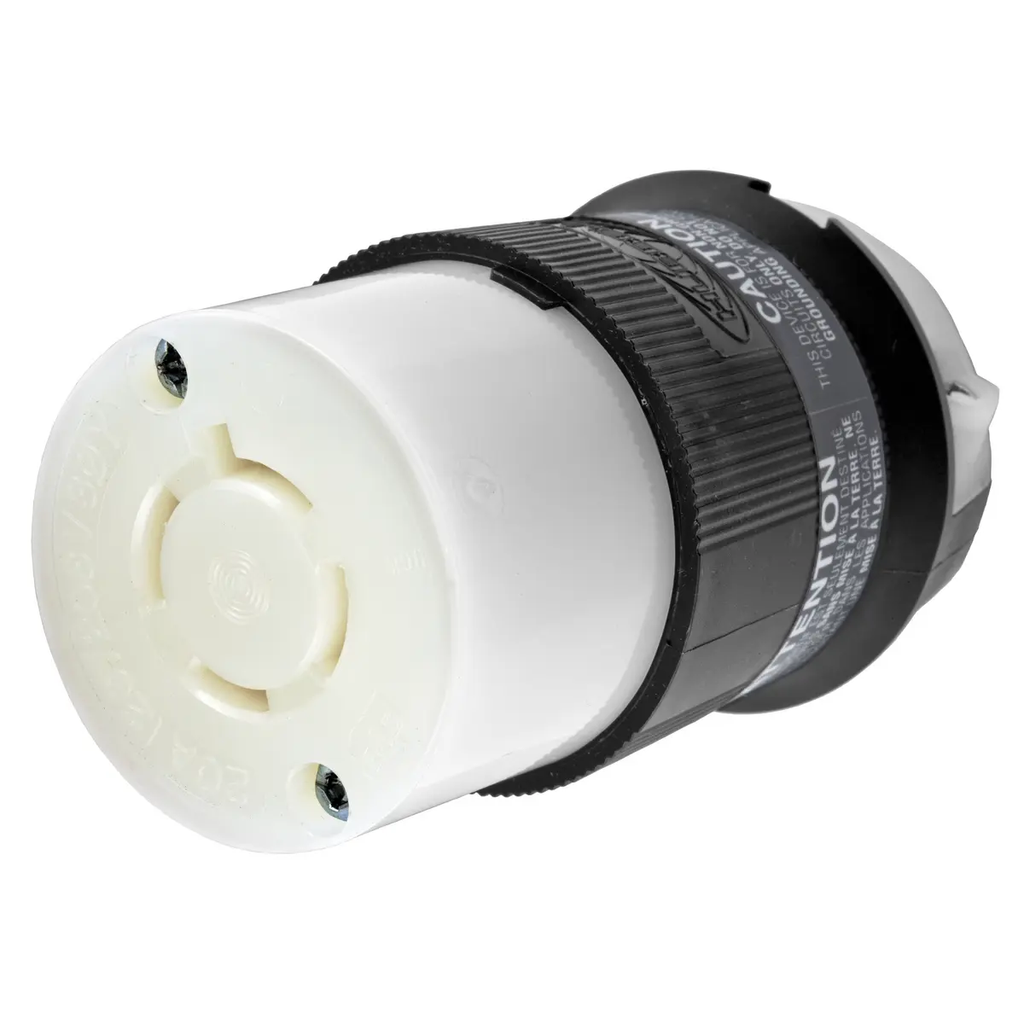

HBL2443 is a Hubbell 20 Amp, 120/208 Volt AC, 4-Pole 4-Wire Non-Grounding Twist-Lock Connector Body designed for industrial electrical applications.This female Insulgrip® connector body features a straight design with black and white nylon construction. It is rated for 20 Amps and 3-Phase WYE 120/208V AC service, configured as NEMA L18-20R. The device includes screw terminals accommodating #12 AWG conductors and is UL and CSA certified for current interrupting at full rated current. It withstands dielectric voltage of 2,000V minimum and operates in temperatures from -40°C to 75°C. The connector is designed with a clear polycarbonate terminal retainer and brass contacts for reliable performance.
- Amperage: 20 Amps
- Voltage: 120/208V AC, 3-Phase WYE
- Poles and Wires: 4-Pole, 4-Wire Non-Grounding
- Device Style: Twist-Lock
- Configuration: NEMA L18-20R
- Body Material: Black and White Nylon
- Terminal Type: Screw Terminal
- Dielectric Voltage Withstand: 2,000V minimum
- Operating Temperature: -40°C to 75°C
- Certifications: UL Listed, CSA Certified
- Cord Diameter Accommodation: 0.35" - 1.15" (9-29 mm)
Specifications
- Part Number: HBL2443
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Functions : LIG - Long-Time, Instantaneous and Ground Fault
- Protection : Solid State
- Compatible Frames : SSD,SHD,SSF,SHF
Product Data
- UPC : 783585038360
- GTIN : 783585038360
- Weight : 0.5
