Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL2440

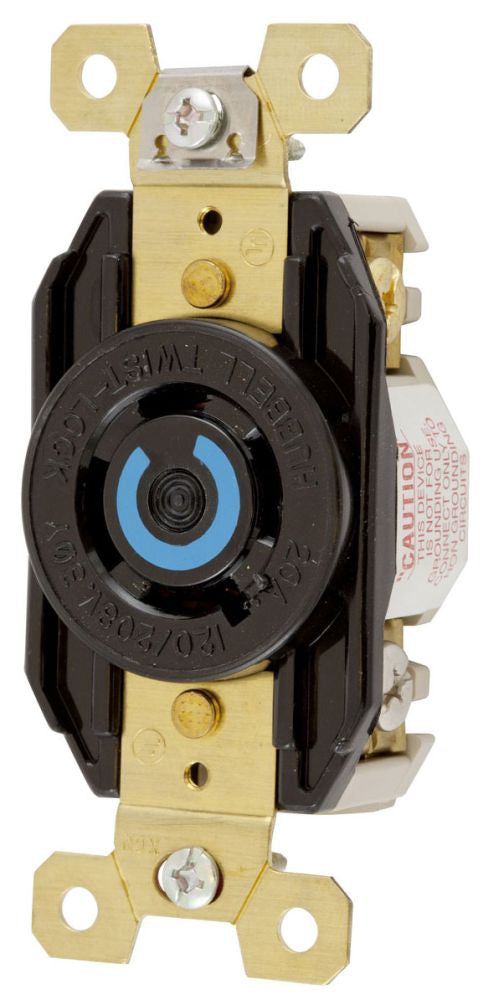

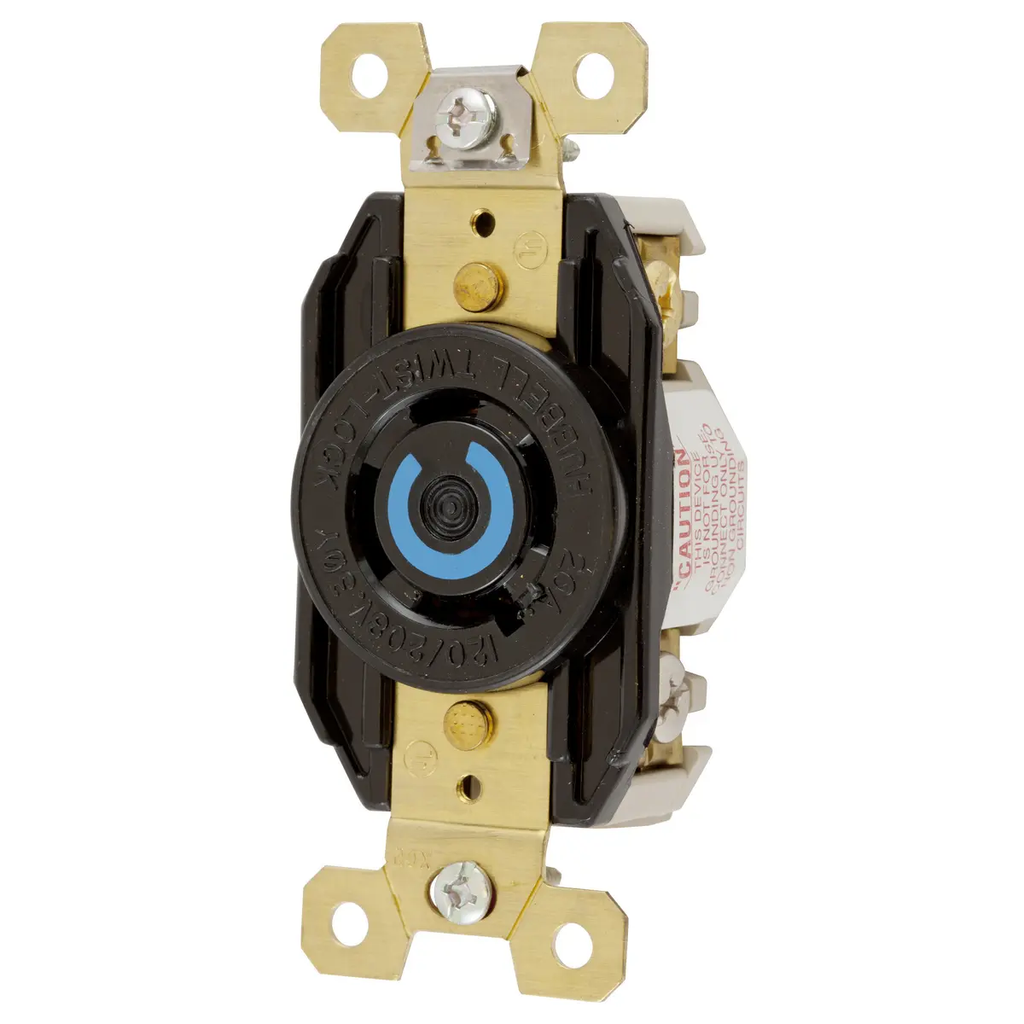

HBL2440 is a Hubbell industrial-grade Twist-Lock® flush receptacle rated for 20 amps and 120/208 volts AC in a 4-pole, 4-wire configuration with NEMA L18-20R rating.This heavy duty single flush receptacle features a 3-phase WYE design, screw terminal connections for back and side wiring, and a durable nylon construction suitable for indoor dry environments. It withstands dielectric voltage of 2,000V minimum and is certified for current interrupting at full rated current. The device supports wire sizes from #16 AWG to #8 AWG and is TAA compliant through December 2024.
- Key Specifications
- Amperage: 20 A
- Voltage: 120/208 VAC, 3 Phase WYE
- Poles: 4
- Wires: 4-Wire Non-Grounding
- NEMA Rating: L18-20R
- Mounting Type: Screw Mount, Flush
- Terminal Connection: Back and Side Wired Screw Terminals
- Material: Nylon
- Dielectric Strength: Withstands 2,000V minimum
- Operating Temperature: -40°C to 75°C continuous
- Certifications: UL 498, NEMA WD-1, WD-5, RoHS Compliant
- Application: Heavy Duty Industrial
Specifications
- Part Number: HBL2440
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 120/208 120/208
Product Data
- UPC : 783585235790
- GTIN : 00783585235790
- Dimensions : 1.234 in D 1.234 in W
- Weight : 0.3
