Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL2433SW

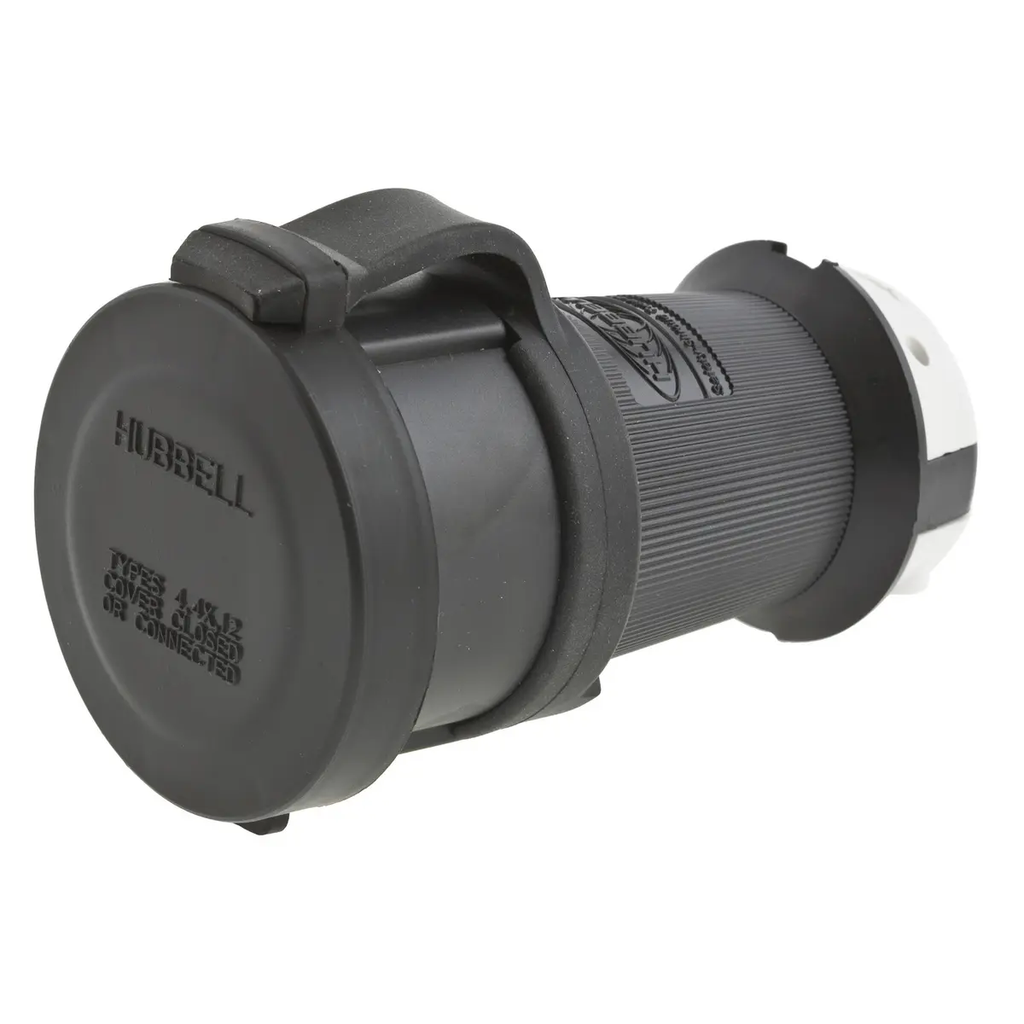

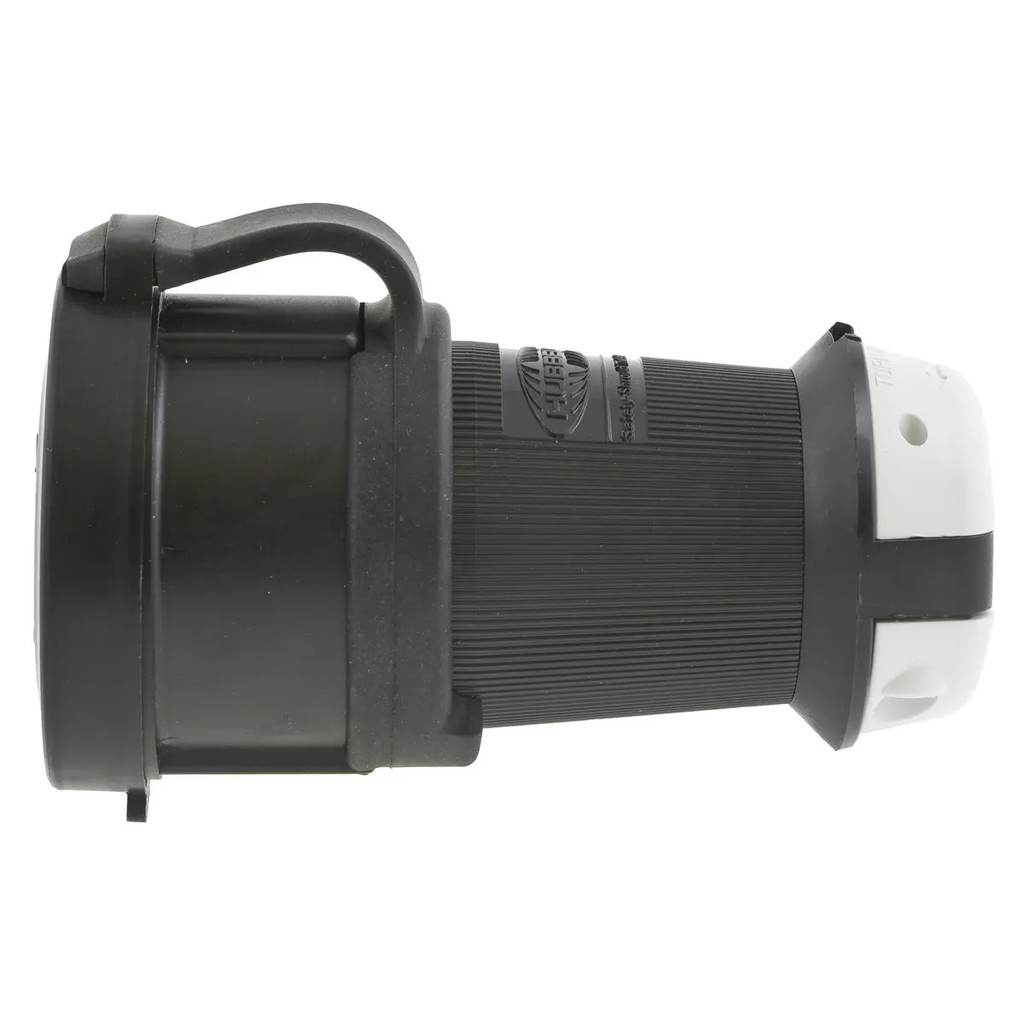

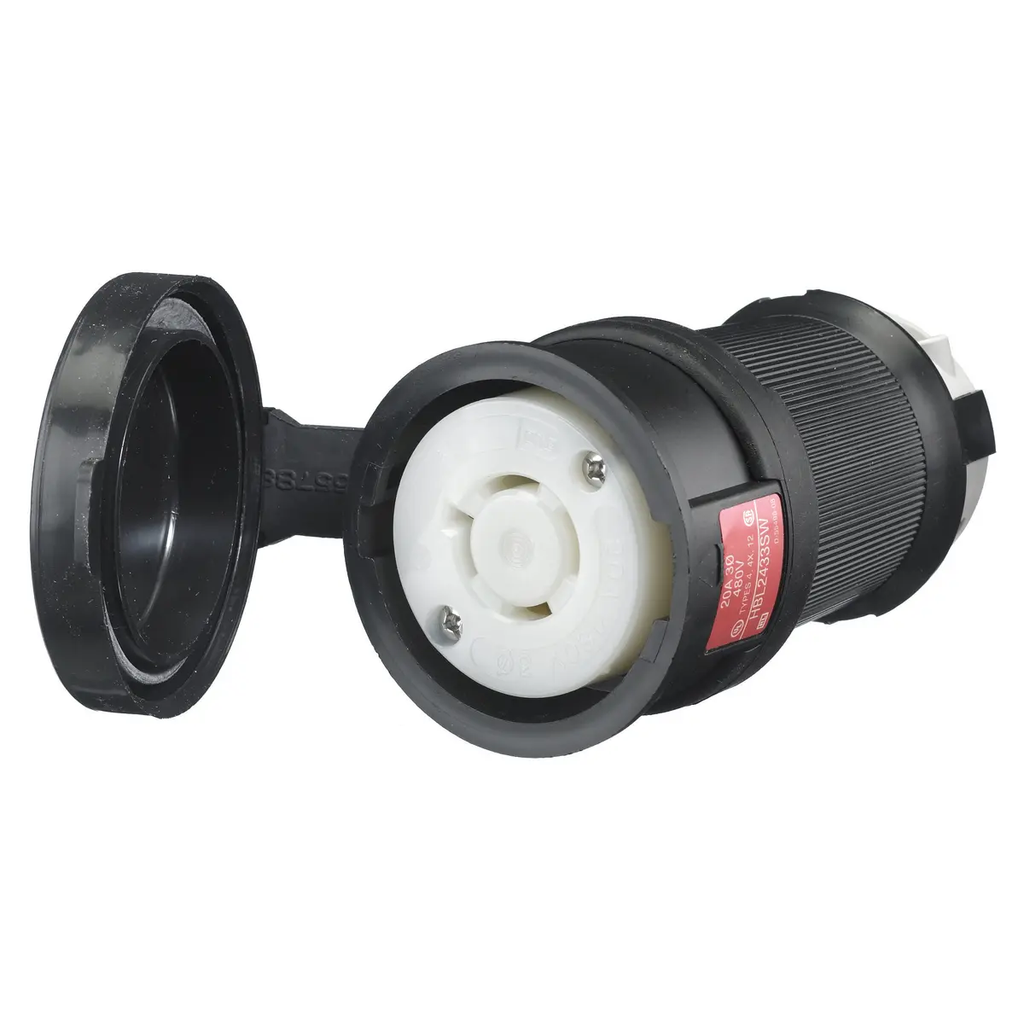

HBL2433SW is a 20A, 3-pole, 4-wire watertight safety shroud connector body designed for industrial environments requiring reliable 480V AC connections. This Hubbell device features a durable composite housing and a watertight design for secure, safe terminations in demanding applications. The connector body is engineered for cord mounting and features a pressure screw terminal for secure wire attachment. It is rated for continuous operation up to 75°C and is suitable for use in harsh environments due to its UL Type 4X environmental seal. The included closure cap provides additional protection when the device is not in use.
- Amperage Rating: 20 A
- Voltage Rating: 480 V AC
- Number of Poles: 3-Pole
- Number of Wires: 4-Wire Grounding
- Mounting Type: Cord Mounted
- Interrupt Rating: Not specified
- Series/Frame: Safety Shroud
- Connection Type: Pressure Screw Terminal
- Temperature Rating: -40°C to 75°C
- Material: Composite Housing
- Environmental Rating: UL Type 4X, Watertight
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: HBL2433SW
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 480 480
Product Data
- UPC : 783585231464
- GTIN : 00783585231464
- Dimensions : 2.75 in Dia x 4.4 in L 2.75 x 2.75 x 4.4 2.75 x 2.75 x 4.4 in
- Weight : 5.19
