Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL2433

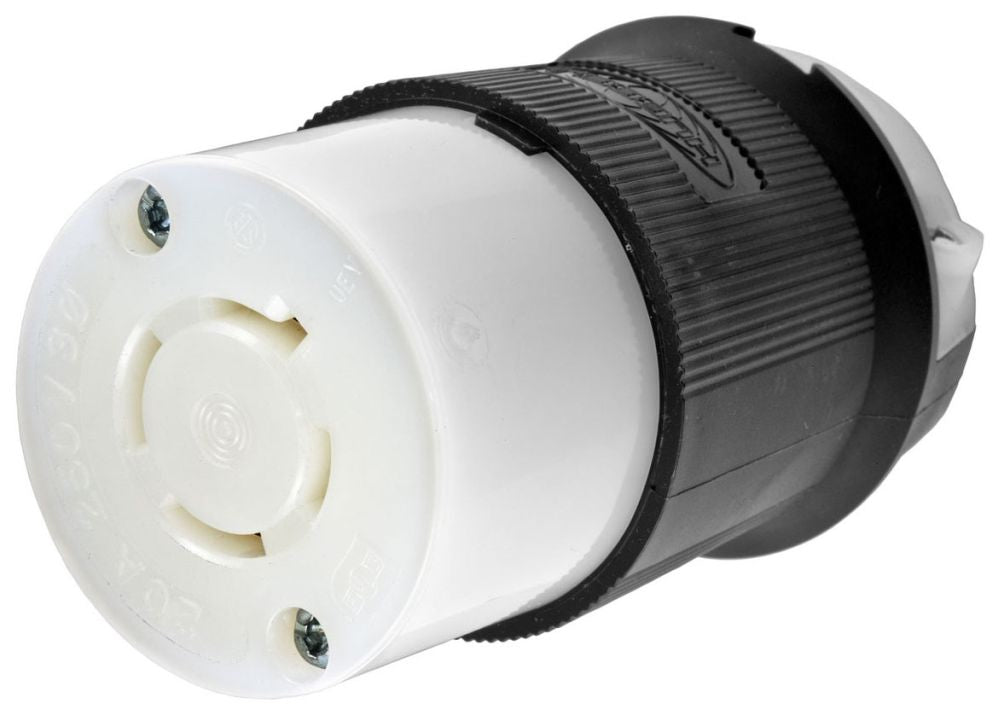

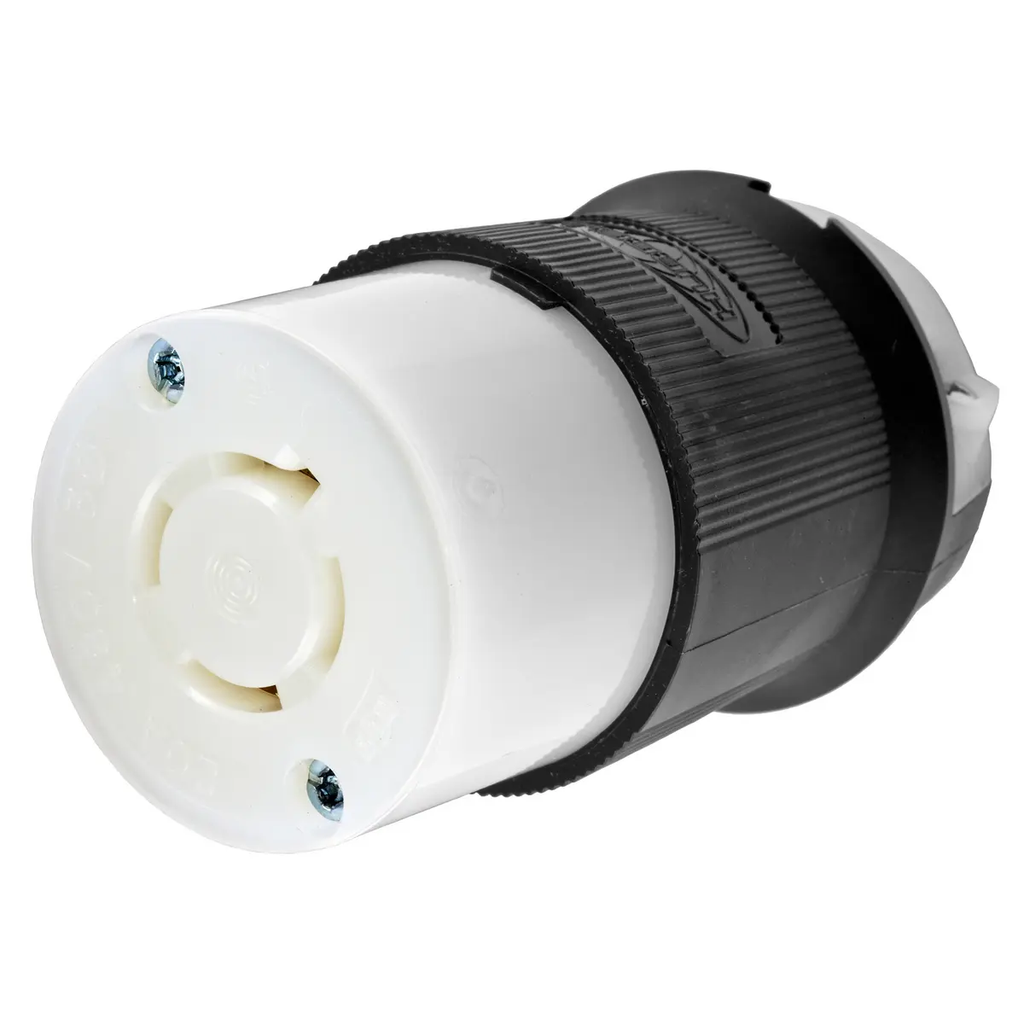

HBL2433 is a 20 amp, 3-pole, 4-wire grounding locking connector body designed for 3-phase 480VAC applications by Hubbell.
This Insulgrip® connector features a black and white nylon insulated body with screw pressure terminal connections. It supports a cable range of 0.350 to 1.150 inches diameter and is rated for continuous operation from -40°C to 75°C without impact. The connector is designed for indoor dry environments unless otherwise protected and meets industry standards including NEMA L16-20R configuration. It withstands dielectric voltage of 2,000 volts minimum and is certified for current interrupting at full rated current.
- Amperage Rating: 20 A
- Voltage Rating: 3 Phase 480 VAC
- Number of Poles: 3
- Number of Wires: 4 (including ground)
- Material: Nylon Insulated Body
- Mounting Type: Cord Mounted
- Cable Range: 0.350" to 1.150" diameter
- Temperature Rating: -40°C to 75°C continuous
- Dielectric Strength: Withstands 2,000V minimum
- NEMA Configuration: L16-20R
- Connection Type: Pressure Terminal Screws
- Phase: Three Phase
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL2433
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Family : HBL
- Voltage : 480 480
Product Data
- UPC : 783585038292
- Dimensions : 2.33 x 2.33 x 3.86 in 3.86 in L x 2.33 in W
- Weight : 5.19
