Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL2431S

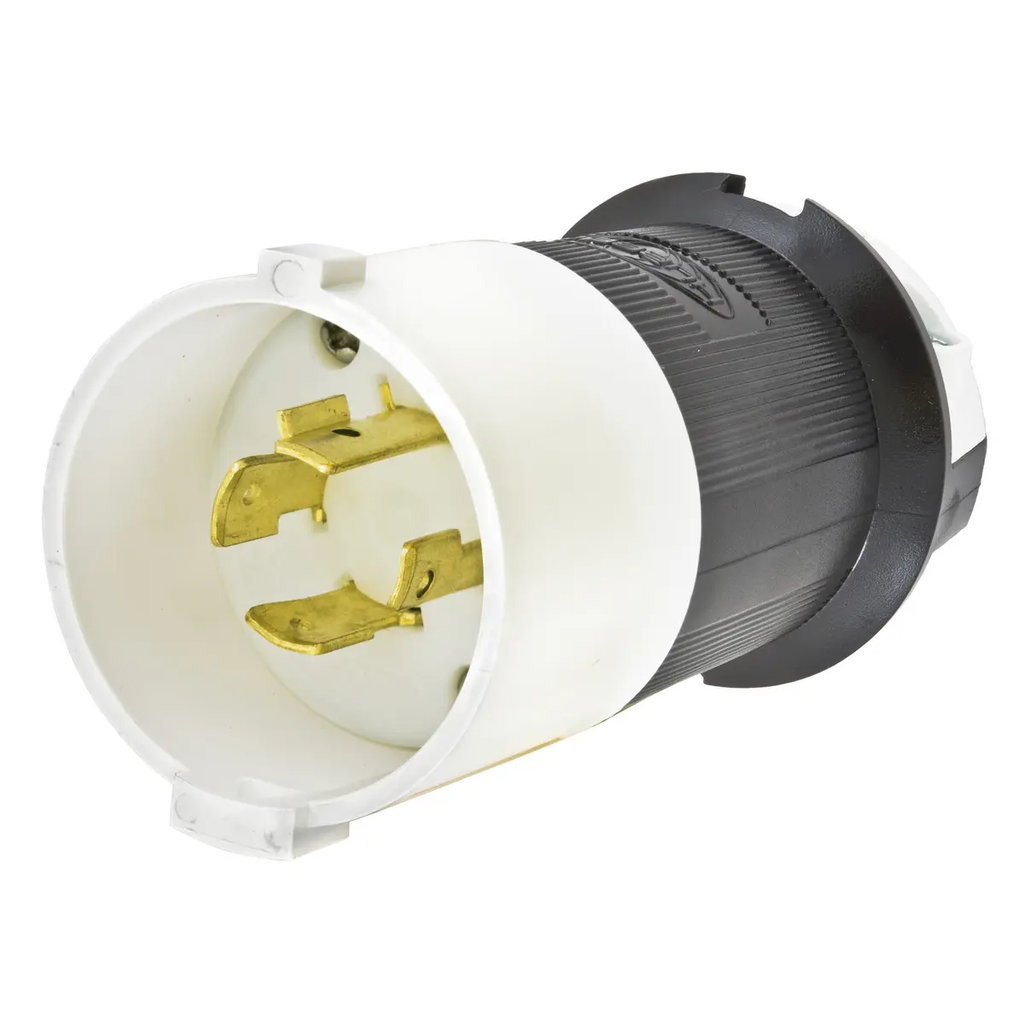

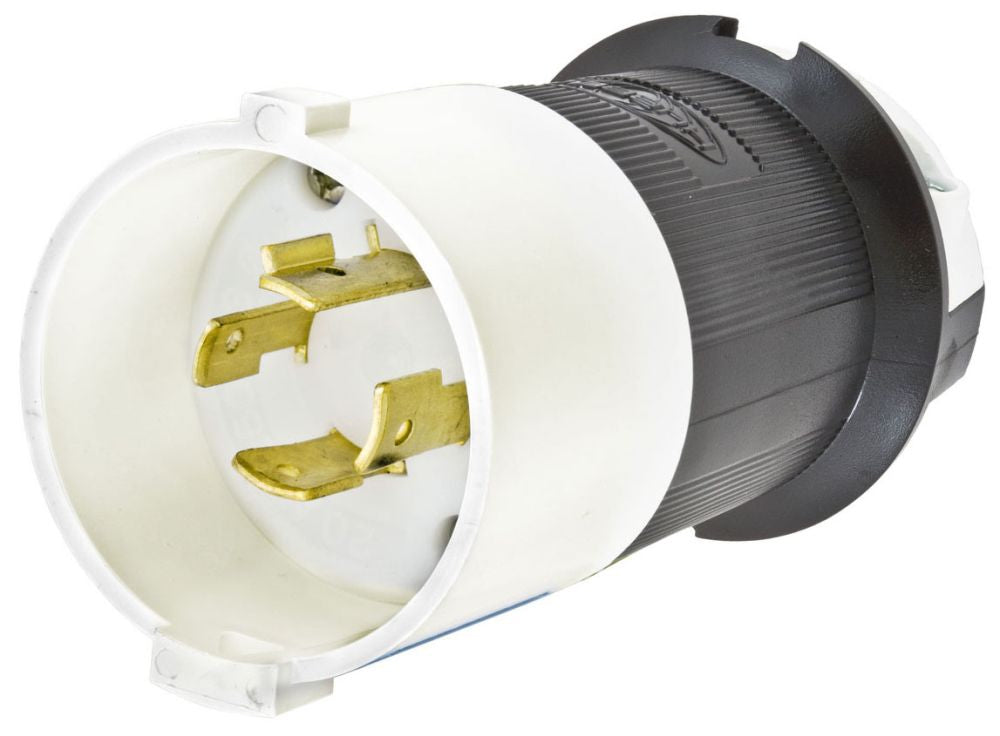

HBL2431S is a 20 Amp, 480 Volt AC, 3-Pole, 4-Wire locking plug with a safety shroud from Hubbell. HBL2431S features a durable nylon housing and is designed for 3-phase delta power applications with a NEMA L16-20P configuration. It supports cord diameters from 0.350 to 1.150 inches and accommodates wire sizes from #16 AWG to #8 AWG. The plug is rated for 20A continuous current with a dielectric strength of 2,000V minimum and is suitable for indoor dry environments. It includes pressure terminal screws and is certified to UL 498 and CSA C22.2 standards.
- Key Specifications
- Amperage: 20 A
- Voltage: 480 VAC, 3-Phase Delta
- Poles: 3-Pole
- Wires: 4-Wire Grounding
- NEMA Configuration: L16-20P
- Material: Nylon housing with brass blades
- Cord Range: 0.350" to 1.150" diameter
- Wire Size: #16 AWG to #8 AWG
- Operating Temperature: -40°C to 75°C continuous
- Certifications: UL 498, CSA C22.2, RoHS status by manufacturer
- Horsepower Rating: 5 HP
- Mounting Type: Cord Mounted
Specifications
- Part Number: HBL2431S
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 480 480
Product Data
- UPC : 783585234625
- GTIN : 00783585038278
- Dimensions : 2.33 in Dia x 4.21 in L 2.33 x 2.23 x 4.21 in
- Weight : 0.3
