Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL2430SW

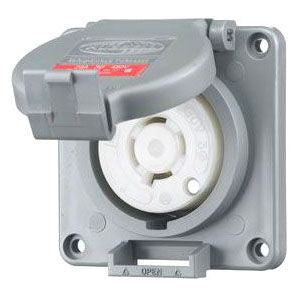

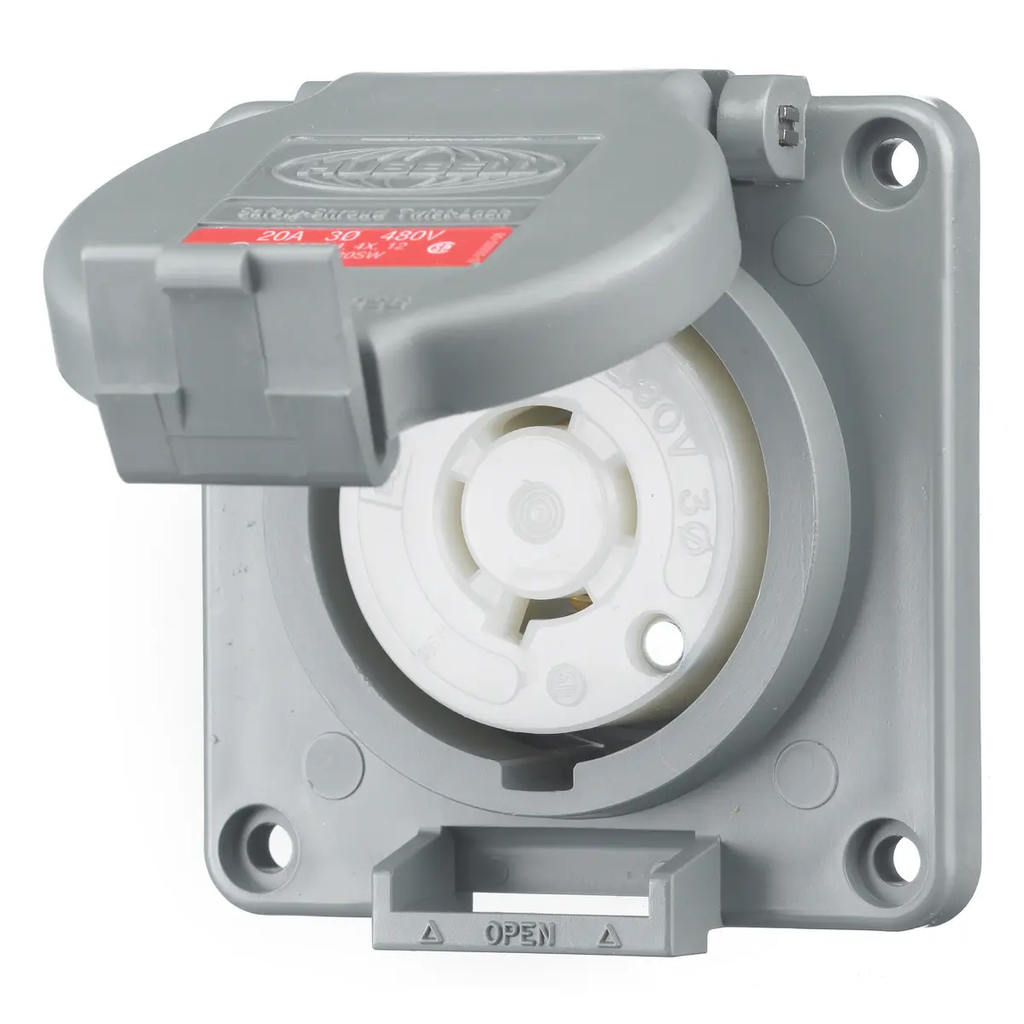

HBL2430SW is a 20 Amp, 480 Volt, 3-Pole 4-Wire locking watertight safety shroud receptacle by Hubbell designed for demanding electrical applications.This receptacle features a durable gray PBT housing with screw terminals, UL Listed and CSA Certified for Type 4, 4X, and Type 12 environments. It supports 3-phase delta 480V AC systems with a 20A interrupt rating and includes a shrouded watertight design for enhanced safety and environmental protection. The device is rated for continuous operation from -40°C to 75°C and withstands dielectric voltage of 2,000V minimum.
- Key Specifications
- Amperage: 20 A
- Voltage: 480 V AC, 3-Phase Delta
- Poles: 3
- Wires: 4 (including ground)
- Mounting Type: Screw Mount
- Interrupt Rating: Full rated current UL 498 certified
- Series/Frame: NEMA L16-20R
- Housing Material: Gray PBT Thermoplastic
- Certifications: UL Listed, CSA Certified
- Operating Temperature: -40°C to 75°C
- Dielectric Strength: 2,000 V minimum
- Weight: 0.65 lb
Specifications
- Part Number: HBL2430SW
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 480 480
Product Data
- UPC : 783585231426
- GTIN : 00783585038346
- Dimensions : 3.75 in L x 2.69 in W x 3.75 in H 3.75 x 3.75 x 2.9 in
- Weight : 5.19
