Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL2430

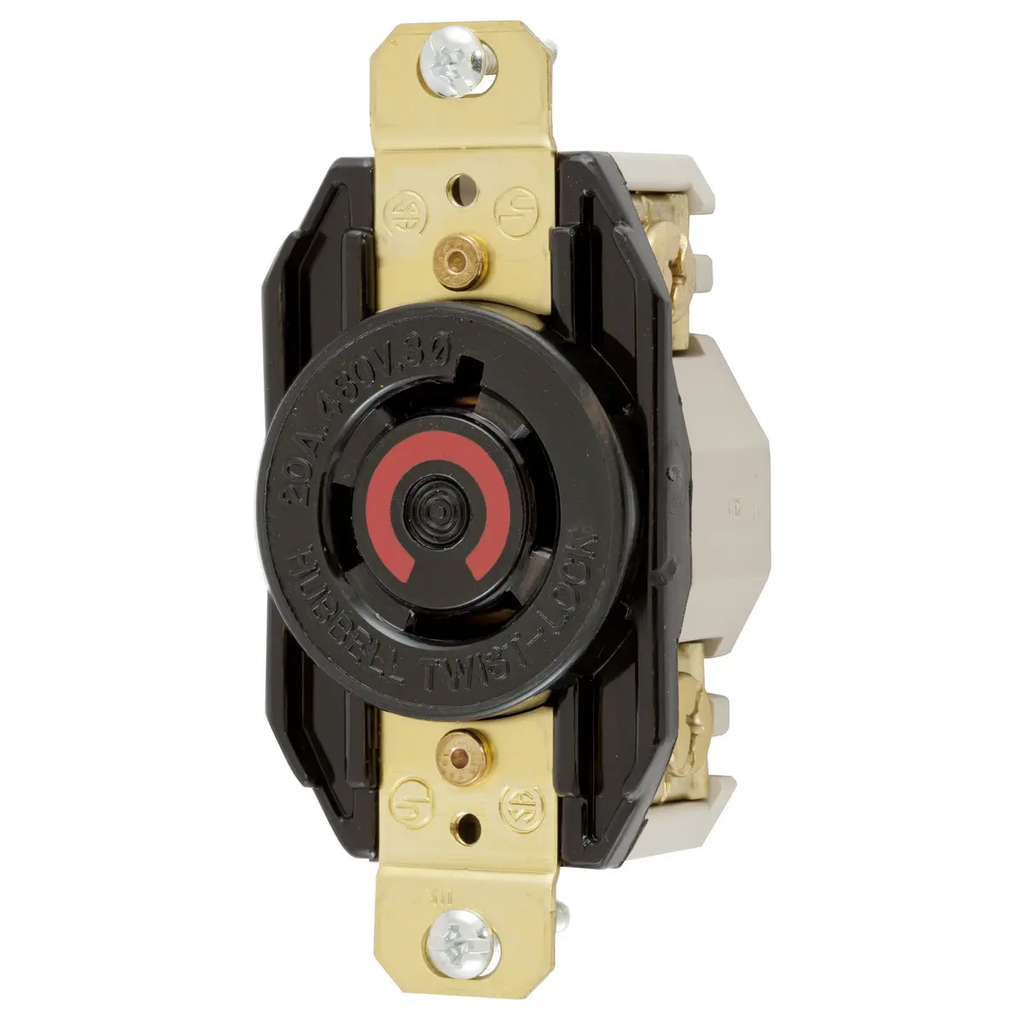

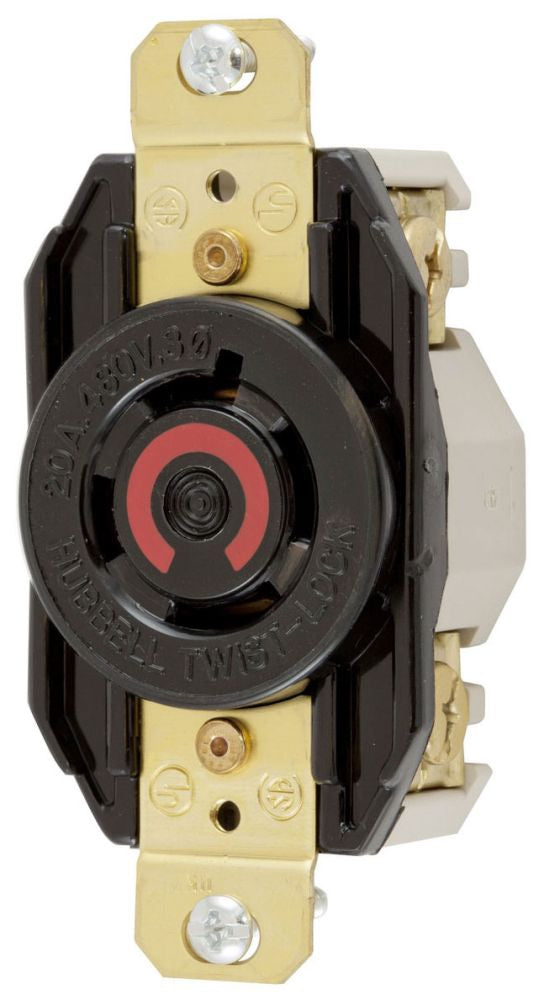

HBL2430 is a Hubbell Twist-Lock® heavy duty single flush receptacle rated for 20 amps and 480 volts AC with 3 poles and 4-wire grounding, NEMA L16-20R configuration.This industrial-grade receptacle features a nylon face and body with screw mounting and terminals designed for back and side wiring. It supports 3-phase 480V AC power with a 20A amperage rating and 3-pole, 4-wire grounding configuration. The device includes wire restraint recesses to reduce terminal loosening, all-brass mounting and grounding for corrosion resistance, and meets UL 498, CSA C22.2 No.42, and NEMA WD-1, WD-5 standards. It is suitable for indoor dry environments and withstands a dielectric strength of 2000V minimum.
- Amperage: 20A
- Voltage: 480V AC, 3-Phase
- Poles: 3
- Wires: 4-Wire Grounding
- NEMA Configuration: L16-20R
- Material: Nylon face and body
- Mounting Type: Screw, recessed/flush
- Terminal Connection: Screw, back and side wired
- Interrupt Rating: 9600W
- Standards: UL 498, CSA C22.2 No.42, NEMA WD-1, WD-5
- Operating Temperature: -40°C to 75°C
- Color: Black
Specifications
- Part Number: HBL2430
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 480 480
Product Data
- UPC : 783585235776
- GTIN : 00783585235776
- Dimensions : 3.28 in H x 1.7 in W x 1.23 in D 3.28 x 1.7 x 1.23 in
- Weight : 5.19
