HBL2420 - Hubbell 20A 250V 3-Phase 3-Pole 4-Wire Grounding Twist-Lock Receptacle, NEMA L15-20R, Industrial Grade, Screw Mount, Nylon, Black

Save $16.09
SKU: HBL2420-New
Condition: New
Price:
$44.81 $60.90
Stock:
53 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

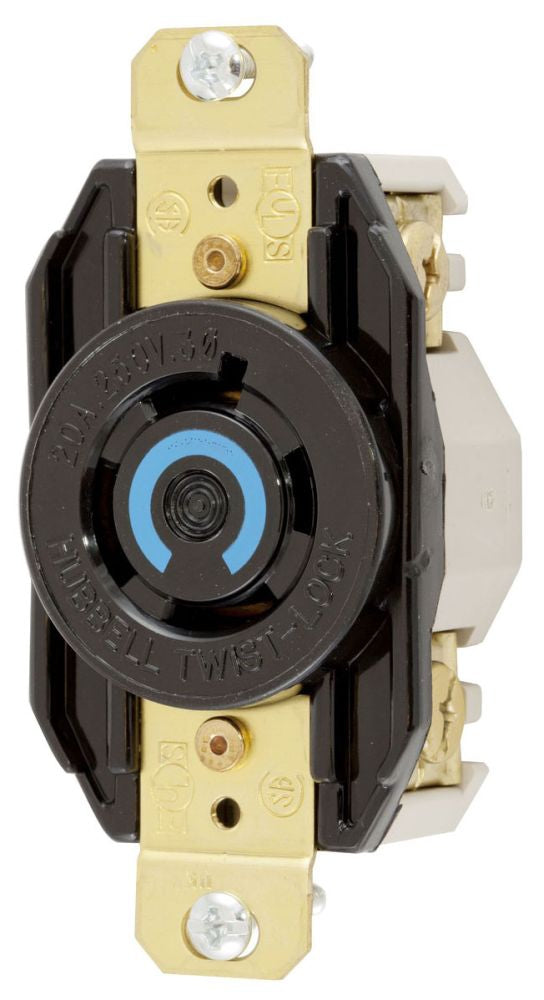

HBL2420 Hubbell Industrial Twist-Lock® Flush Receptacle 20A 3-Phase 250V AC 3-Pole 4-Wire Grounding - Essential Electric Supply

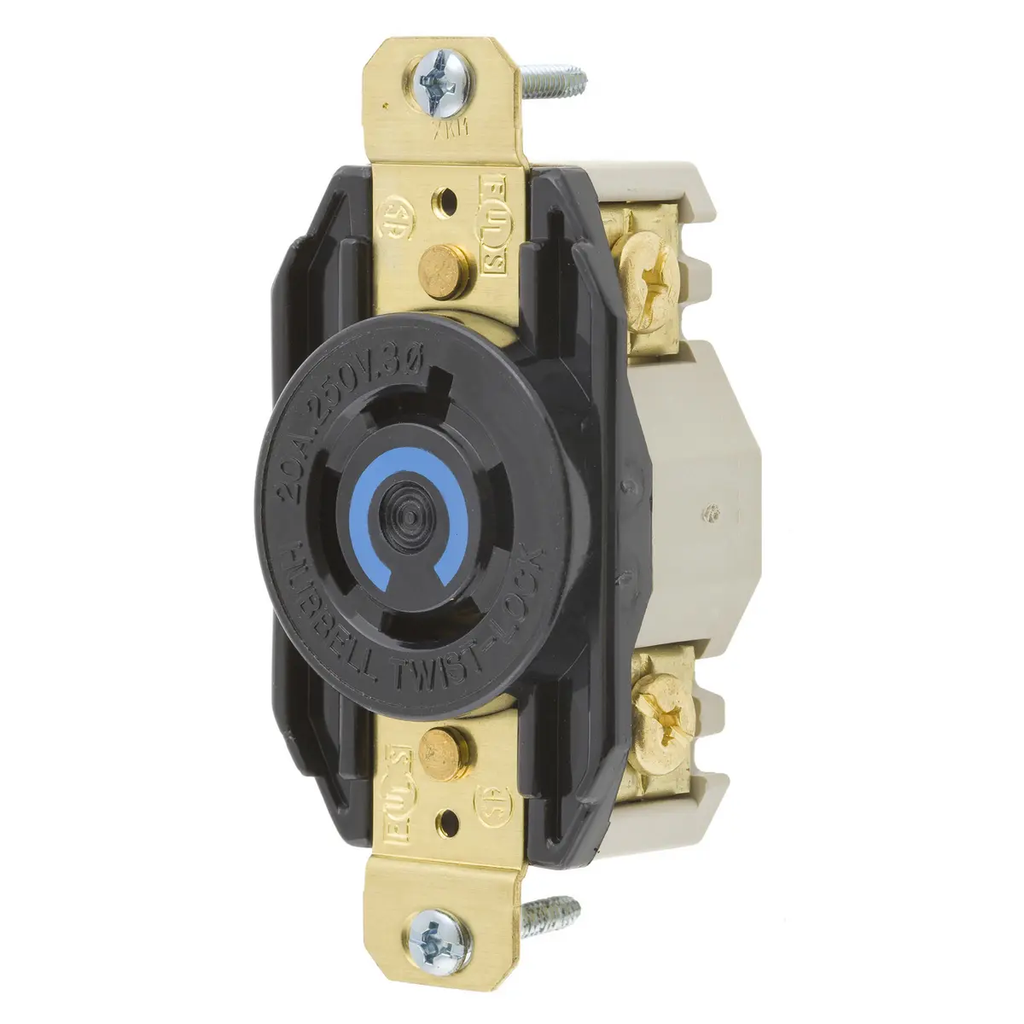

HBL2420 - Hubbell 20A 250V 3-Phase 3-Pole 4-Wire Grounding Twist-Lock Receptacle, NEMA L15-20R, Industrial Grade, Screw Mount, Nylon, Black - Essential Electric Supply
HBL2420 - Hubbell 20A 250V 3-Phase 3-Pole 4-Wire Grounding Twist-Lock Receptacle, NEMA L15-20R, Industrial Grade, Screw Mount, Nylon, Black - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HBL2420 Hubbell Industrial Twist-Lock® Flush Receptacle 20A 3-Phase 250V AC 3-Pole 4-Wire Grounding - Essential Electric Supply
HBL2420 - Hubbell 20A 250V 3-Phase 3-Pole 4-Wire Grounding Twist-Lock Receptacle, NEMA L15-20R, Industrial Grade, Screw Mount, Nylon, Black - Essential Electric Supply
HBL2420 - Hubbell 20A 250V 3-Phase 3-Pole 4-Wire Grounding Twist-Lock Receptacle, NEMA L15-20R, Industrial Grade, Screw Mount, Nylon, Black - Essential Electric Supply

Description

HBL2420


HBL2420 is a Hubbell industrial-grade, 3-phase grounding locking receptacle designed for heavy-duty applications.

This single flush receptacle features a NEMA L15-20R configuration, 3 poles, 4 wires (including ground), and is rated for 20A at 250V AC. It is constructed with a durable black nylon face and a glass-reinforced thermoplastic polyester base, offering corrosion resistance and a reliable all-brass mounting and grounding system. The HBL2420 is suitable for back and side wiring, supports conductor sizes from #14 to #8 AWG, and is rated for a maximum of 3 horsepower. It is certified for current interrupting at full rated current and withstands a minimum dielectric voltage of 2,000V. The receptacle operates in temperatures from -40°C to 75°C and is compliant with UL 498, CSA C22.2 No. 42, NEMA WD1/WD5, Federal Specification W-C-596, and RoHS standards.

    Key Specifications
  • Amperage: 20A
  • Voltage: 250V AC, 3-phase
  • Poles: 3
  • Wires: 4 (including ground)
  • Mounting Type: Screw terminal, back and side wired
  • Interrupt Rating: Certified for current interrupting at full rated current
  • Series/Frame: HBL® series
  • Trip Unit: Not applicable (receptacle only)
  • Certifications: UL 498, CSA C22.2 No. 42, NEMA WD1/WD5, Federal Specification W-C-596, RoHS
  • Enclosure: NEMA 4/4X/12, IP20
  • Material: Nylon face, glass-reinforced thermoplastic polyester base
  • Temperature Range: -40°C to 75°C
  • Conductor Size: #14 to #8 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: HBL2420
  • Manufacturer : Hubbell
  • Brand : Hubbell
  • Category : Conduit & Fittings
  • Item Subcategory : Locking Devices
  • Family : HBL
  • Voltage : 250 250

Product Data

  • UPC : 783585235752
  • GTIN : 00783585235752
  • Dimensions : 3.28 in H x 1.7 in W x 1.23 in D 3.28 x 1.7 x 1.23 3.28 x 1.7 x 1.23 in
  • Weight : 5.19
