Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL2411SW

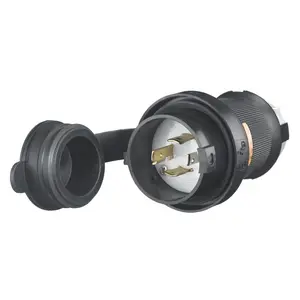

HBL2411SW is a 20 amp, 125/250 volt, 3-pole 4-wire twist-lock watertight safety-shroud male plug from Hubbell.HBL2411SW features a durable composite housing with brass blades and stainless steel assembly screws. It supports cord ranges from 0.350 to 1.150 inches and wire sizes from #16 AWG to #8 AWG. Rated for continuous operation between -40°C and 75°C, it is UL listed and CSA certified to Type 4, 4X, and Type 12 standards. This plug withstands a dielectric voltage of 2,000 volts minimum and is designed for portable cord applications with screw terminal connections.
- Key Specifications
- Amperage: 20 A
- Voltage: 125/250 VAC
- Poles/Wires: 3-Pole, 4-Wire Grounding
- Mounting Type: Cord Mounted
- Interrupt Rating: Certified for current interrupting at full rated current
- Material: Composite housing with brass blades
- Cord Range: 0.350" - 1.150" (9-29 mm)
- Wire Size: #16 AWG to #8 AWG
- Operating Temperature: -40°C to 75°C continuous
- Certifications: UL Listed, CSA Certified to Type 4, 4X, Type 12
- NEMA Rating: L14-20P
Specifications
- Part Number: HBL2411SW
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125/250 125/250
Product Data
- UPC : 783585231280
- GTIN : 00783585231020
- Dimensions : 2.94 in Dia x 4.4 in L 2.94 x 2.94 x 4.40 in
- Weight : 5.19
