HBL2410SW - Hubbell 20A 125/250V 3-Pole 4-Wire Watertight Twist-Lock Receptacle L14-20R Screw Mount

HBL2410SW

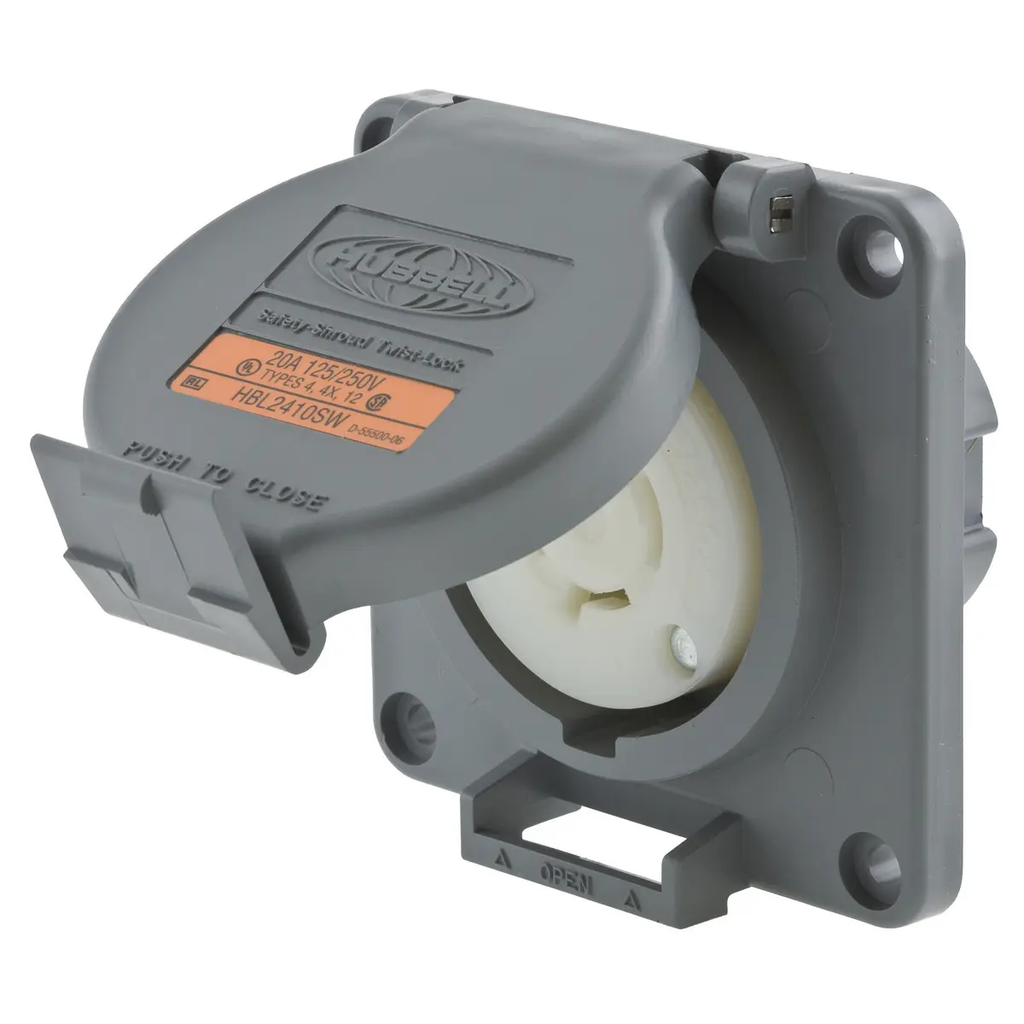

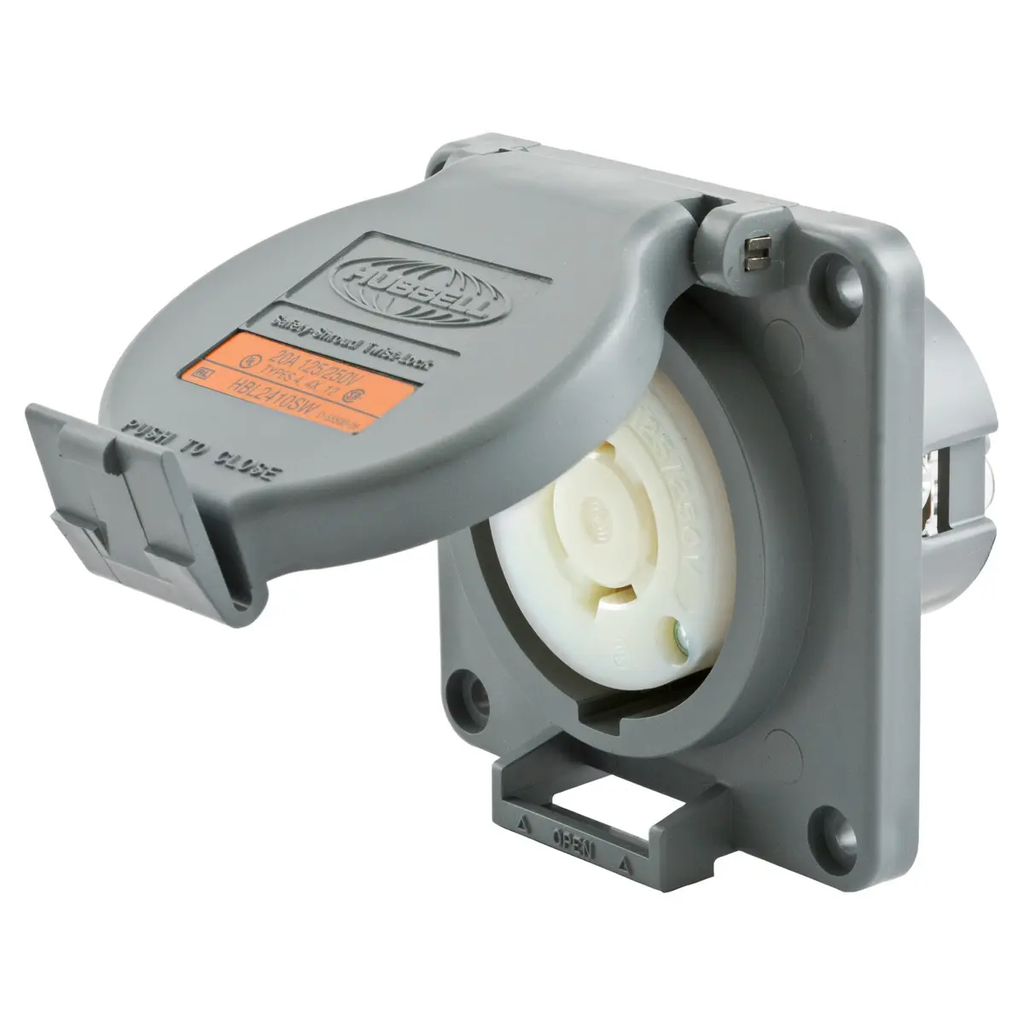

HBL2410SW is a Hubbell 20A 125/250V 3-pole 4-wire watertight twist-lock receptacle with screw mounting and shrouded safety design.This Hubbell HBL2410SW receptacle features a durable thermoplastic housing with a gray RPT finish, brass contacts, and back wired screw terminals. It is UL Listed and CSA Certified to Type 4, 4X, and Type 12 standards, designed for heavy-duty industrial applications. The device withstands 2000V dielectric strength and operates in temperatures from -40°C to 75°C continuous. It supports #16 AWG to #8 AWG wire sizes and mounts securely in a 1-gang outlet box.

Key Specifications
• Amperage: 20 A
• Voltage: 125/250 V AC
• Poles: 3
• Wires: 4 (grounding)
• Mounting Type: Screw Mount
• Interrupt Rating: Certified for current interrupting at full rated current
• Series/Frame: L14-20R
• Trip Unit: N/A (receptacle)
• Material: Thermoplastic housing, brass contacts
• Certifications: UL Listed, CSA Certified
• Environmental Rating: Watertight, Type 4, 4X, 12
• Operating Temperature: -40°C to 75°C continuous

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL2410SW
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Locking Devices
• Voltage : 125/250 125/250

Product Data

• UPC : 783585231266
• GTIN : 00783585231266
• Dimensions : 3.75 in L x 2.69 in W x 2.69 in H 3.75 in W x 2.91 in D x 3.75 in H 3.75 x 3.75 x 2.9 in
• Weight : 5.19
