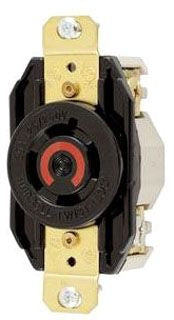

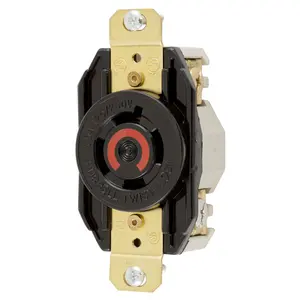

HBL2410 - Hubbell 20A 125/250V 3-Pole 4-Wire Twist-Lock® Industrial Flush Receptacle, Screw Mount, NEMA L14-20R

HBL2410

HBL2410 is a Hubbell 20 amp, 125/250 volt, 3-pole, 4-wire grounding Twist-Lock® industrial flush receptacle designed for heavy-duty applications.This locking receptacle features a durable nylon construction with screw terminal connections and a screw mounting system for secure installation. It is rated for 20 amps and 125/250 VAC with a NEMA L14-20R configuration, suitable for single-phase power. The device withstands temperatures from -40 to 75 degrees Celsius and has a dielectric strength of 2,000 volts minimum. It meets UL 498 and NEMA WD-1, WD-5 standards and is RoHS compliant. The all-brass mounting and grounding system provides superior corrosion resistance and a low resistance ground path. The receptacle is designed for industrial grade use with NEMA 4/4X/12/IP20 enclosure ratings.

Key Specifications
• Amperage Rating: 20 A
• Voltage Rating: 125/250 VAC
• Number of Poles: 3
• Number of Wires: 4 (Grounding)
• Mounting Type: Screw Mount, Flush
• Material: Nylon
• NEMA Rating: L14-20R
• Operating Temperature: -40 to 75 °C
• Terminal Type: Screw
• Dielectric Strength: 2,000 V minimum
• Certifications: UL 498, RoHS Compliant
• Phase: Single Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL2410
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Locking Devices
• Family : HBL
• Voltage : 125/250 125/250

Product Data

• UPC : 783585235738
• GTIN : 00783585235738
• Dimensions : 3.28 in H x 1.7 in W x 1.23 in D 3.28 x 1.7 x 1.23 3.28 x 1.7 x 1.23 in
• Weight : 5.19
