Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL2333

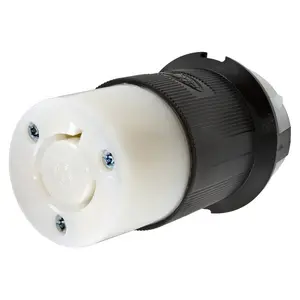

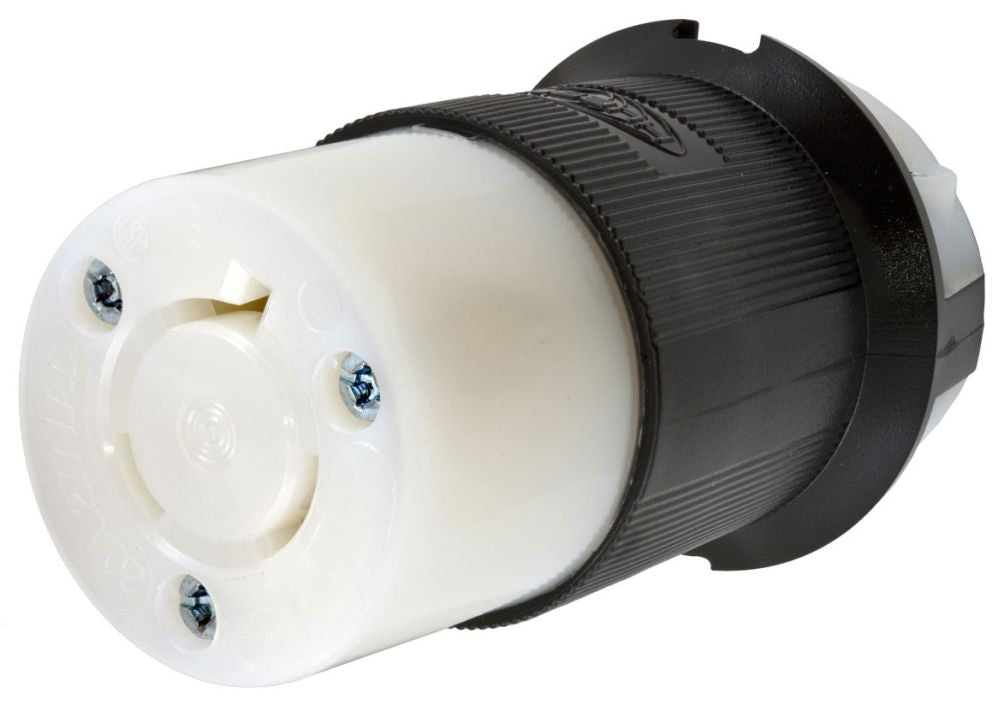

HBL2333 is a Hubbell locking connector body rated for 20A at 277VAC with 2-pole, 3-wire grounding configuration in NEMA L7-20R format. This heavy-duty shrouded watertight cord mount connector features a superior cord grip design that protects terminations from excess strain and a clear, funnel-shaped wire entry for ease of termination. The integral dust shield protects the wiring chamber from dust and contaminants, making it suitable for commercial and industrial applications. Constructed of black and white nylon with pressure screw terminals, it accommodates wire sizes from 16 AWG to 8 AWG and supports cable diameters from 0.36 to 0.93 inches. The connector is certified for current interrupting at full rated current and withstands a minimum dielectric voltage of 2,000V.
- Amperage Rating: 20A
- Voltage Rating: 277VAC
- Poles and Wires: 2-Pole, 3-Wire Grounding
- NEMA Rating: L7-20R
- Terminal Type: Pressure Screw
- Wire Size: 16 AWG to 8 AWG
- Cable Diameter Range: 0.36 to 0.93 inches
- Operating Temperature: -40 to 75 degrees Celsius
- Enclosure Rating: NEMA 4/4X/12/IP66
- Dielectric Strength: 2,000V minimum
- Material: Nylon
- Dimensions: 2.26 x 2.26 x 3.86 inches
Specifications
- Part Number: HBL2333
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Family : HBL
- Voltage : 277 277
Product Data
- UPC : 783585037929
- GTIN : 00783585037929
- Dimensions : 2.26 x 2.26 x 3.86 in 3.86 in L x 2.26 in W
- Weight : 5.19
