Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL2331

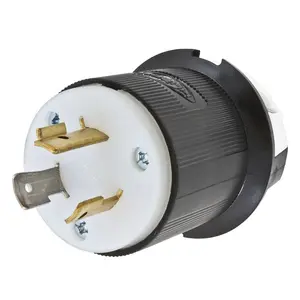

HBL2331 is a Hubbell 20 amp, 277 volt, 2-pole, 3-wire industrial twist-lock male plug designed for secure and reliable electrical connections.This locking device features a durable nylon Insulgrip body with screw terminal pressure connections, suitable for cord ranges from 0.360 to 0.930 inches. It is rated for single-phase applications with a dielectric strength of 2,000 volts minimum and a maximum continuous operating temperature of 75°C. The plug complies with UL 498, CSA C22.2 No.42, and Fed.Spec. W-C-596 standards and is NEMA L7-20P rated.
- Key Specifications
- Amperage: 20 A
- Voltage: 277 VAC
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Cord Mounted
- Dielectric Strength: 2,000 V minimum
- Material: Nylon Insulgrip
- Terminal Type: Screw Pressure Terminals
- Cable Range: 0.360 - 0.930 in diameter
- Wire Size: #16 AWG to #8 AWG
- Standards: UL 498, CSA C22.2 No.42, Fed.Spec. W-C-596
- NEMA Rating: L7-20P
- Part Number: HBL2331
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 277 277
- UPC : 783585037899
- GTIN : 00783585037899
- Dimensions : 2.26 in Dia x 2.75 in L 2.26 x 2.26 x 2.75 in
- Weight : 5.19
