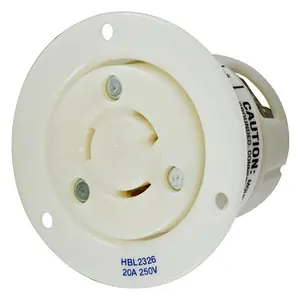

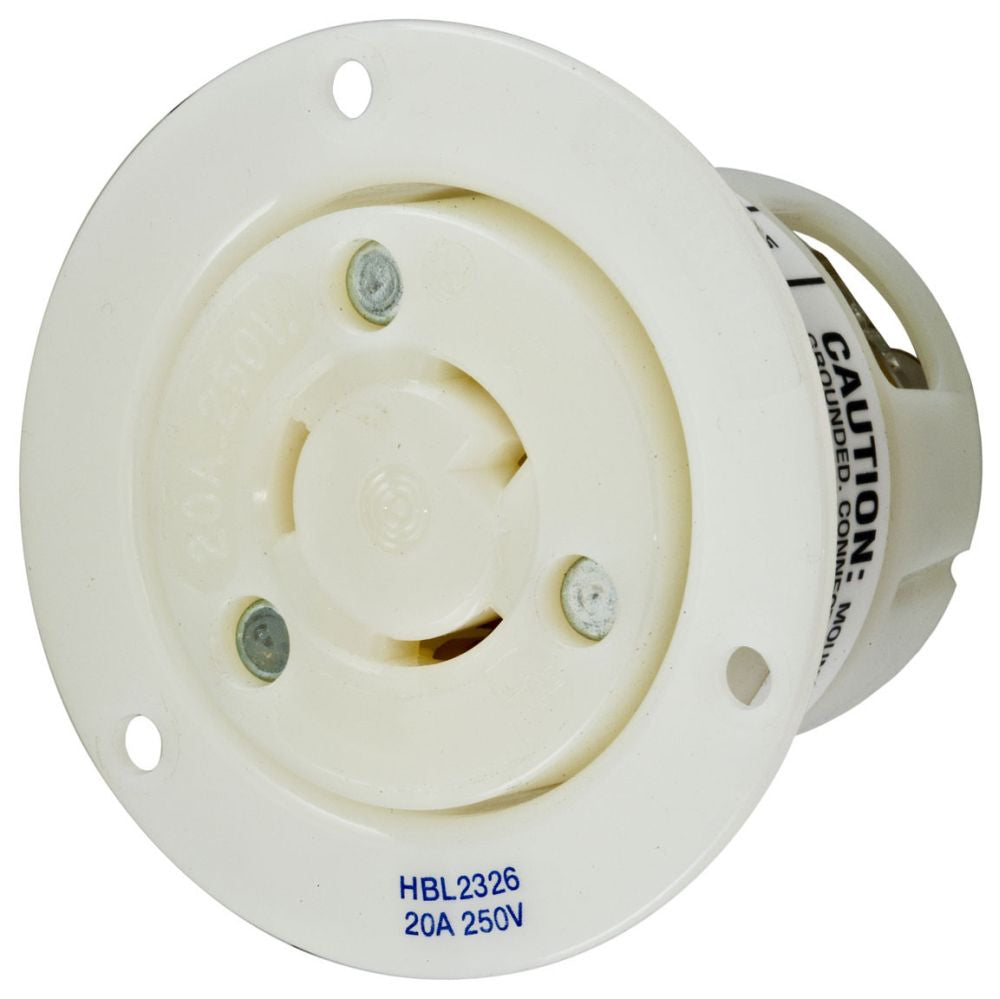

HBL2326 - Hubbell 20A 250V 2-Pole 3-Wire Twist-Lock® Flanged Receptacle, Insulgrip, Screw Mount

HBL2326

HBL2326 is a Hubbell Twist-Lock® flanged receptacle rated for 20 amps and 250 volts, designed for secure industrial electrical connections.This 2-pole, 3-wire grounding device features a durable nylon Insulgrip® housing with screw terminal connections and a flanged mounting type for surface installation. It meets UL 498 and NEMA WD-1, WD-5 standards and withstands dielectric strength of 2,000 volts minimum. Suitable for indoor dry environments, it supports wire sizes from #16 AWG to #8 AWG and operates reliably from -40°C to 75°C.

Key Specifications
• Amperage Rating: 20 A
• Voltage Rating: 250 V AC
• Number of Poles: 2
• Number of Wires: 3-Wire Grounding
• NEMA Rating: L6-20R
• Material: Nylon (Thermoplastic)
• Mounting Type: Flanged, Screw Mount
• Terminal Connection: Back Wired Screw Terminals
• Dielectric Strength: 2,000 V minimum
• Operating Temperature: -40°C to 75°C
• Standards: UL 498, NEMA WD-1, WD-5, RoHS Compliant
• Phase: Single Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL2326
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Locking Devices
• Voltage : 250 250

Product Data

• UPC : 783585037875
• GTIN : 00783585037875
• Dimensions : 2.88 in Dia x 2.09 in L 2.88 x 2.88 x 2.09 in
• Weight : 5.19
