Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock device
Description
HBL2321SW

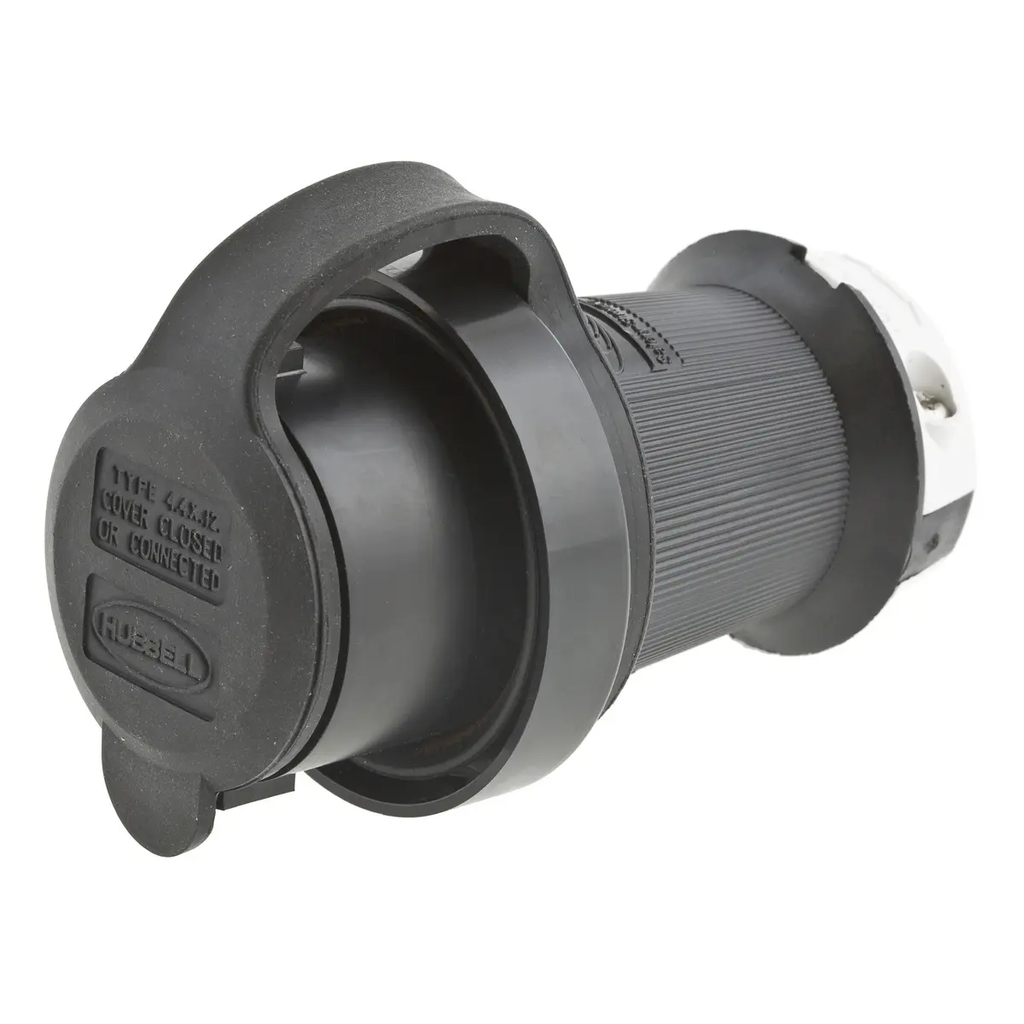

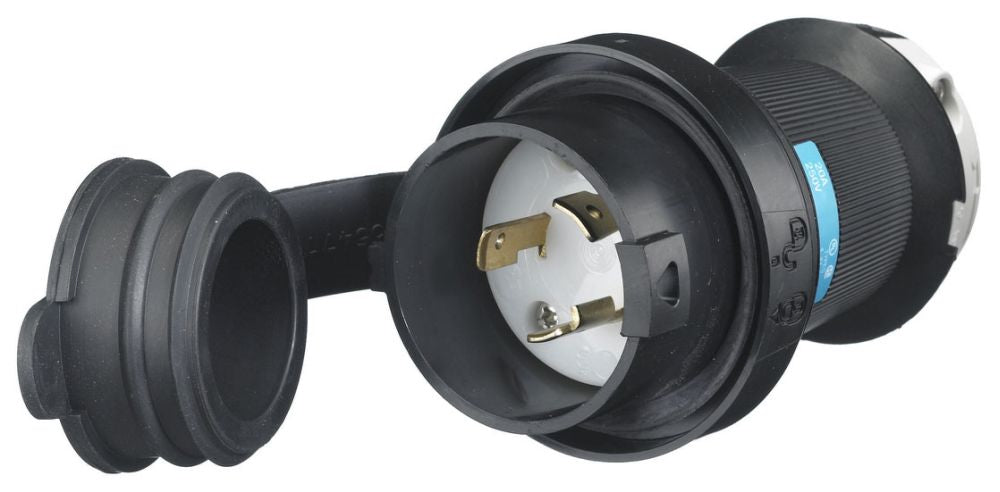

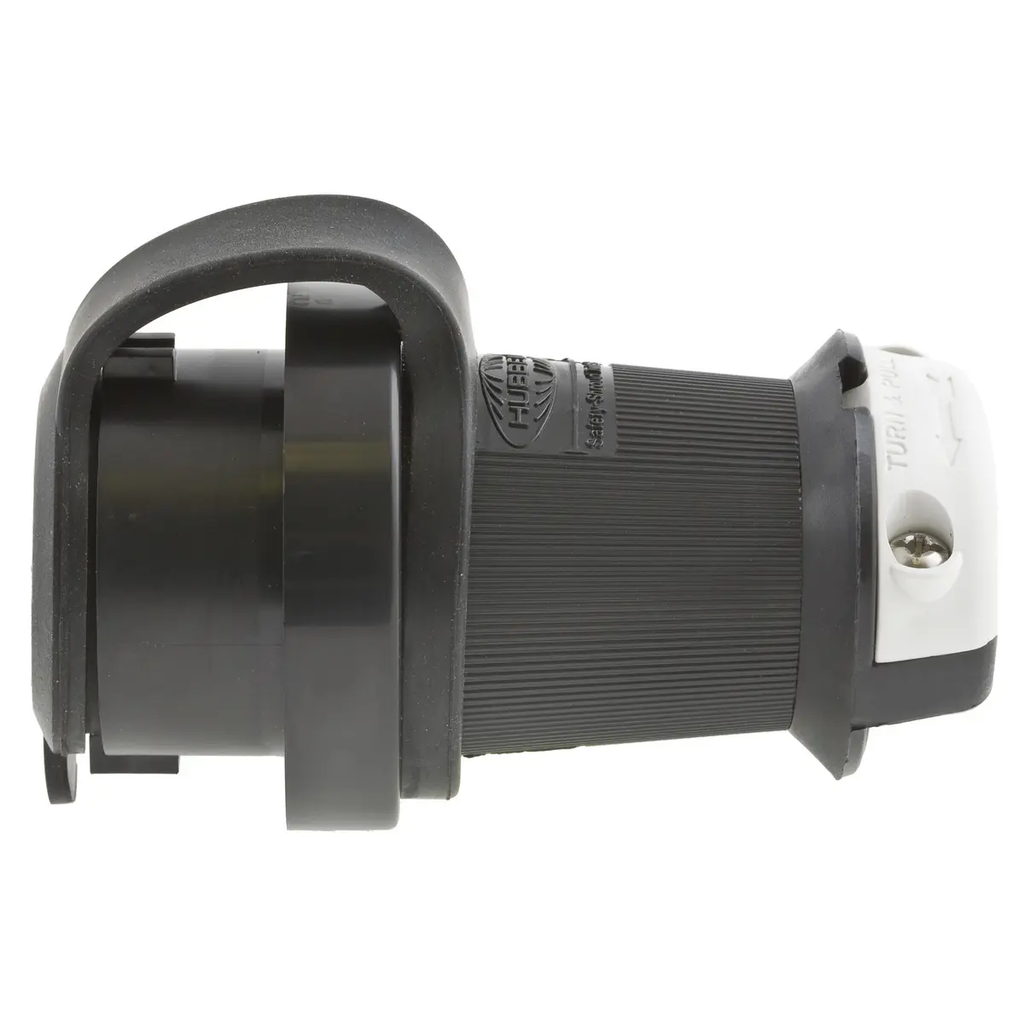

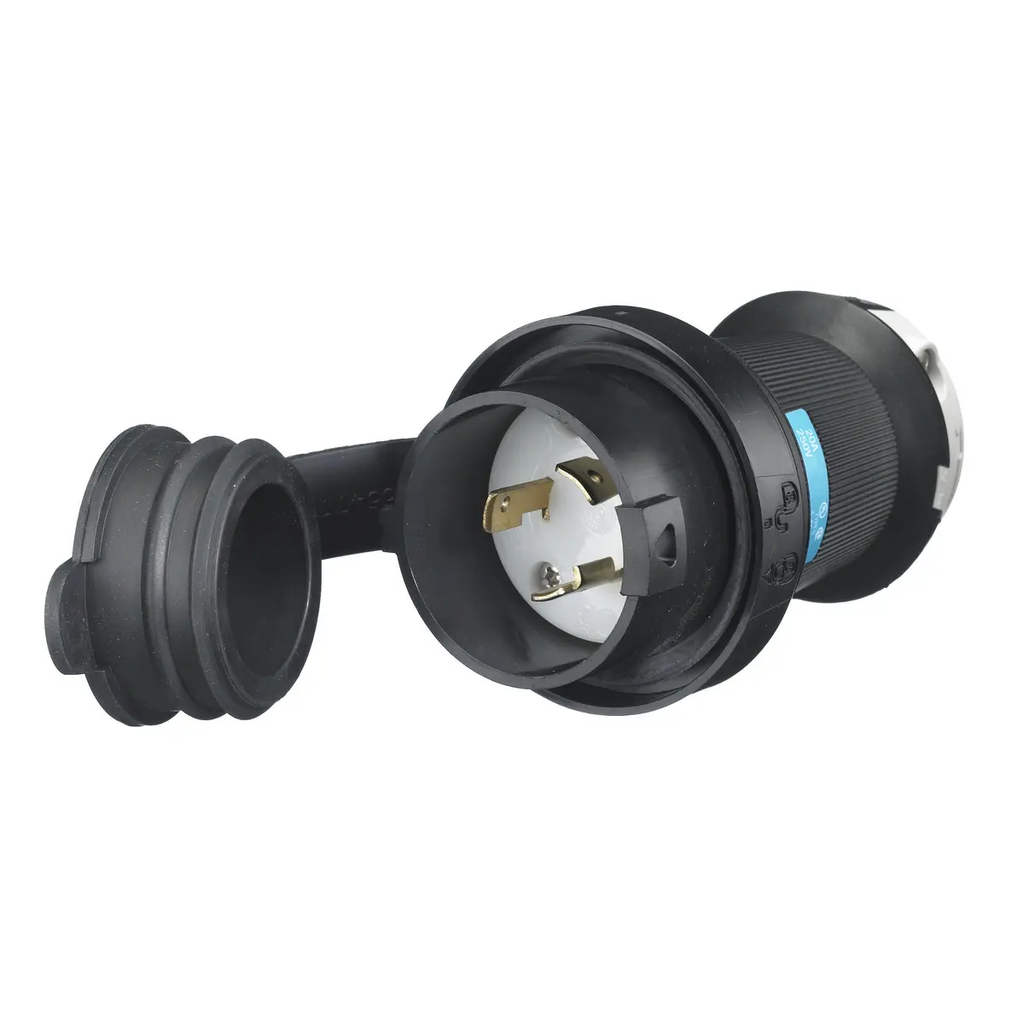

HBL2321SW is a 20 amp, 250 volt, 2-pole, 3-wire watertight Safety-Shroud locking male plug designed for heavy-duty industrial applications.This Hubbell plug features a durable composite housing with a thermoplastic polyester interior, stainless steel assembly screws, and brass blades. It is rated for 20A and 250V with a NEMA L6-20P configuration, suitable for single-phase portable cords ranging from 0.360 to 0.930 inches in diameter. The device withstands 2,000 volts dielectric strength and operates in temperatures from -40°C to 75°C. It is UL Listed and CSA Certified to Type 4, 4X, and Type 12 standards, providing watertight protection and impact resistance for demanding environments.
- Key Specifications
- Amperage: 20 A
- Voltage: 250 V
- Poles: 2
- Wires: 3
- Mounting Type: Cord Mounted
- Interrupt Rating: Withstands 2,000 V minimum
- Series/Frame: Safety-Shroud®
- Trip Unit: N/A (plug device)
- Certifications: UL Listed, CSA Certified to Type 4, 4X, Type 12
- NEMA Rating: L6-20P
- Cord Range: 0.360" - 0.930" diameter
- Operating Temperature: -40°C to 75°C continuous
Additional Information
NEMA locking configuration; ratings per model
Specifications
- Part Number: HBL2321SW
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock device
- Family : HBL
- Voltage : 250 250
Product Data
- UPC : 783585231105
- GTIN : 00783585231105
- Dimensions : 2.77 x 2.77 x 4.4 2.77 x 2.77 x 4.4 in 2.94 in Dia x 4.4 in L
- Weight : 5.19
