Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock device
Description
HBL2315

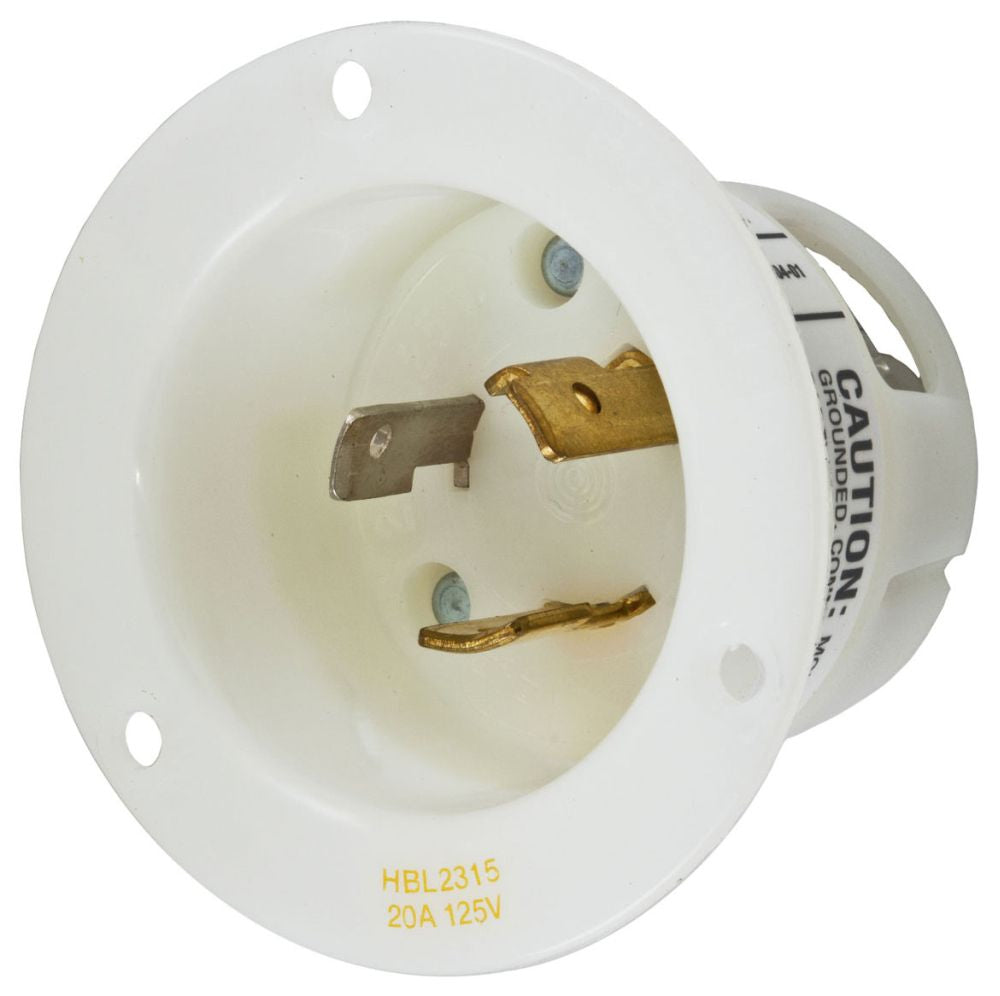

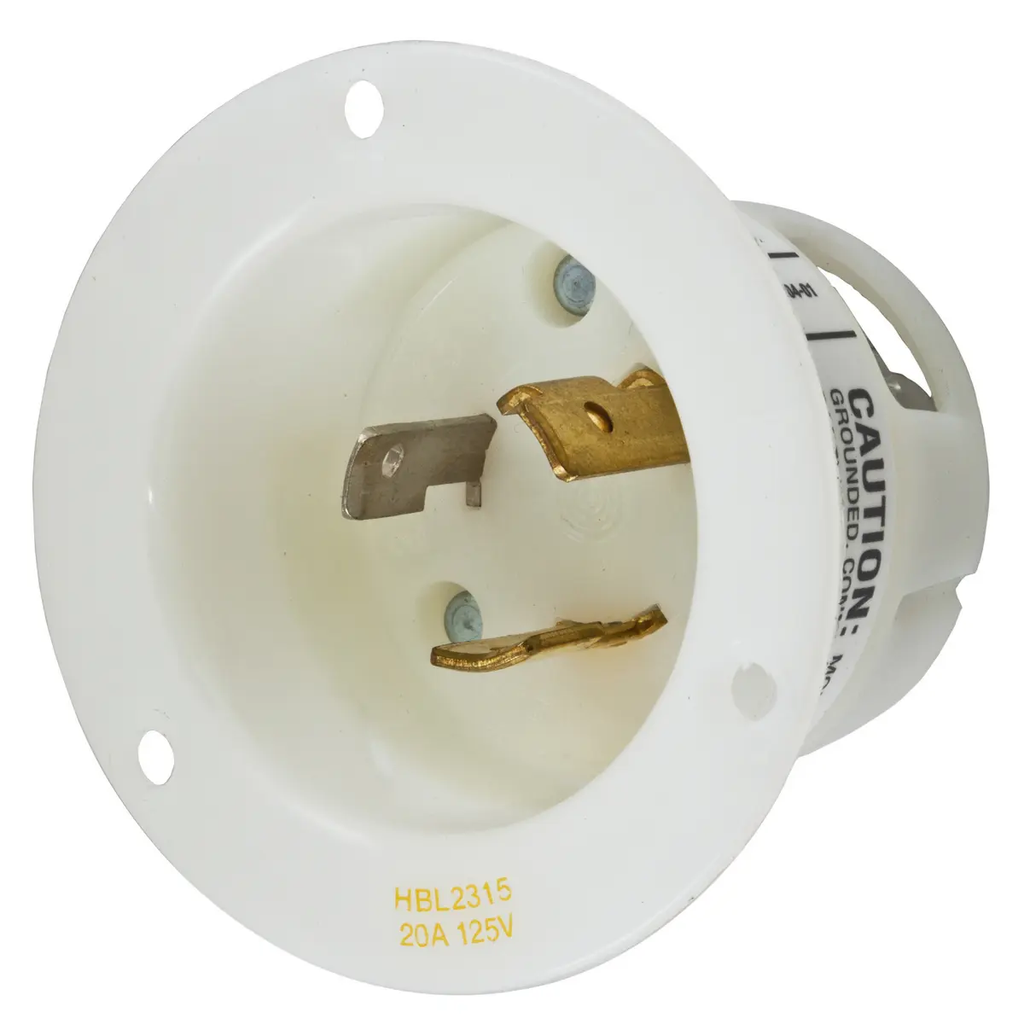

HBL2315 is a Hubbell industrial-grade 20A 125V 2-pole 3-wire grounding flanged inlet with L5-20P configuration and screw terminal mounting. Designed for reliable power distribution in demanding environments, this Twist-Lock device features a durable nylon insulated body and backwired screw terminals for secure connections. This Hubbell Insulgrip® flanged inlet is rated for continuous operation from -40°C to 75°C and withstands dielectric voltage up to 2,000V minimum. It is certified for current interrupting at full rated current and meets UL 498 and CSA C22.2 standards. The device is suitable for indoor dry locations unless protected by additional means and is RoHS compliant.
- Part Number: HBL2315
- Manufacturer: Hubbell
- Amperage Rating: 20A
- Voltage Rating: 125V AC
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Screw Terminal
- Interrupt Rating: Full rated current
- Series: Insulgrip®
- Material: Nylon
- Color: White
- Certifications: UL 498, CSA C22.2, RoHS
Additional Information
NEMA locking configuration; ratings per model
Specifications
- Part Number: HBL2315
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock device
- Family : HBL
- Voltage : 125 125
Product Data
- UPC : 783585037783
- GTIN : 00783585037783
- Dimensions : 2.88 in Dia x 2.09 in L 2.88 x 2.88 x 2.09 in
- Weight : 0.5
