2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock device
Description
HBL2313SW

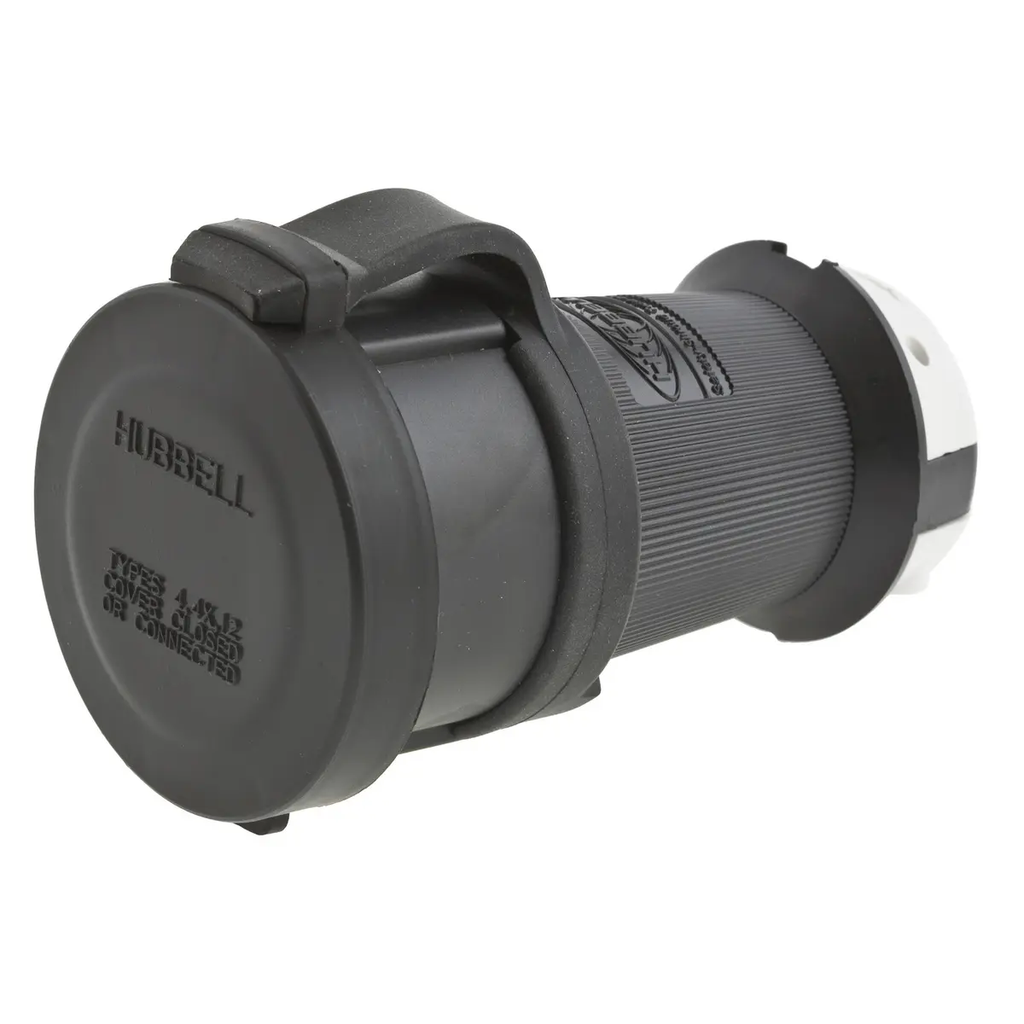

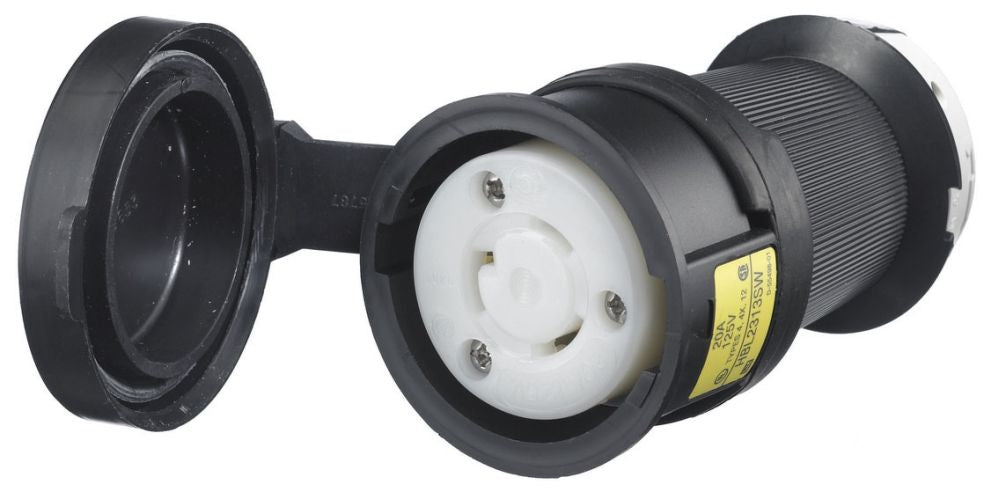

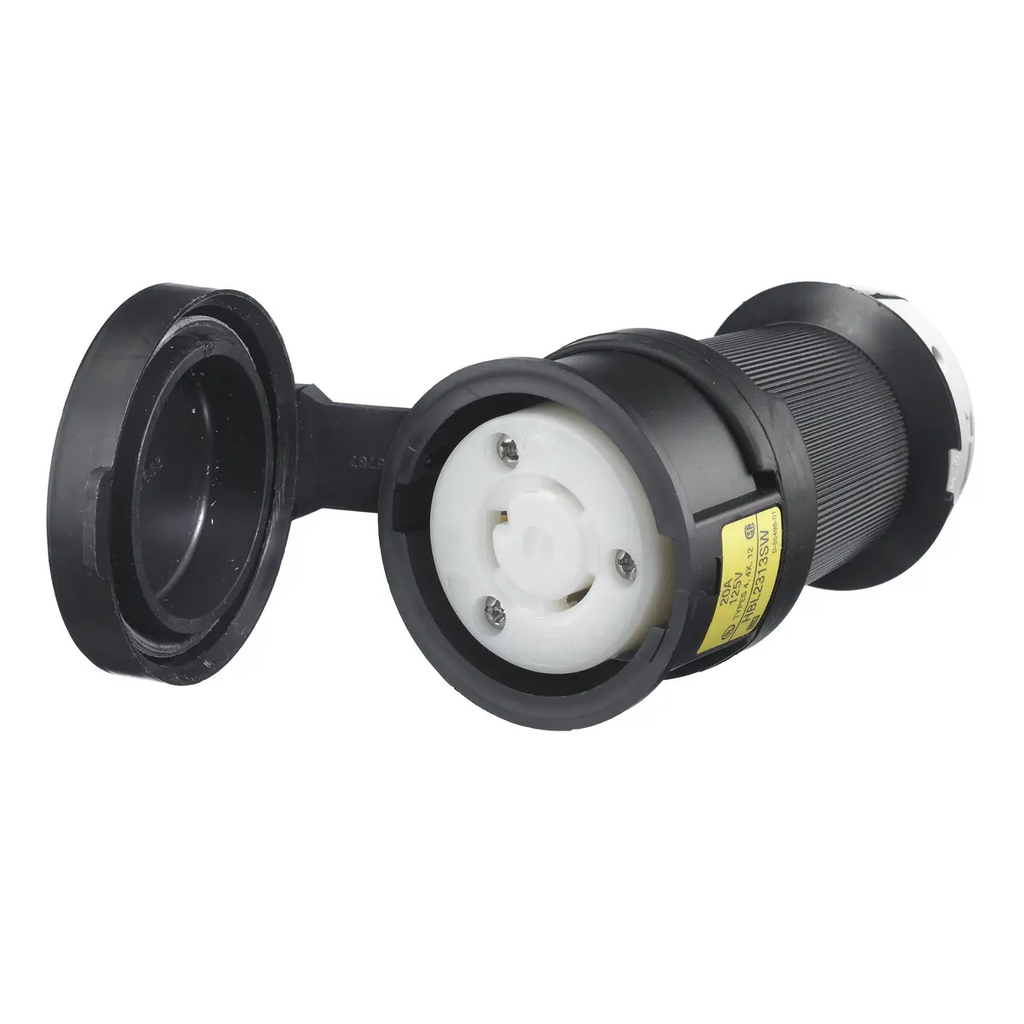

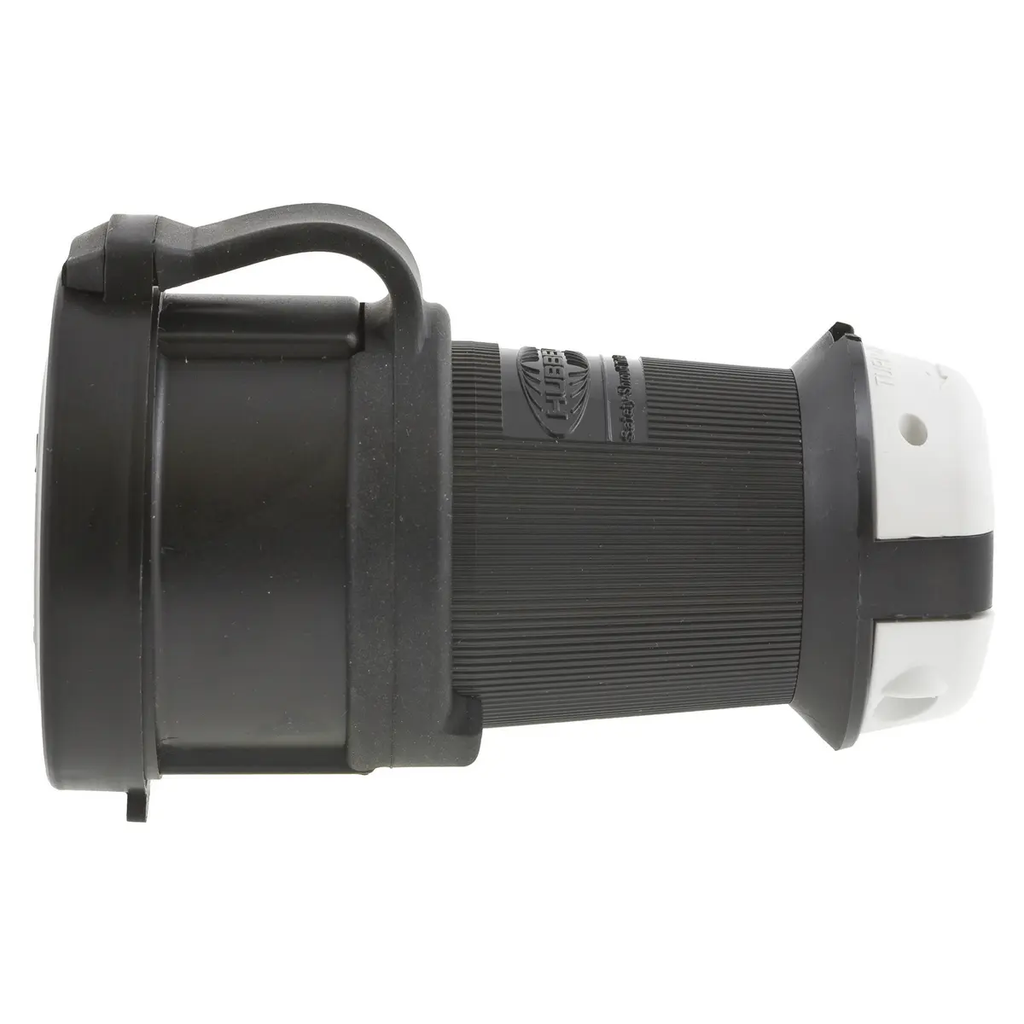

HBL2313SW is a 20A 125V 2-pole 3-wire watertight safety-shroud connector body designed for heavy-duty industrial environments. This Hubbell connector features a robust composite housing, pressure terminal screws, and a watertight seal for reliable performance in demanding conditions. The connector is rated for 20A at 125V, with a 2-pole 3-wire grounding configuration. It is cord-mounted and features a safety shroud for added protection. The connector is UL Listed and CSA Certified to Type 4, 4X, and Type 12, and is suitable for use in environments up to 75°C continuous and as low as -40°C without impact. The housing is made of black PBT, with white PBT clamps, and includes a closure cap for environmental sealing when not in use.
- Part Number: HBL2313SW
- Manufacturer: Hubbell
- Amperage Rating: 20 A
- Voltage Rating: 125 V
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Cord Mounted
- Interrupt Rating: Full rated current
- Series/Frame: Safety-Shroud
- Dielectric Strength: 2,000V minimum
- Certifications: UL Listed, CSA Certified Type 4, 4X, Type 12
- Wire Size: #16 AWG to #8 AWG
Additional Information
NEMA locking configuration; ratings per model
Specifications
- Part Number: HBL2313SW
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock device
- Family : HBL
- Voltage : 125 125
Product Data
- UPC : 783585231044
- GTIN : 00783585231044
- Dimensions : 2.57 x 2.57 x 4.4 in 4.38 in L x 2.56 in W
- Weight : 0.5
