2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock device
Description
HBL2313

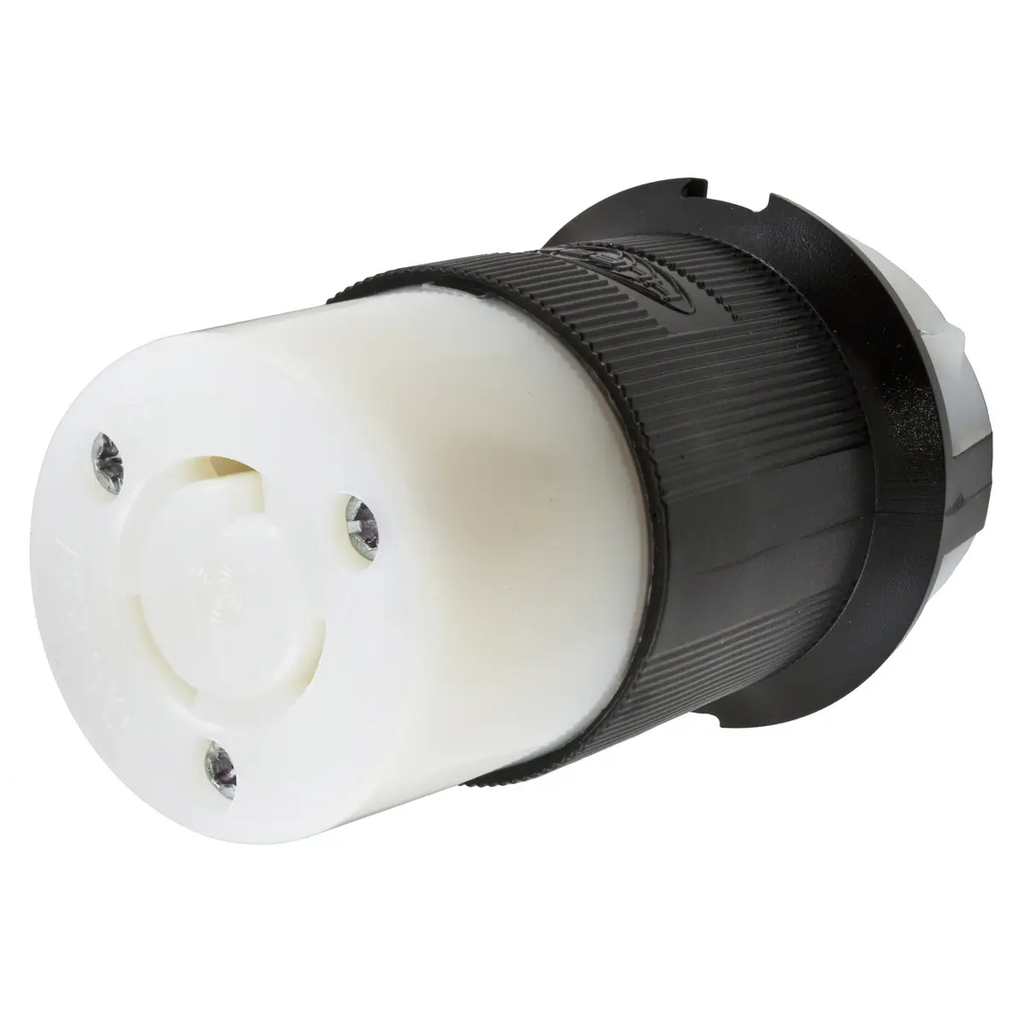

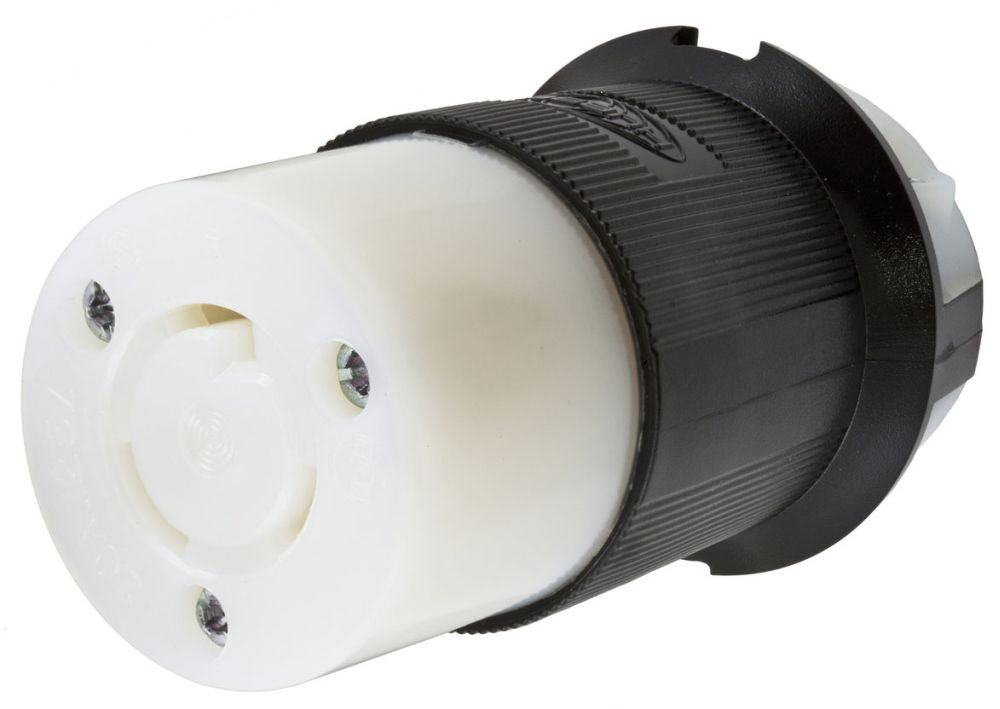

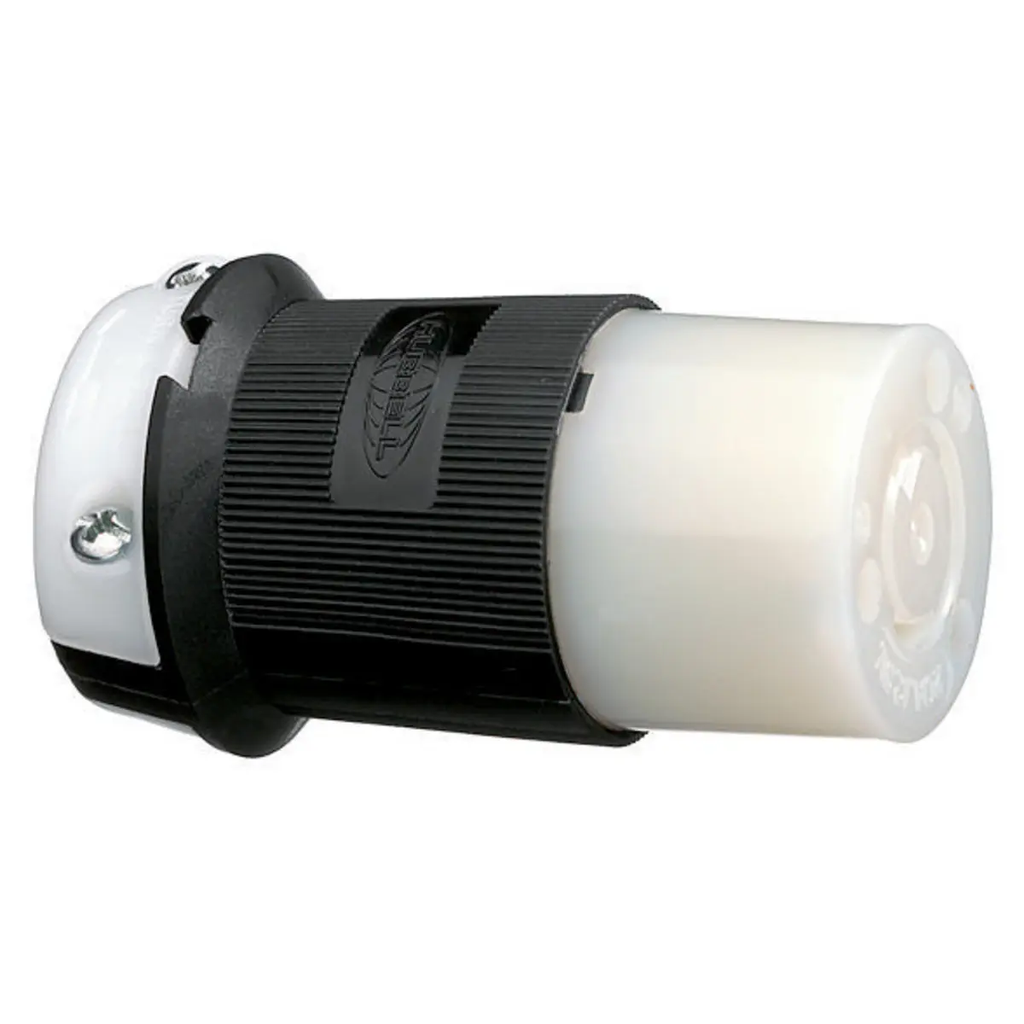

HBL2313 is a Hubbell 20A 125V 2-pole 3-wire grounding twist-lock female connector body with NEMA L5-20R configuration and black/white nylon housing.This Insulgrip connector body features a durable black and white nylon construction with screw terminal pressure connections, designed for cord mounting with a cable range of 0.360" to 0.930" (9-24 mm). It is rated for 20 amps and 125 volts AC, withstanding dielectric voltage of 2,000V minimum. The connector is UL and CSA listed, certified to CSA C22.2 No.42 and Fed.Spec. W-C-596, and is RoHS compliant. It operates in temperatures from -40°C to 75°C continuous without impact and meets IP20 moisture resistance suitability.
- Key Specifications
- Amperage: 20A
- Voltage: 125V AC
- Poles: 2-Pole, 3-Wire Grounding
- NEMA Configuration: L5-20R
- Material: Black and White Nylon
- Mounting Type: Cord Mounted
- Terminal Type: Pressure Terminal Screws
- Dielectric Strength: 2,000V minimum
- Operating Temperature: -40°C to 75°C continuous
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Cable Range: 0.360" to 0.930" diameter
- Weight: 0.3 lb
- Part Number: HBL2313
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock device
- Voltage : 125 125
- UPC : 783585037745
- GTIN : 00783585037745
- Dimensions : 2.26 x 2.26 x 3.86 in 3.86 in L x 2.26 in W
- Weight : 0.5
Additional Information
NEMA locking configuration; ratings per model
