Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock device
Description
HBL2311SW

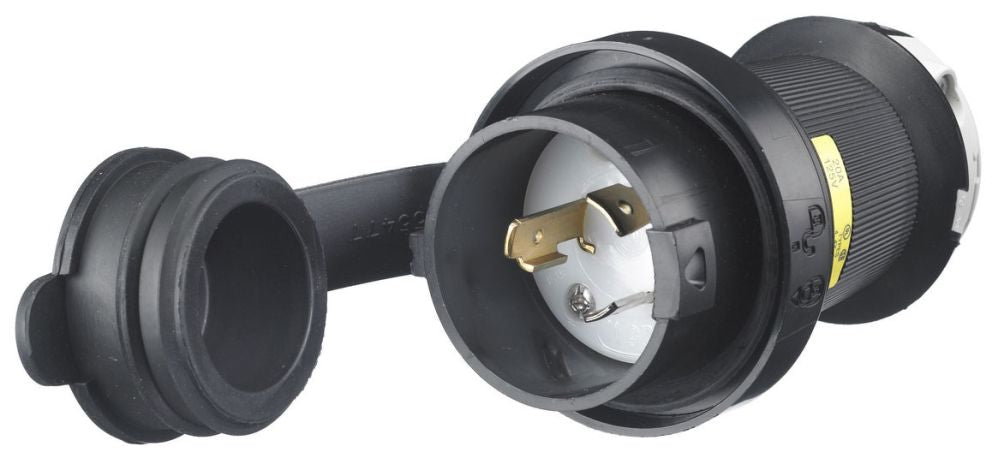

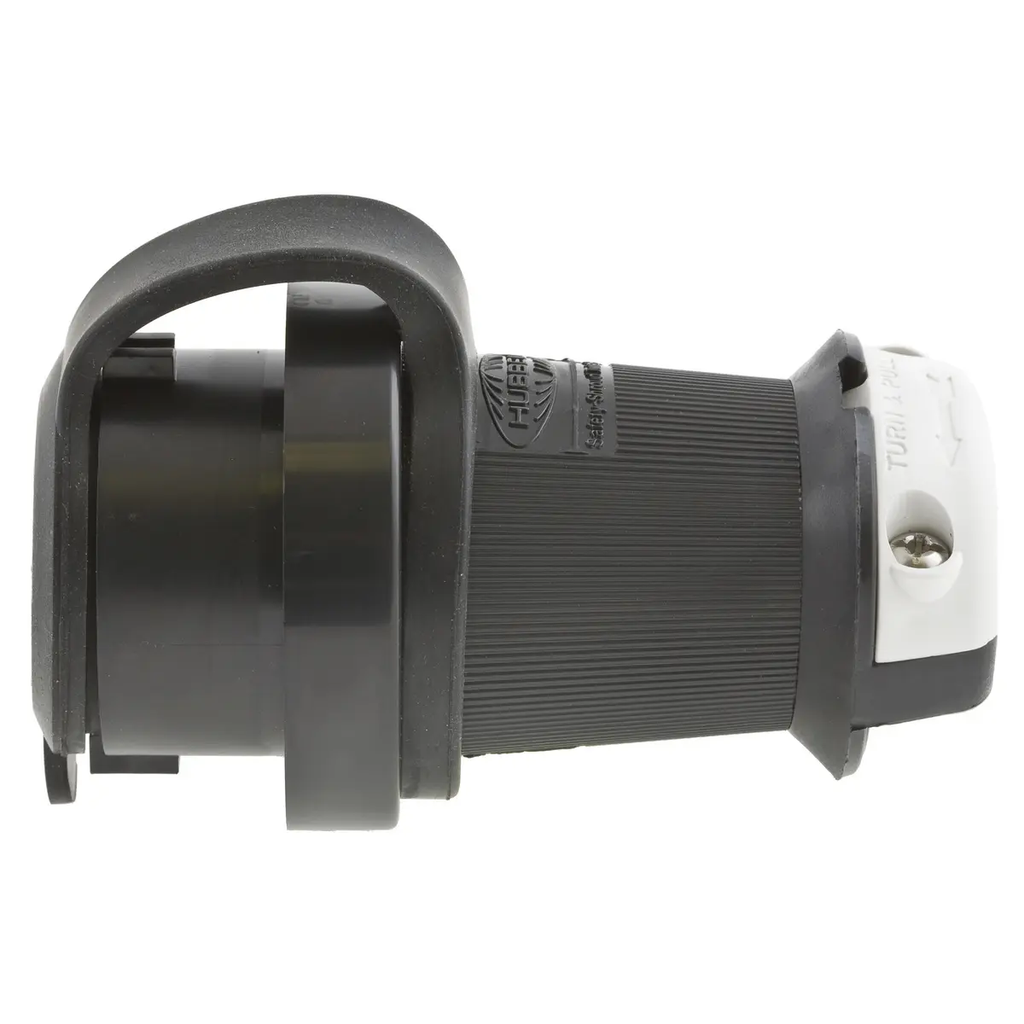

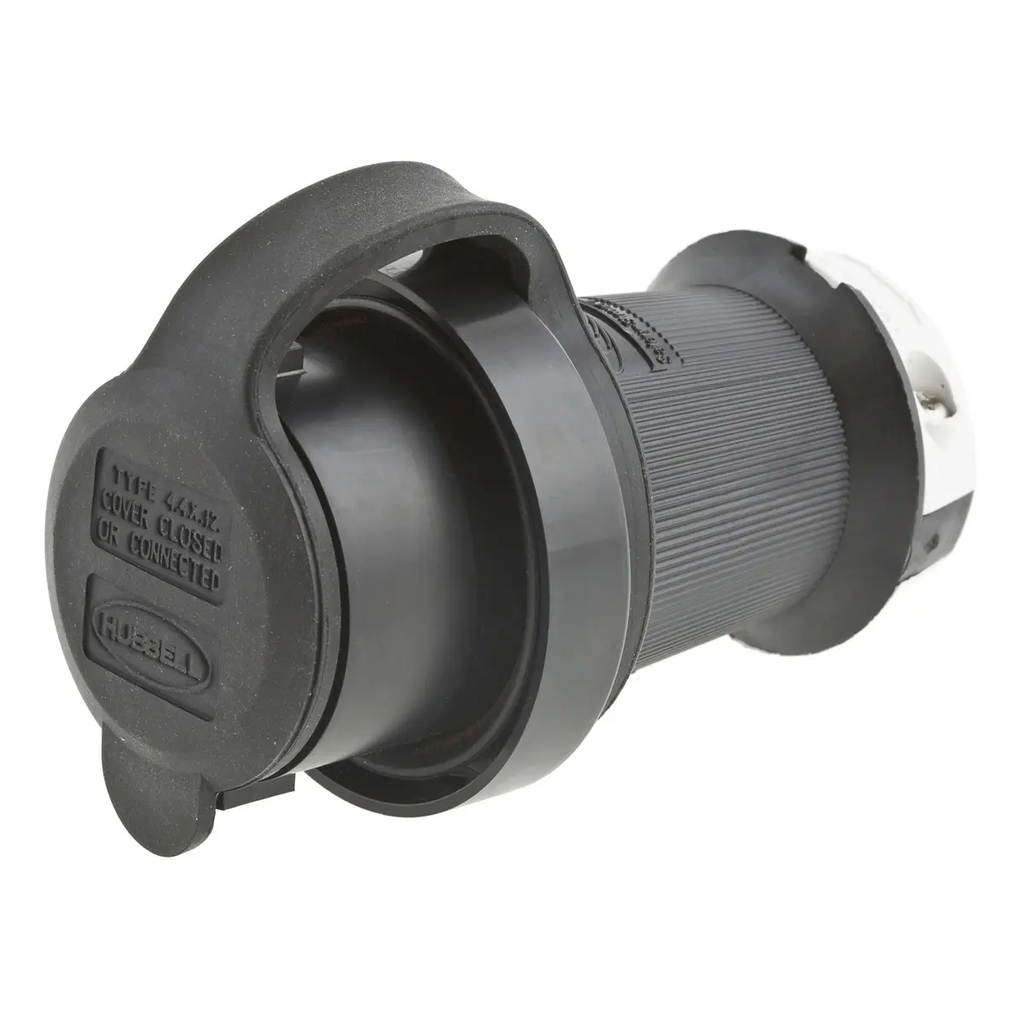

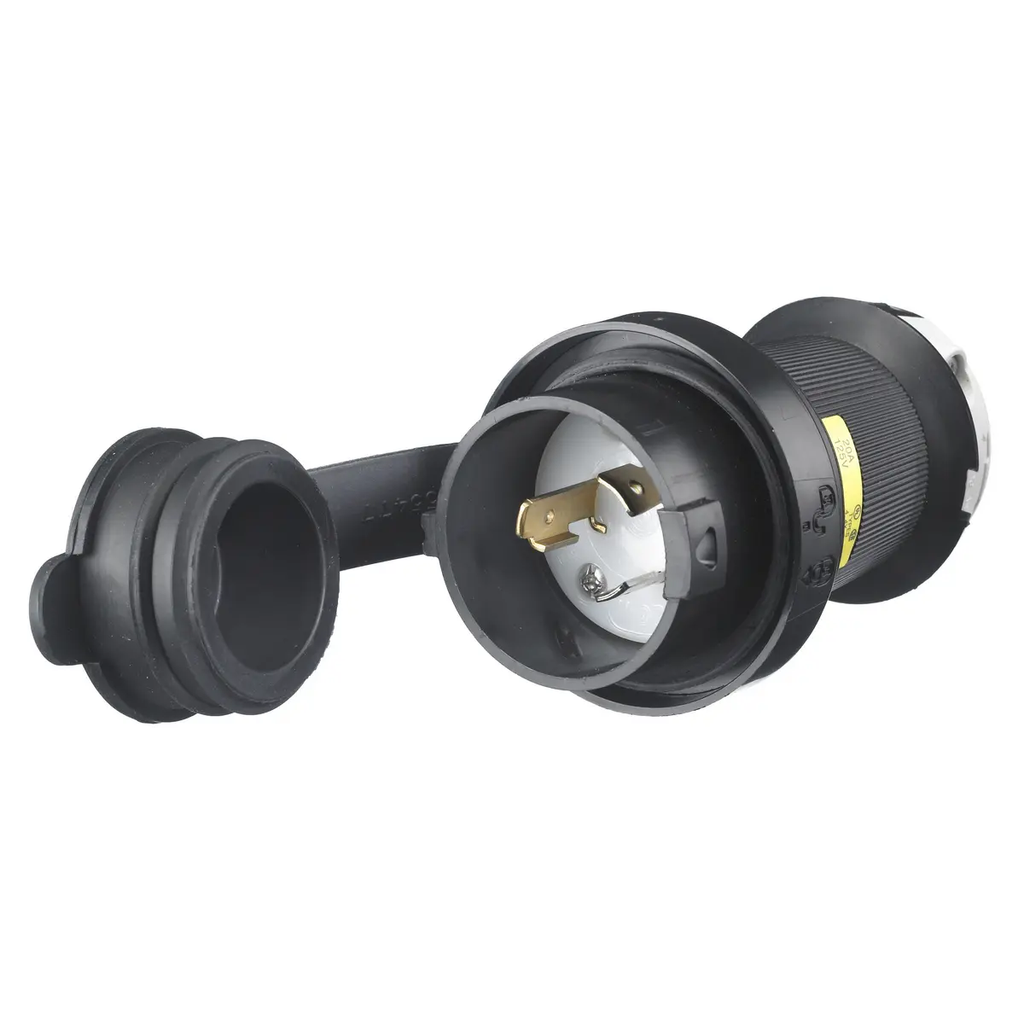

HBL2311SW is a Hubbell watertight safety-shroud twist-lock male plug rated for 20 amps and 125 volts with a 2-pole, 3-wire grounding configuration.This plug features a durable black PBT housing with white PBT clamps, designed for cord mounting with a cable range of 0.360 to 0.930 inches. It is UL listed and CSA certified to Type 4, 4X, and Type 12 standards, providing excellent environmental sealing and impact resistance. The device withstands a dielectric voltage of 2,000V minimum and operates continuously between -40°C and 75°C. It is suitable for single-phase applications and uses pressure terminal screws for secure connectivity.
- Key Specifications
- Amperage: 20 A
- Voltage: 125 V AC
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- NEMA Configuration: L5-20P
- Mounting Type: Cord Mounted
- Material: Black PBT housing, White PBT clamps
- Interrupt Rating: Certified for current interrupting at full rated current
- Certifications: UL Listed, CSA Certified Type 4, 4X, and 12
- Operating Temperature: -40°C to 75°C continuous
- Cable Range: 0.360 to 0.930 inches
- Dielectric Strength: Withstands 2,000V minimum
- Part Number: HBL2311SW
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock device
- Family : HBL
- Voltage : 125 125
- UPC : 783585231020
- GTIN : 00783585231020
- Dimensions : 2.77 in Dia x 4.4 in L 2.77 x 2.77 x 4.4 2.77 x 2.77 x 4.4 in
- Weight : 0.5
Additional Information
NEMA locking configuration; ratings per model
