Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock device
Description
HBL2311S

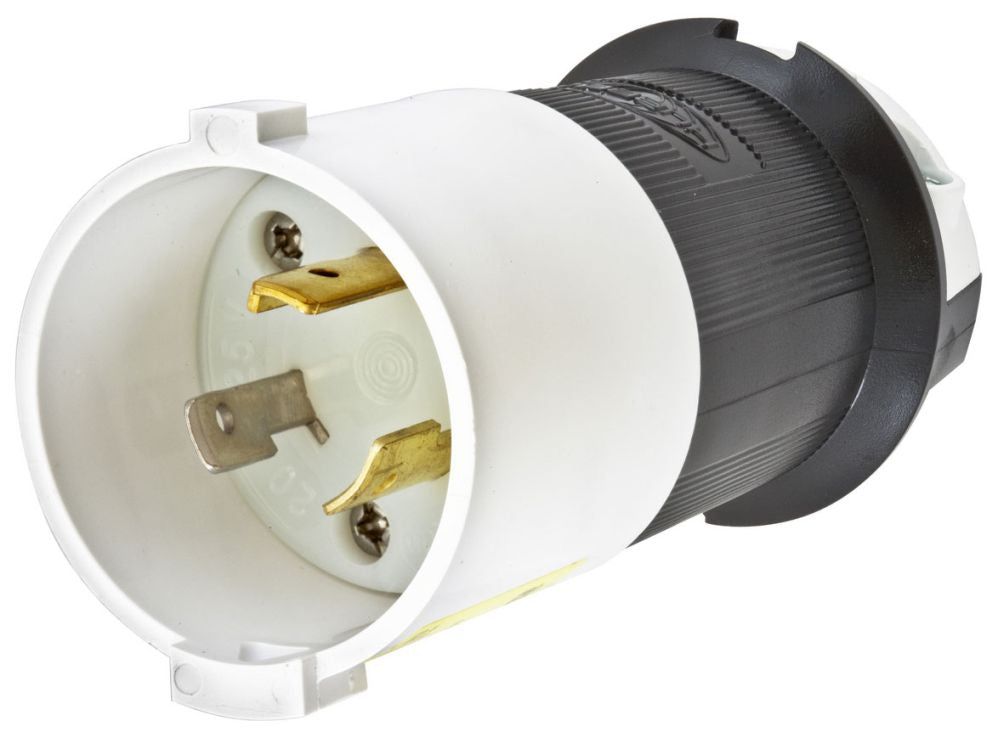

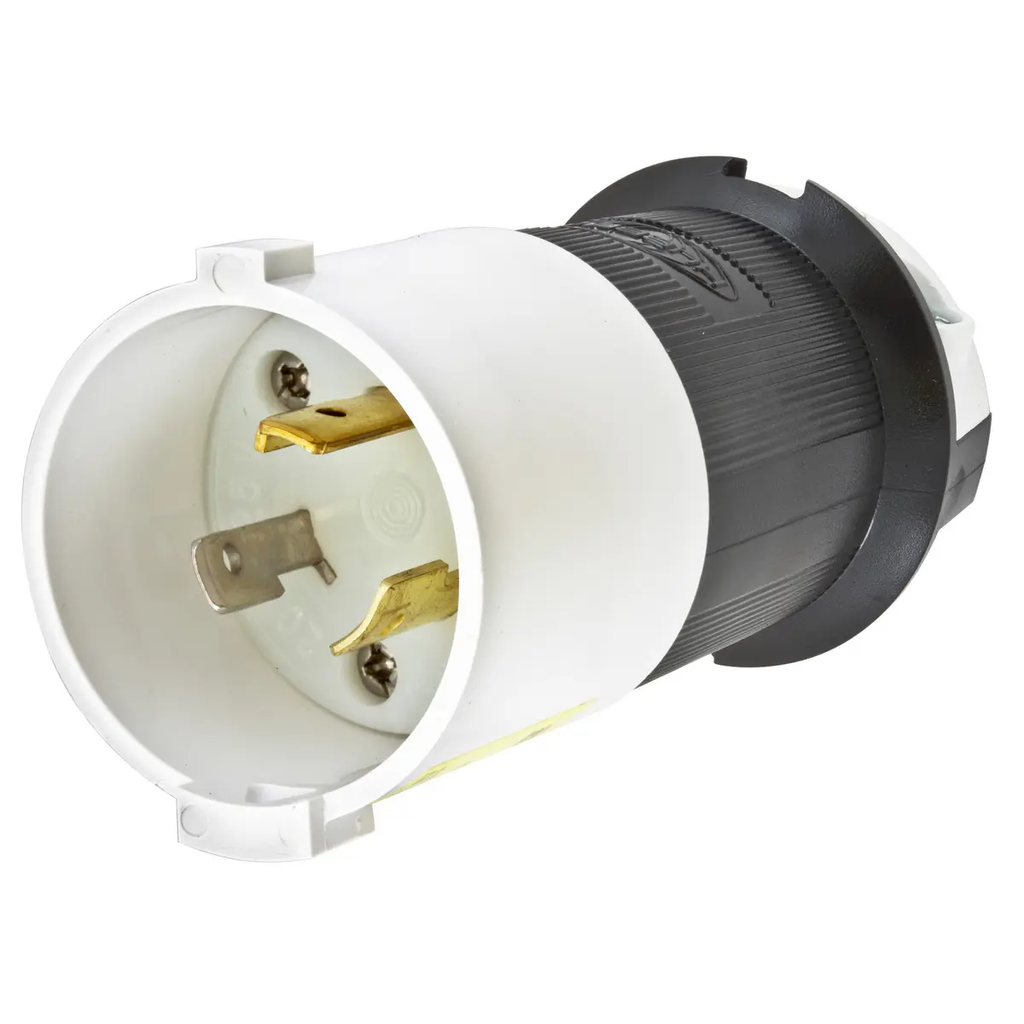

HBL2311S is a Hubbell 20 amp, 125 volt, 2-pole, 3-wire grounding twist-lock safety-shroud male plug designed for secure power connections in industrial and commercial applications.This cable-mounted plug features a black and white nylon body with screw terminal pressure connections. It supports wire sizes from #16 AWG to #8 AWG and is rated for single-phase use with a NEMA L5-20P configuration. The device withstands a dielectric strength of 2,000 volts minimum and operates in temperatures from -40°C to 75°C continuous. Its compact dimensions are approximately 2.26 in x 2.04 in x 4.21 in.
- Key Specifications
- Amperage Rating: 20 A
- Voltage Rating: 125 V AC
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire Grounding
- NEMA Configuration: L5-20P
- Mounting Type: Cable Mounted
- Material: Nylon Body
- Wire Size Range: #16 AWG to #8 AWG
- Dielectric Strength: 2,000 V minimum
- Operating Temperature: -40°C to 75°C
- Phase: Single Phase
- Color: Black and White
Additional Information
NEMA locking configuration; ratings per model
Specifications
- Part Number: HBL2311S
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock device
- Voltage : 125 125
Product Data
- UPC : 783585234069
- GTIN : 00783585234069
- Dimensions : 2.26 in Dia x 4.21 in L 2.26 x 2.04 x 4.21 in
- Weight : 0.3
