Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock device
Description
HBL2310SW

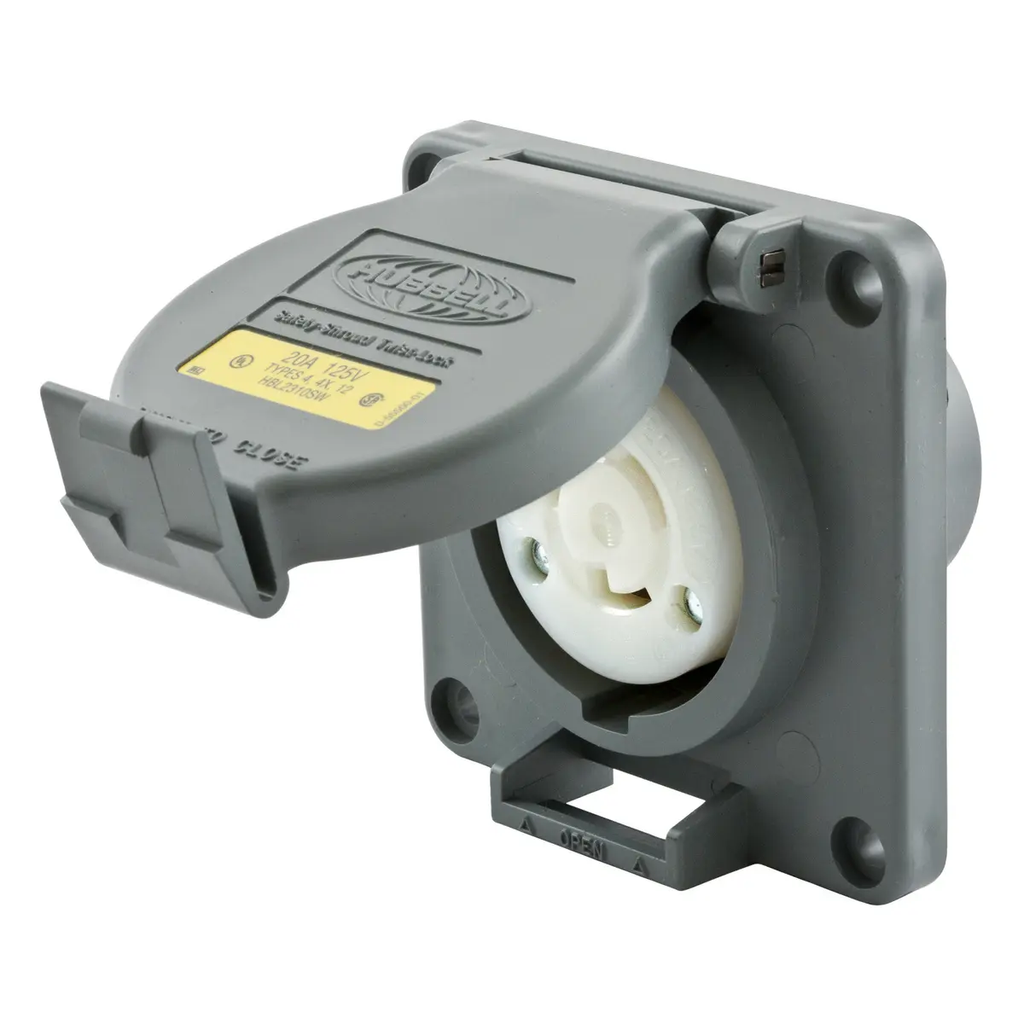

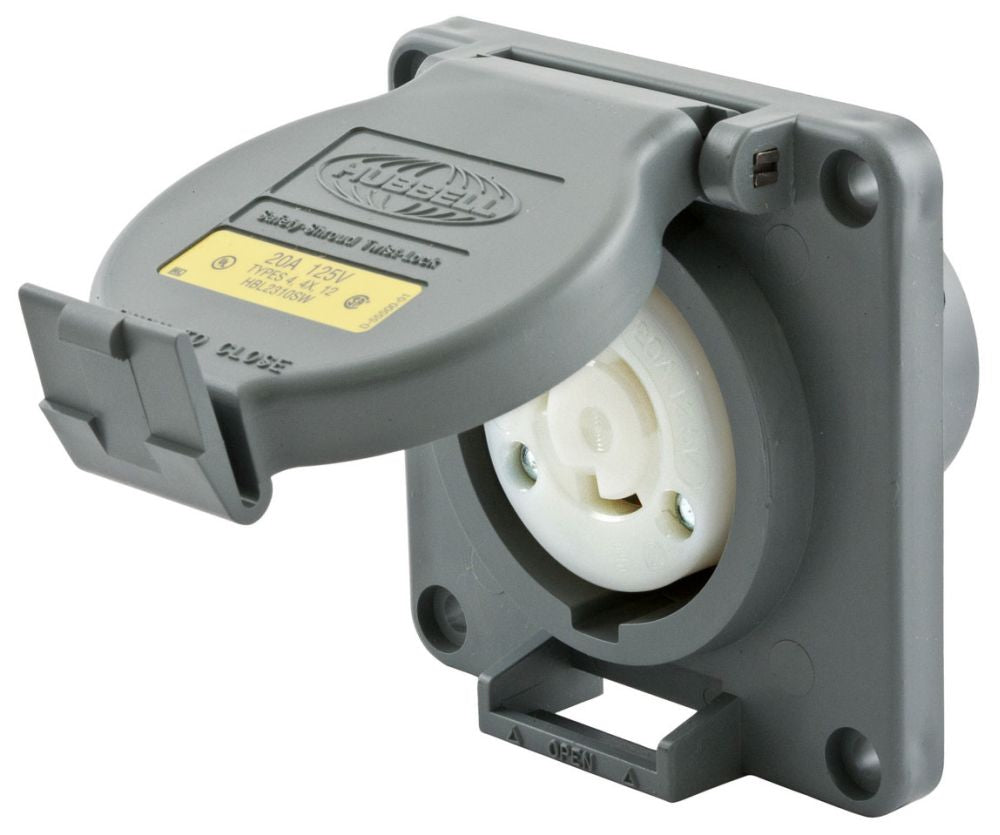

HBL2310SW is a Hubbell 20 Amp, 125 Volt, 2-Pole, 3-Wire grounding watertight safety-shroud twist-lock receptacle designed for industrial applications.
This receptacle features a thermoplastic body with screw mounting and screw terminal connectivity. It is UL listed and CSA certified for Type 4, 4X, and Type 12 enclosures, with a dielectric strength of 2,000V minimum. Rated for 20A and 125VAC, it supports wire sizes from #16 AWG to #8 AWG and operates in temperatures from -40°C to 75°C. The device is designed for single-phase power and includes a safety shroud for enhanced protection in wet or harsh environments.
- Key Specifications
- Amperage Rating: 20A
- Voltage Rating: 125V AC
- Number of Poles: 2
- Number of Wires: 3 (Grounding)
- Mounting Type: Screw Mounting
- Material: Thermoplastic
- Connectivity: Screw Terminals
- Interrupt Rating: Certified for full rated current interrupting
- Dielectric Strength: 2,000V minimum
- Operating Temperature: -40°C to 75°C
- Certifications: UL Listed, CSA Certified Type 4, 4X, 12
- Configuration: NEMA L5-20R Twist-Lock
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
NEMA locking configuration; ratings per model
Specifications
- Part Number: HBL2310SW
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock device
- Voltage : 125 125
Product Data
- UPC : 783585231006
- GTIN : 00783585231006
- Dimensions : 3.75 in H x 3.75 in W x 2.69 in D 3.75 x 3.75 x 2.69 in
- Weight : 0.3
