Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock device
Description
HBL2310

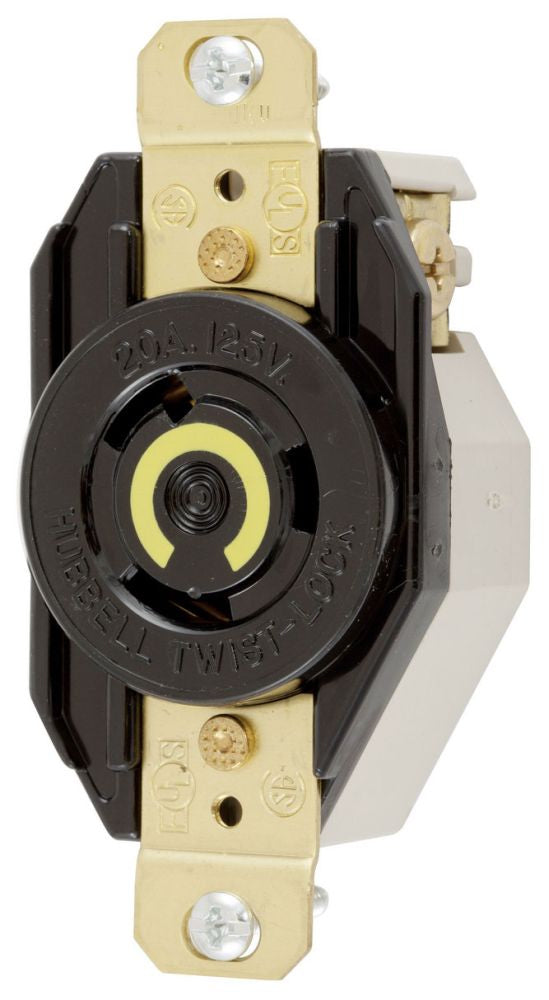

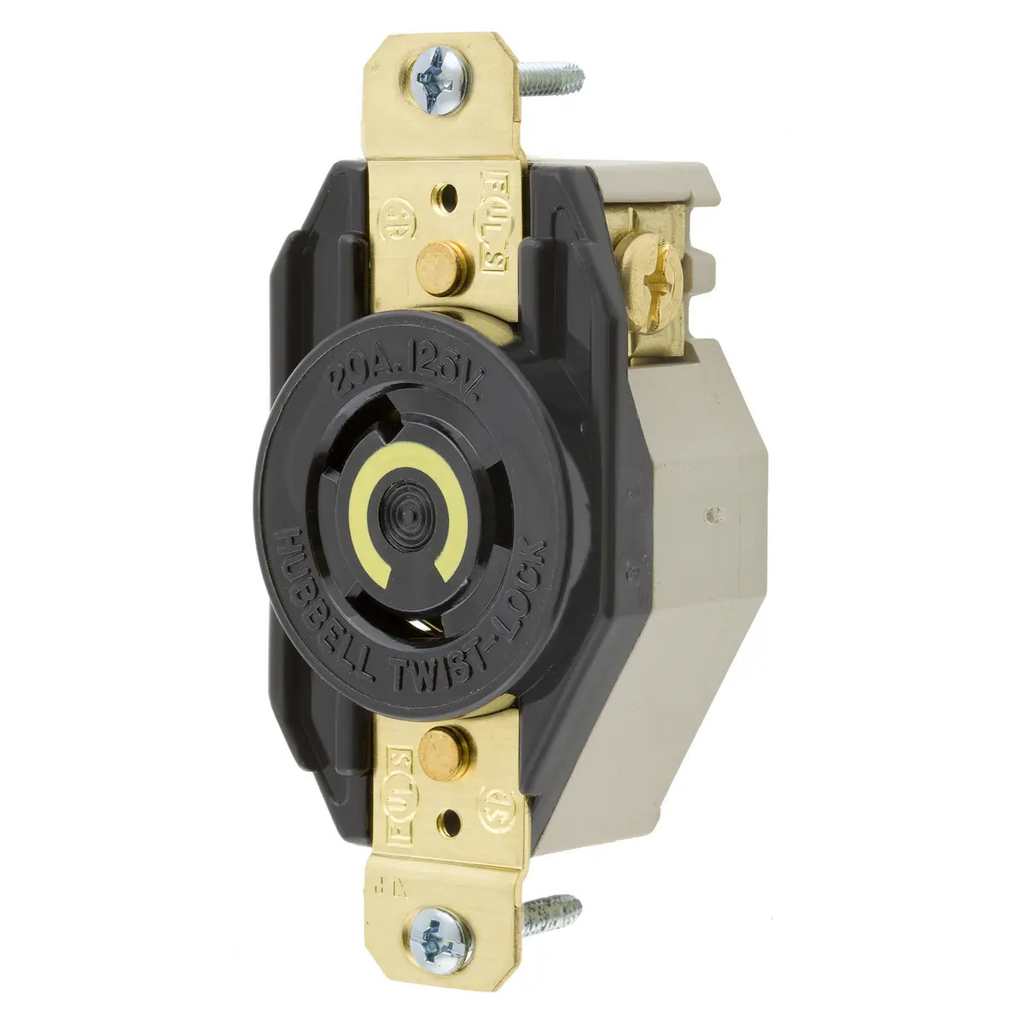

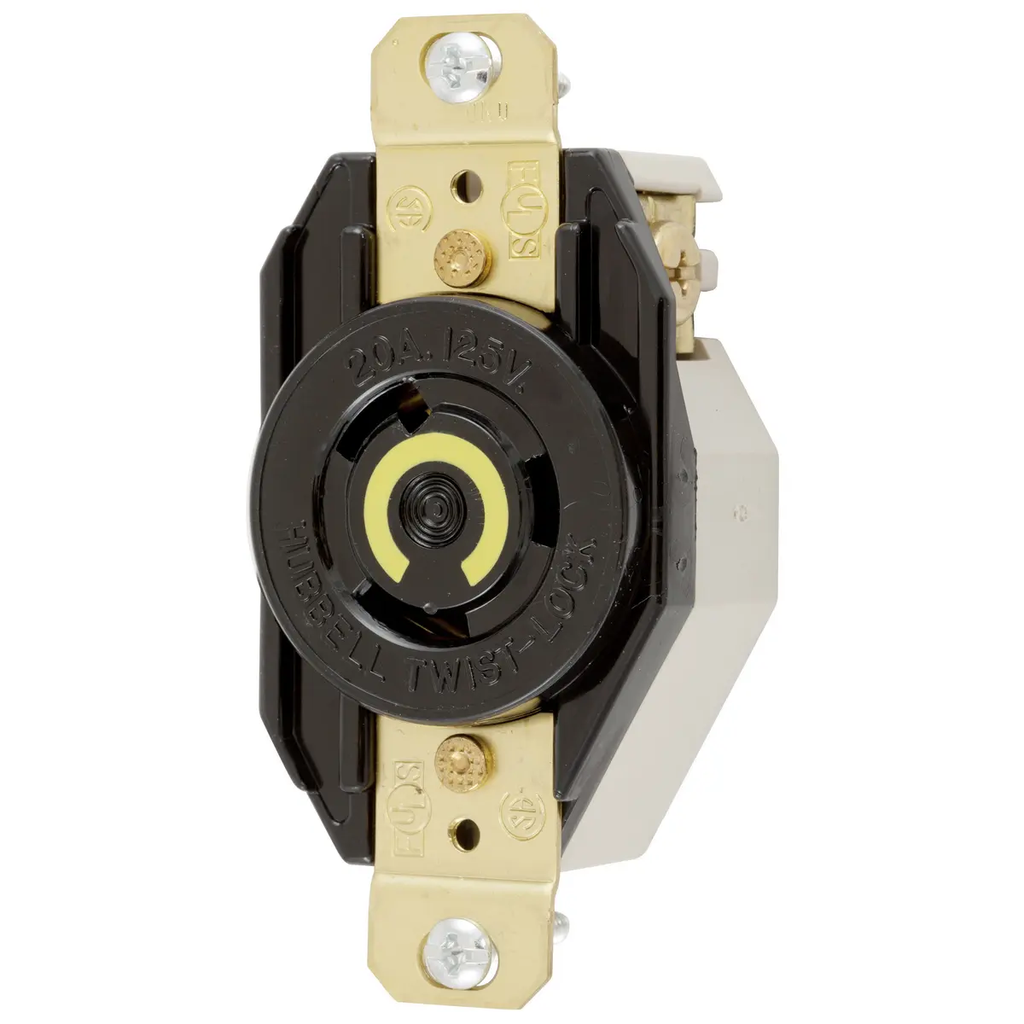

HBL2310 is a Hubbell 20A 125V single flush locking receptacle with a durable nylon face and screw mounting.This industrial-grade receptacle features a 2-pole, 3-wire grounding design rated for 20 amps and 125 volts AC. It includes a high-impact nylon face, brass mounting and grounding system for corrosion resistance, and supports back and side wiring with screw terminals. The device is NEMA L5-20R rated and suitable for continuous operation from -40 to 75 degrees Celsius. It meets UL 498 and CSA C22.2 No.42 certifications.
- Key Specifications
- Amperage Rating: 20 A
- Voltage Rating: 125 VAC
- Poles: 2
- Wires: 3 (Grounding)
- Mounting Type: Screw Mount
- Material: Nylon Face, Brass Contacts and Mounting
- NEMA Rating: L5-20R
- Operating Temperature: -40 to 75°C
- Terminal Type: Screw
- Certifications: UL 498, CSA C22.2 No.42
- Horsepower Rating: 1 hp
- Wire Size: #16 AWG to #8 AWG
Additional Information
NEMA locking configuration; ratings per model
Specifications
- Part Number: HBL2310
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock device
- Family : HBL
- Voltage : 125 125
Product Data
- UPC : 783585235509
- GTIN : 00783585235509
- Dimensions : 3.28 in H x 1.7 in W x 1.23 in D 3.28 x 1.7 x 1.23 in
- Weight : 5.19
