Product Info
- Manufacturer:Hubbell
- Sub-Category:Industrial device cover / plate
Description
HBL20444B

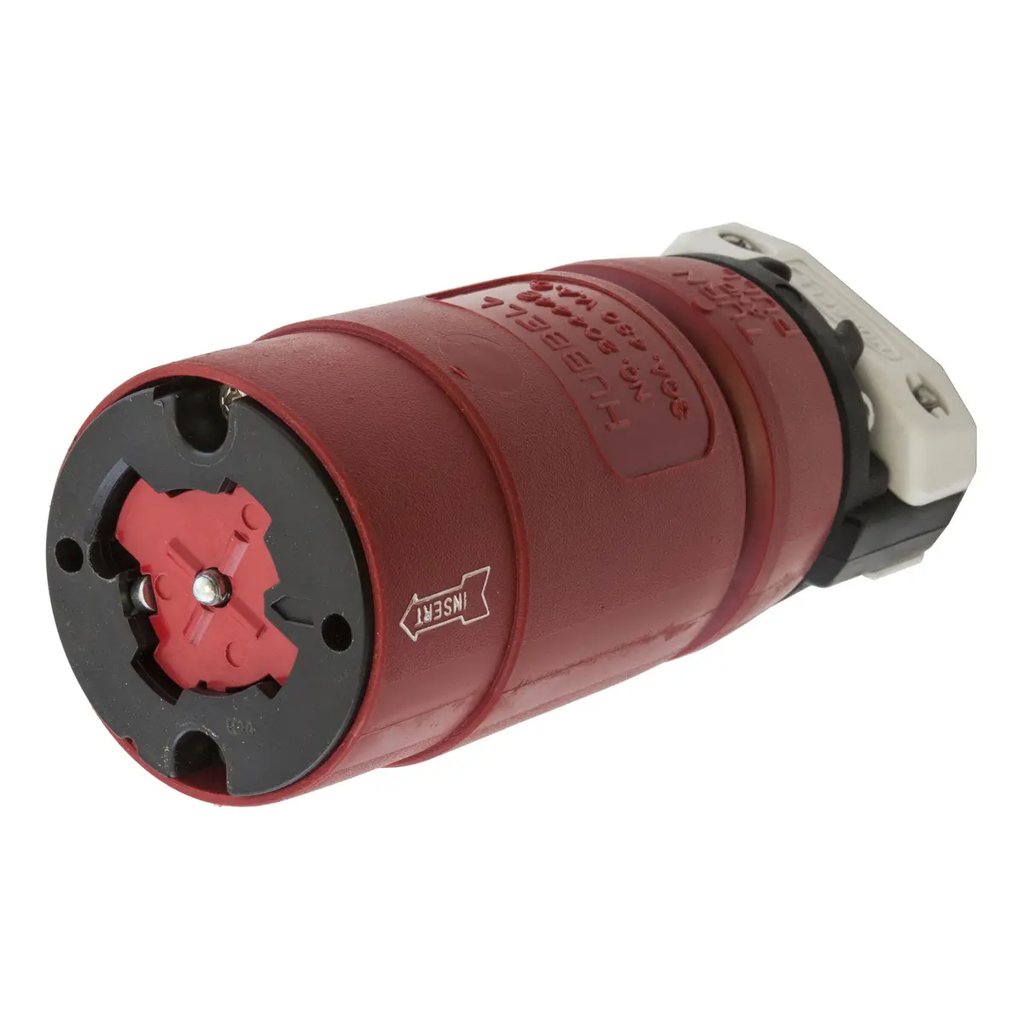

HBL20444B is a Hubbell 30 amp, 480 volt AC, 3-pole 4-wire locking connector designed for industrial applications.This connector features a durable nylon housing with thermoset interior, suitable for cord mounting. It supports wire sizes from #10 AWG to #6 AWG and a cable diameter range of 0.700 to 1.200 inches. Rated for 30 amps and 480 volts AC, it includes pressure terminal screws and withstands dielectric strength of 2000 volts minimum. The device is impact resistant and rated for continuous operation from -40°C to 75°C. It is a non-NEMA style connector with 3 poles and 4 wires, ideal for 3-phase delta power systems.
- Key Specifications
- Amperage: 30A
- Voltage: 480V AC
- Poles: 3
- Wires: 4
- Material: Nylon housing with thermoset interior
- Mounting Type: Cord Mounted
- Cable Range: 0.700 - 1.200 inches
- Wire Size: #10 AWG to #6 AWG
- Dielectric Strength: 2000V minimum
- Operating Temperature: -40°C to 75°C continuous
- Connector Style: Locking, Non-NEMA
- Impact Resistant
Additional Information
For receptacles/inlets; model specific
Specifications
- Part Number: HBL20444B
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Industrial device cover / plate
- Voltage : 480 480
Product Data
- UPC : 783585017433
- GTIN : 00783585017433
- Dimensions : 16 in Dia x 6 in L 6 x 2.44 x 2.44 in
- Weight : 0.5
