HBL20443 - Hubbell 30A 480V AC 3-Pole 4-Wire Flush Locking Receptacle Non-NEMA Screw Terminal

HBL20443

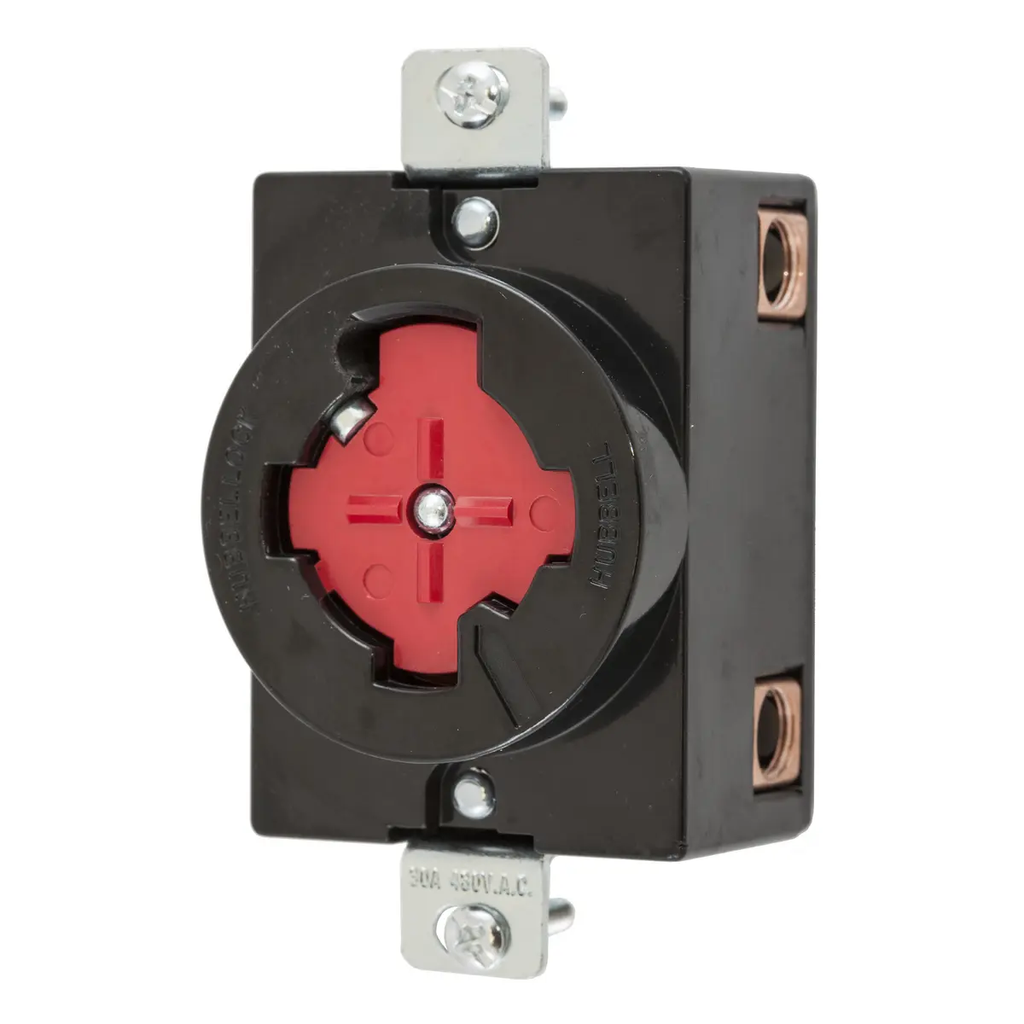

HBL20443 is a Hubbell 30 amp, 480 volt AC, 3-pole 4-wire industrial flush locking receptacle designed for heavy duty applications.This Hubbellock device features a super tough nylon housing with screw terminal connections, rated for 30 amps and 480 VAC in a 3-phase delta configuration. It is non-NEMA, with a flush mounting type and includes a spring-loaded safety shutter for arc protection. The device withstands 2000V dielectric voltage and is CSA certified. It supports #10 to #6 AWG flexible cords and is rated for indoor dry environments with a temperature range from -40°C to 75°C.

Key Specifications
• Amperage: 30 A
• Voltage: 480 VAC
• Poles: 3
• Wires: 4 (including grounding)
• Mounting Type: Flush, screw mount
• Interrupt Rating: Certified for current interrupting at full rated current
• Material: Thermoplastic housing, bronze contacts
• Terminal Type: Screw terminals (#10 - #6 AWG)
• Color: Red/Black
• Dielectric Voltage: 2000 V minimum
• Certifications: CSA Certified File #LR16215
• Operating Temperature: -40°C to 75°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

For receptacles/inlets; model specific

Specifications

• Part Number: HBL20443
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Industrial device cover / plate
• Family : HBL
• Voltage : 480 480

Product Data

• UPC : 783585017419
• GTIN : 783585017419
• Dimensions : 3.28 in H x 1.94 in W x 1.75 in D 3.28 x 1.94 x 1.75 in
• Weight : 5.19
